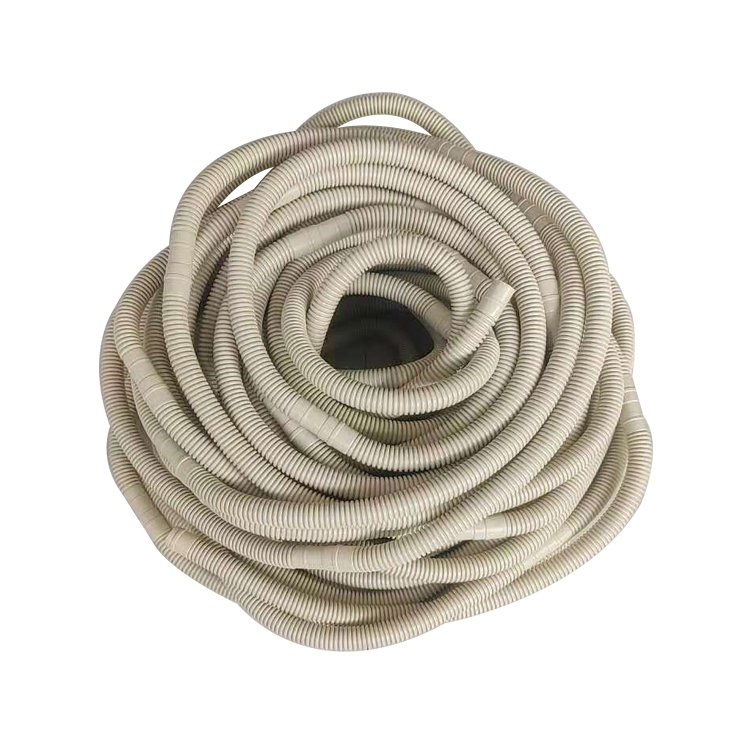

50m UV Resistant Air Conditioner Drain Hose
This 50-meter air conditioner drain hose is made from flexible, UV-resistant PVC. Its corrugated design allows for easy installation and ensures efficient drainage of condensate.
Technical Specifications
Overview
Professional AC Drainage Solution

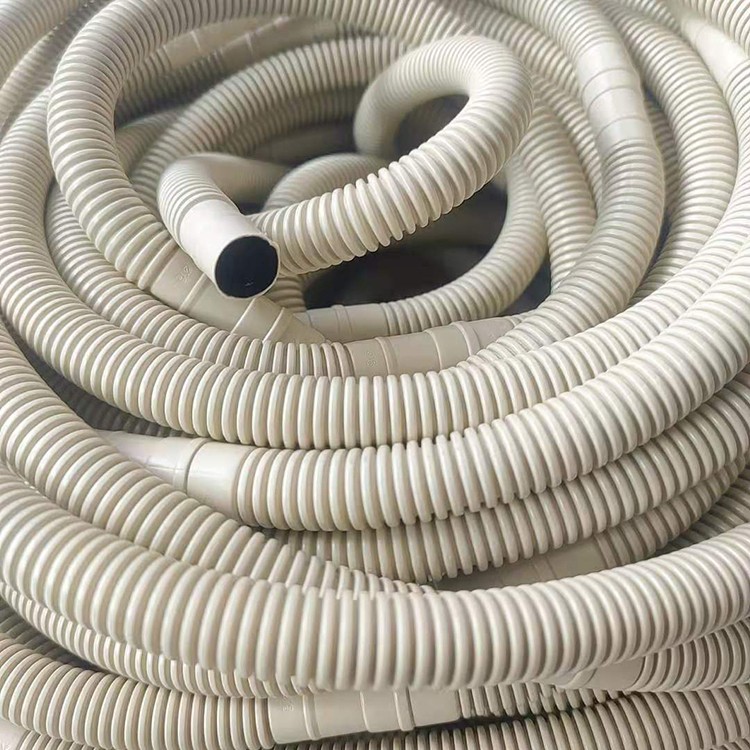

This 50-meter UV-resistant PVC corrugated drain hose is designed for efficient condensate management in residential and commercial HVAC systems. Its double-layer hollow design features a smooth interior for optimal fluid flow and a rugged corrugated exterior for high pressure and impact resistance. Engineered for durability, the pipe is resistant to corrosion from acids, alkalis, and salts while offering excellent flexibility for complex installations.
Key Features
Performance Highlights
50 m
Roll Length
164 ft
Total Length
- Material Properties
- UV ResistantCorrosion ResistantImpact ResistantAnti-ScalingFlexible PVC
Technical Specifications
Model Specifications
| Model | O.D. (mm) | I.D. (mm) | Carton Size (cm) |
|---|---|---|---|
| GH-7004-16 | 19 | 14 | 40x40x20 |
| GH-7004-18 | 21 | 16 | 40x40x21 |
Imperial Dimensions
| Model | O.D. (inch) | I.D. (inch) |
|---|---|---|
| GH-7004-16 | 0.75 | 0.55 |
| GH-7004-18 | 0.83 | 0.63 |
Installation & Usage

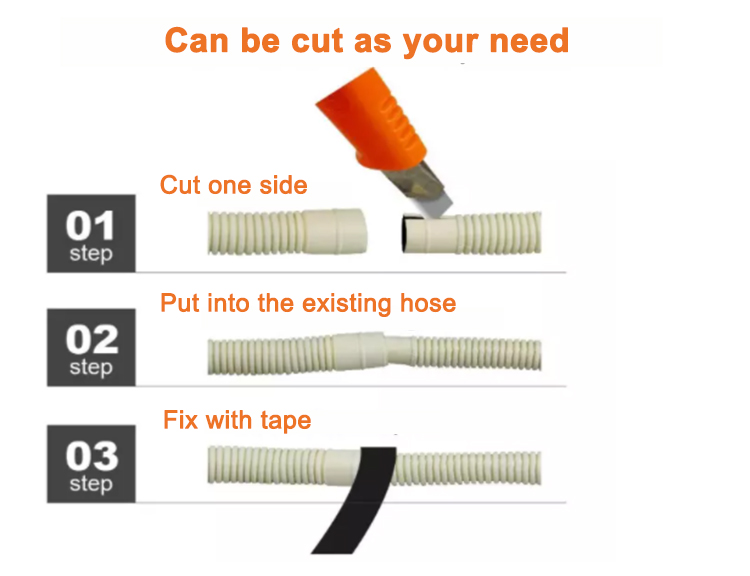

Installation Guide
- Cut the hose to the required length at the designated cutting points
- Insert one side into the existing hose (compatible diameters 16mm/18mm)
- Secure the connection point with tape for a watertight seal
- Route the flexible corrugated pipe around obstacles as needed
- Connector Design
- One side (dia 16mm) can be inserted into the other side (dia 18mm) for secure connection.
Product Variants
Available Hose Types
- Single color corrugated (Standard)
- Double colored corrugated (Enhanced UV protection)
- Plastic transparent (Maximum flexibility)
