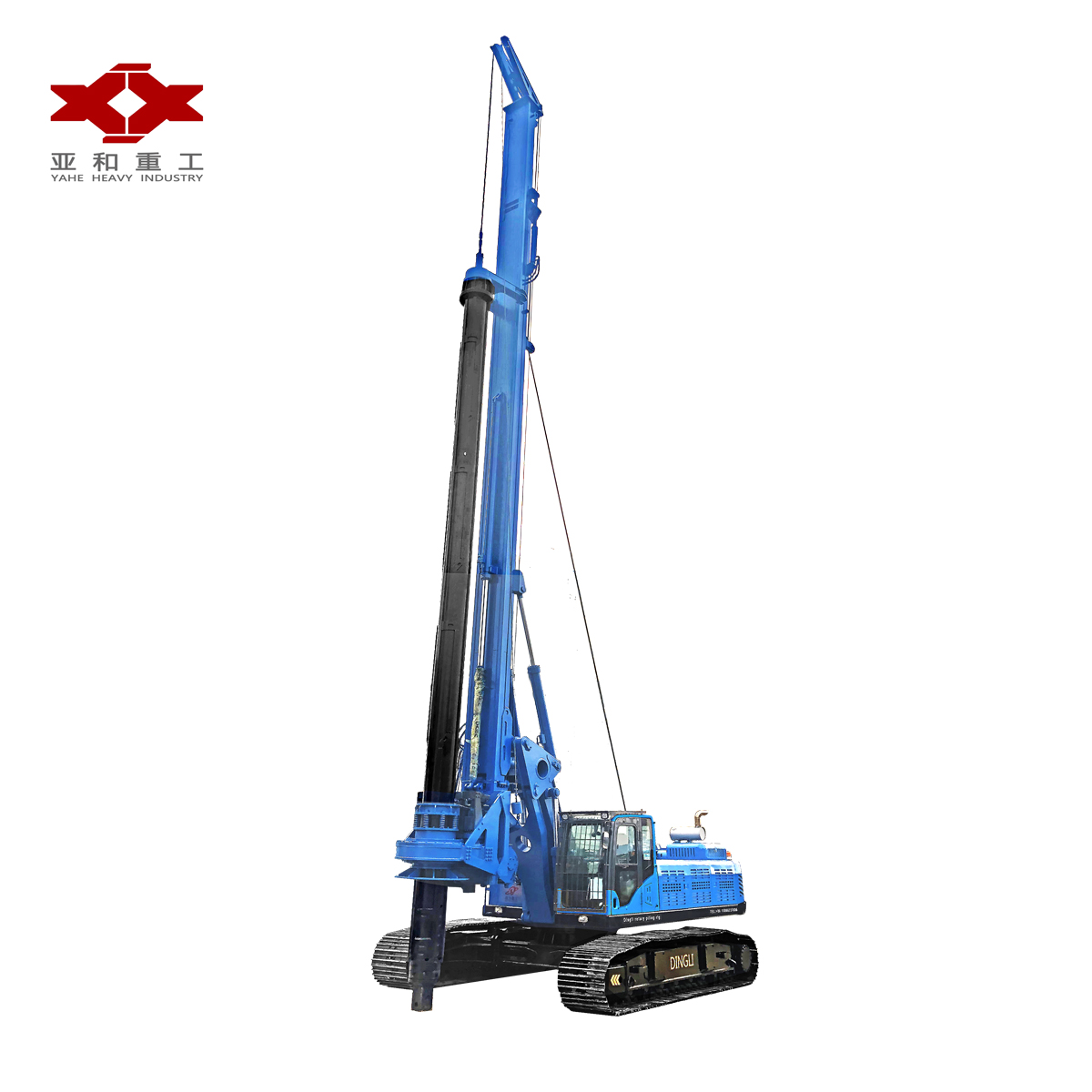

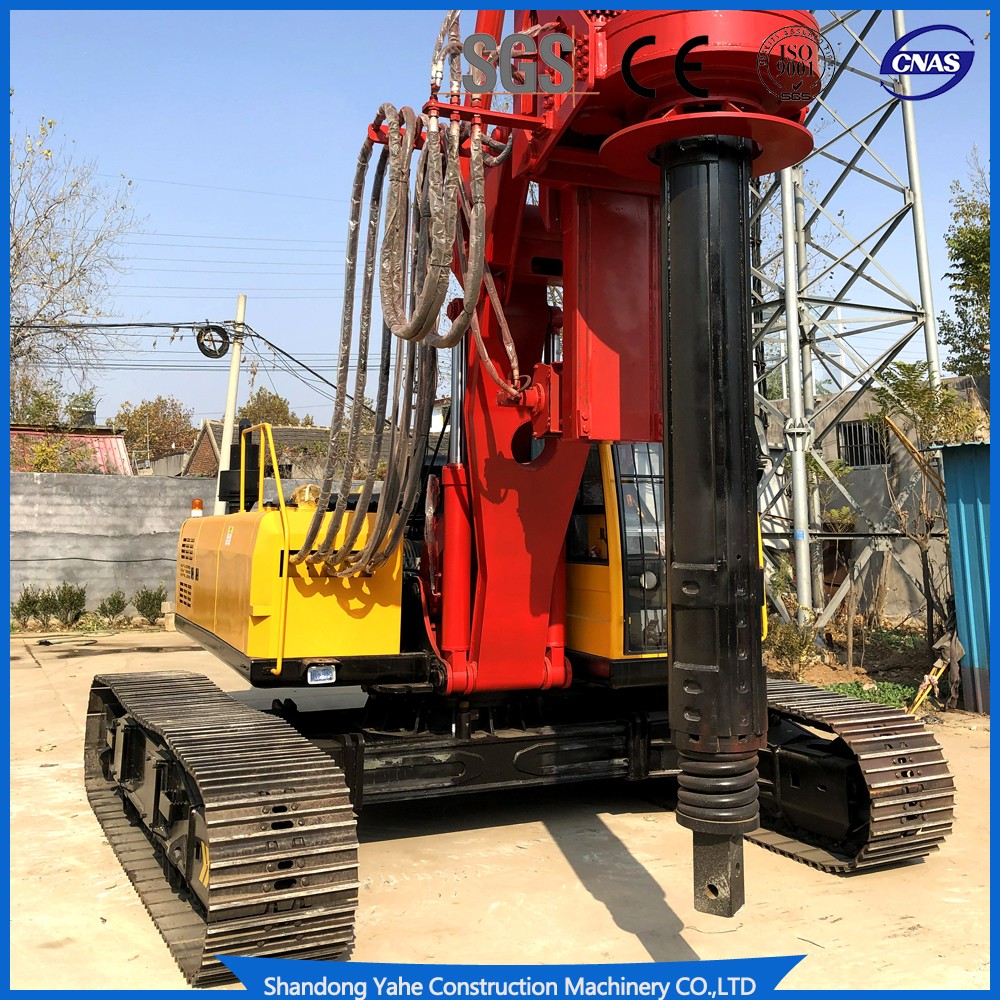

50m Kelly Bar Rotary Drilling Rig
The drilling rig achieves a maximum drilling depth of 45 meters and a drilling diameter from 600-2000mm. Widely used in high-rise construction and port piling, it is equipped with a Cummins engine.
Technical Specifications
Product Overview
Versatile Foundation Solution
This rotary drilling rig is engineered for small to medium-sized foundation construction projects, including highways, bridges, and high-rise buildings. It features a robust design capable of deep hole forming for cast-in-place concrete piles. Equipped with advanced hydraulic systems and a powerful engine, it ensures high efficiency, energy savings, and reliable performance in demanding soil conditions.
Performance
Primary Applications
- Highway Foundation Construction
- Railway Foundation Construction
- Bridge Construction
- Port Foundation Projects
- High-rise Building Foundations
- Maximum Drilling Depth
- 50 m
- Supported Drill Pipe Types
- Friction TypeMechanical Locking
Chassis & Engine
Emission Standard
Euro III
- Chassis Type
- Heavy-duty hydraulic crawler
Hydraulic System
System Features
- Threshold power control
- Negative flow control
- High energy efficiency
Operator Environment
Cab Comfort & Controls
- Noise-proof design
- Adjustable seating
- Air conditioning
- Internal and external lighting
- Color LCD display
Certifications
- Quality Standards
- ISO 9001SGSCNAS
