Technical Specifications
Overview
Reliable 50kW Diesel Power Solution

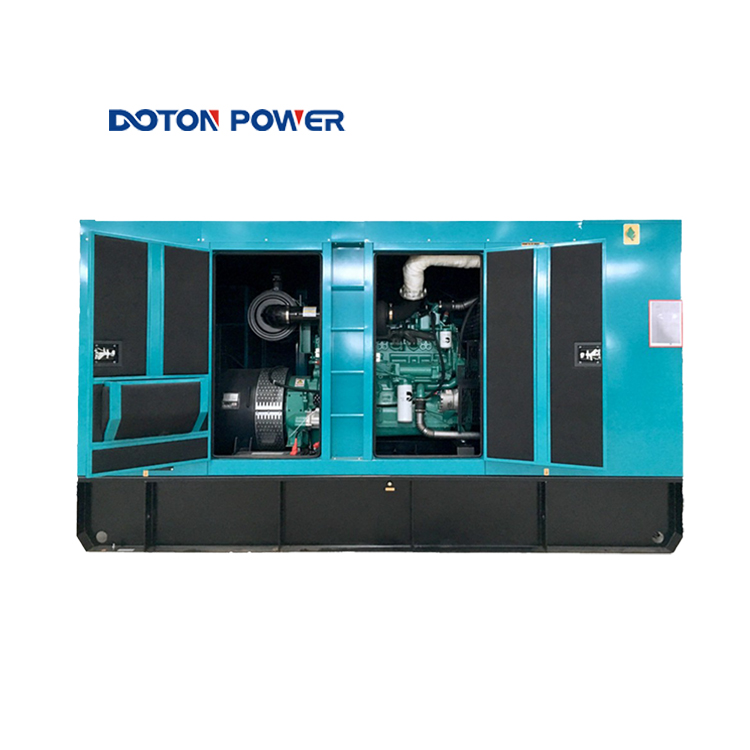

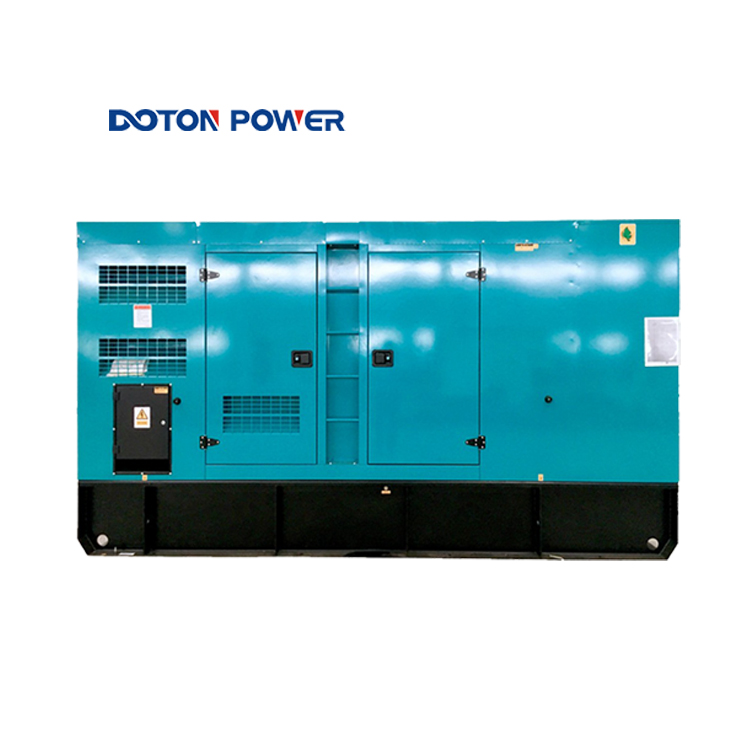

This 50kW (62.5kVA) diesel generator set is engineered for high performance and durability across diverse operational environments. Featuring a robust 4-cylinder engine and a brushless alternator, it provides a stable 400V/230V power supply suitable for both continuous and standby applications. Its versatile design allows for configuration as an open, silent, soundproof, or trailer-mounted unit to meet specific site requirements.
Performance Metrics
Power Ratings
50 kW
Rated Power
62.5 kVA
Rated Apparent Power
55 kW
Standby Power
Technical Specifications
- Model Identifier
- DCH50S-3
- Rated Voltage
- 400V / 230V
- Frequency Support
- 50Hz60Hz
Engine & Alternator
Engine Specifications
| Component | Detail |
|---|---|
| Engine Model | 4BTA3.9-G2 |
| Net Power | 55kW |
| Fuel Consumption | 215g/kw·h |
| Alternator Type | Brushless |
| Connection | 3-phase, 4-wire |

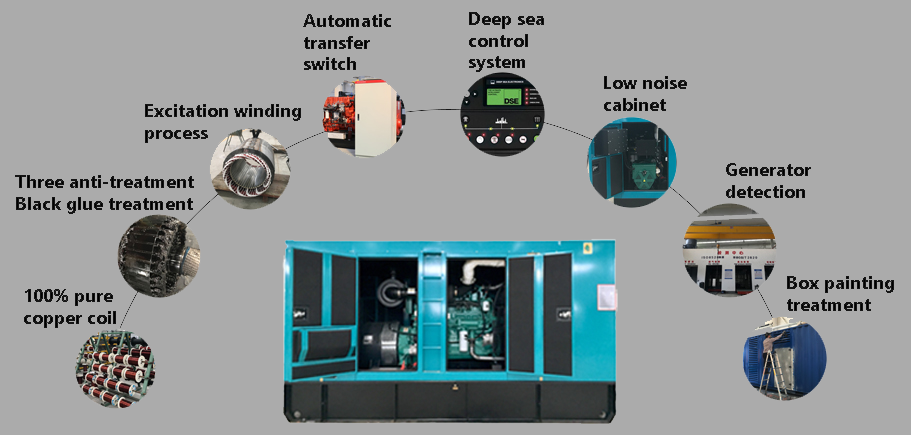

Construction Features
Advanced Build Features
- 100% pure copper coil for maximum efficiency
- Excitation winding process
- Three-anti treatment with black glue for enhanced durability
- Box painting treatment for environmental protection
- Low noise cabinet design
Control System
- Control Unit
- Auto PLC Controller with Generator Detection
- Safety & Automation
- Automatic Transfer SwitchDeep Sea Control SystemReal-time Detection
Applications
Recommended Applications
- Mines and Oil Fields
- Hospitals and Schools
- Construction Sites
- Ports and Hotels
- Commercial Buildings
Compliance
Quality Standards
CE CertifiedISO 9001 Quality ManagementOccupational Health & Safety Certified
