50kVA Diesel Power Generator Set

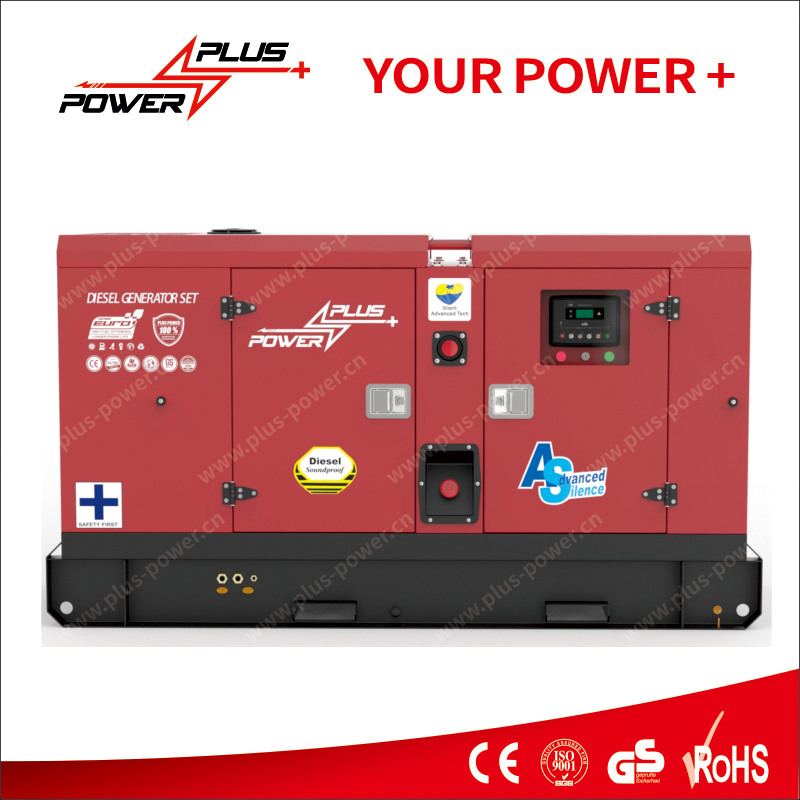

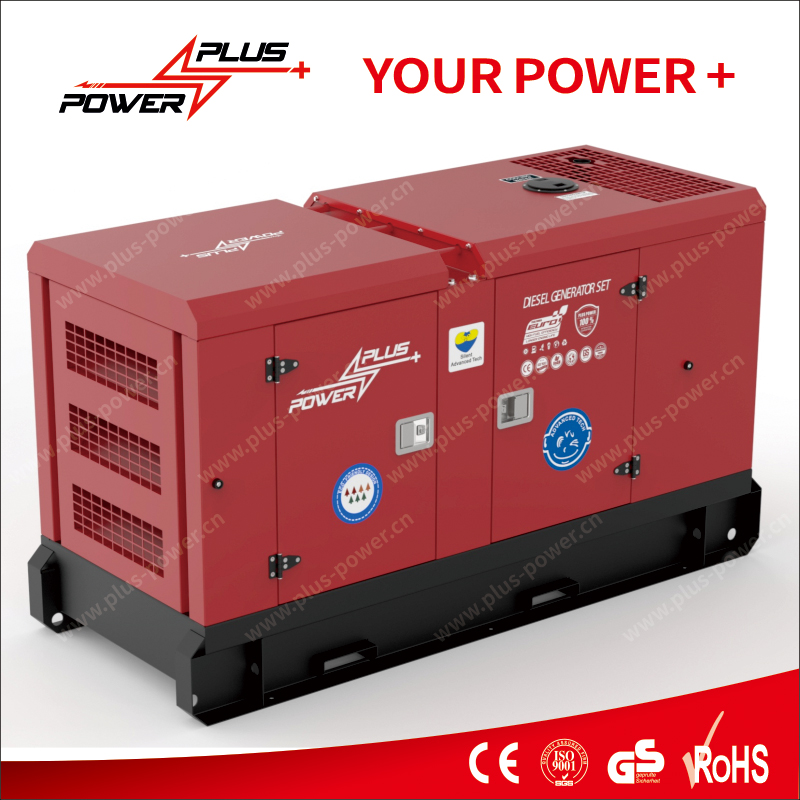

This 50kVA diesel generator set provides a robust and reliable power solution for various applications. It features a diesel engine coupled with an alternator, enclosed in a soundproof canopy to minimize noise.
Technical Specifications
Overview
Reliable 50kVA Diesel Power Solution
This 50kVA diesel generator set is engineered for high-performance power generation in industrial, commercial, and residential environments. Featuring a water-cooled, four-stroke engine and a brushless synchronous alternator, it provides stable electricity with advanced automatic voltage regulation. The unit is housed in a sound-attenuated, weather-protective enclosure, ensuring quiet operation below 70 dBA while protecting internal components from harsh tropical conditions.
Performance Metrics
Core Performance
50 kVA
Prime Power
70 dBA
Noise Level @ 7m
10 hours
Fuel Autonomy
Engine Specifications
Starting System
- Engine driven dynamo
- Lead acid battery
- Battery charger
- Engine Type
- Four-stroke, multi-cylinder, water-cooled, direct fuel injection
- Cooling System
- Vertical fan cooled sectional radiator rated for tropical conditions
Alternator Details
Alternator Features
- Synchronous, four pole
- Brushless excitation
- Self-exciting and self-regulating
- Class H insulation
- IP-22 protection
- Overload Capacity
- 10% engine overload for 1 hour in any 12 hour period
Control & Monitoring
Control Panel Functions
- OFF/AUTO/MANUAL/TEST modes
- Selectable Multifunction meter
- Engine control monitor
- Alternator voltage monitor
- Engine hours run counter
- Voltmeter and Ammeter
- Combined frequency and tachometer
Safety & Protection
- Automatic Shutdown Triggers
- Low Oil PressureHigh Engine TemperatureLow Fuel LevelOver/Under SpeedBattery Charge Fail
Enclosure & Physical
Enclosure Features
- Sound attenuated housing
- Hinged access doors with stainless steel hinges
- Key locking door latches
- Panel viewing window
- Exhaust silencer with rain cap
- Forklift pockets within base frame
Compliance & Quality
Standards & Certifications
IEC StandardsIEC 60034ISO 3046/11CEROHSSGS
Warranty
- Warranty Period
- One year or 1000 hours of operation (whichever occurs first)
