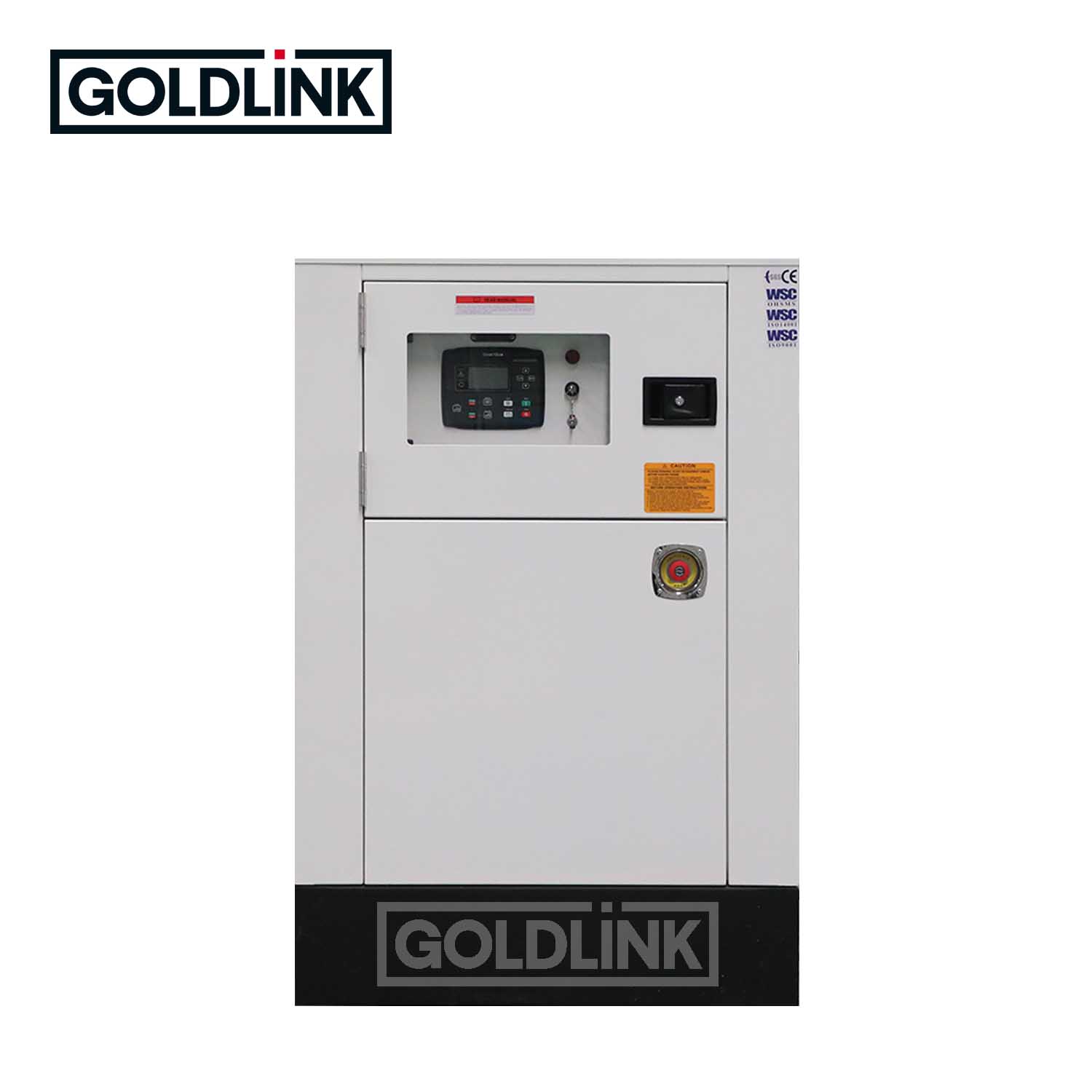

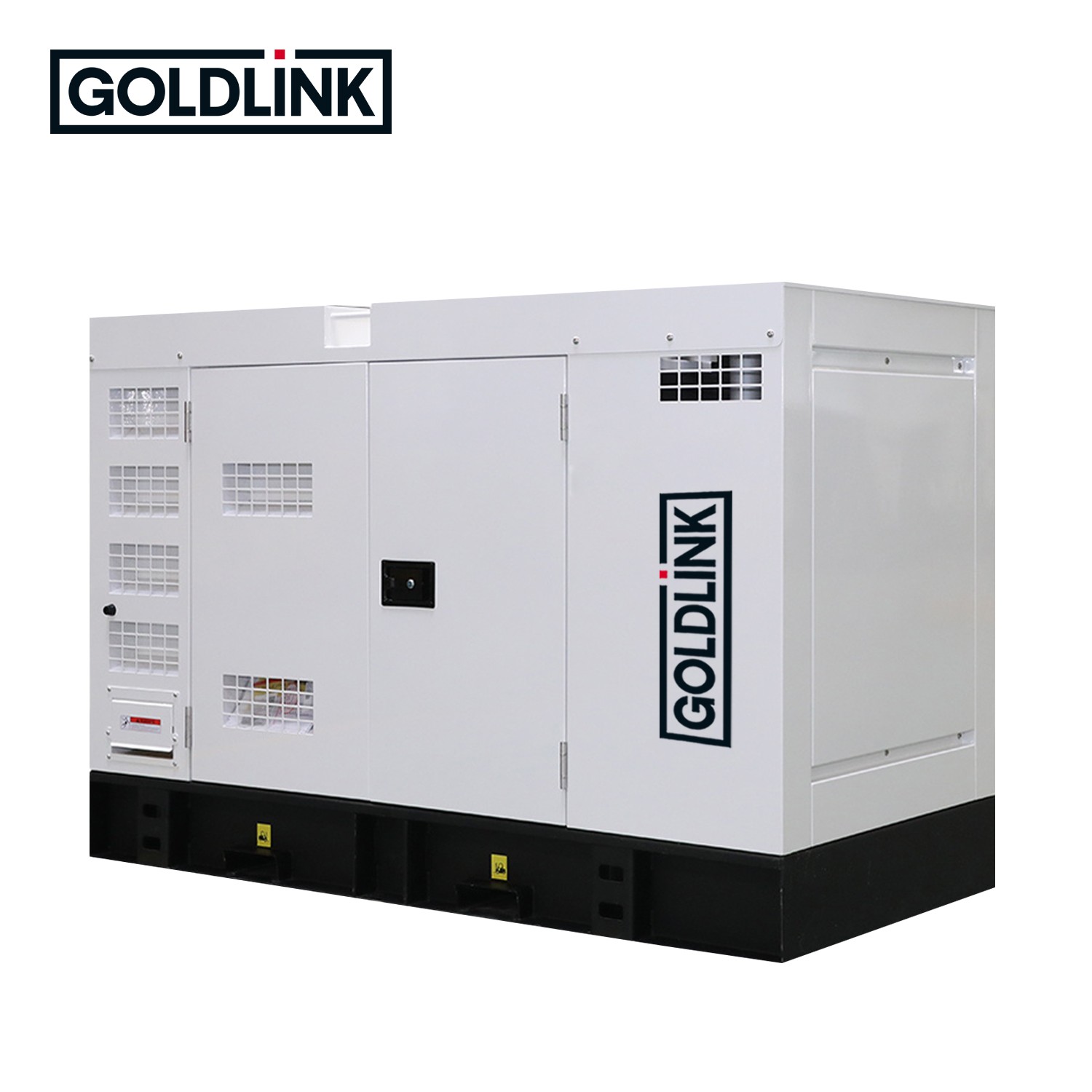

50kVA 40kW Soundproof Diesel Generator
This soundproof diesel generator delivers 50kVA of power, equivalent to 40kW. The generator is enclosed in a sound-attenuated canopy made of galvanized metal sheet.
Technical Specifications
Overview
High-Performance Soundproof Power Solution
This 50kVA diesel generator is engineered for reliable power delivery in noise-sensitive environments, featuring a robust sound-attenuated canopy made from 1.8mm galvanized steel. Powered by a high-efficiency 4-cylinder turbocharged engine, it provides a stable 40kW prime power output suitable for industrial, commercial, and emergency backup applications. The system is designed for durability and ease of maintenance with integrated drainage points and a comprehensive digital control interface.
Performance Metrics
Power Ratings
50 kVA
Prime Power
40 kW
Prime Power
55 kVA
Standby Power
44 kW
Standby Power
Engine Specifications
Engine Technical Data
| Feature | Specification |
|---|---|
| Engine Type | 4-cycle, In-line, 4-cylinder |
| Aspiration | Turbocharged & Aftercooled |
| Displacement | 3.9 L |
| Bore x Stroke | 102 * 120 mm |
| Compression Ratio | 17.3:1 |
| Governor Type | Electronic |
| Rated Speed | 1500 rpm |
Alternator & Electrical
Electrical Characteristics
| Parameter | Value |
|---|---|
| Voltage | 230V / 400V (Adjustable) |
| Frequency | 50 Hz |
| Phase | 3 Phase, 4 Wire |
| Power Factor | 0.8 |
| Voltage Regulation | ±0.5% |
| Insulation Class | H |
| Protection Rating | IP23 |
| Efficiency | 88.2% |
Physical Construction
Enclosure & Build
- Soundproof canopy made of 1.8mm galvanized steel plates
- Anti-vibration mountings between engine/alternator and base frame
- Integrated 8-hour capacity fuel tank base (100L)
- Residential muffler and exhaust bellows for noise reduction
- High-quality powder coating for weather protection
Operational Systems
Operational Data
| System | Capacity/Value |
|---|---|
| Fuel Consumption (100% Load) | 12.9 L/H |
| Lube Oil Capacity | 8.5 - 9.5 L |
| Coolant Capacity (Engine) | 8.3 L |
| Radiator Cooling | Up to 50°C ambient |
| Electric System | 12V / 24V DC |
Dimensions & Weight
Physical Dimensions
| Metric | Value |
|---|---|
| Length | 2250 mm |
| Width | 1000 mm |
| Height | 1490 mm |
| Gross Weight | 1300 kg |
Standard Components
- Included Components
- LCD Control PanelAMF FunctionCircuit BreakerBatteriesBattery ChargerFuel Water SeparatorO&M ManualFactory Test Certificate
Certifications
Compliance & Standards
CEISO 9001ISO 14001OHSAS
