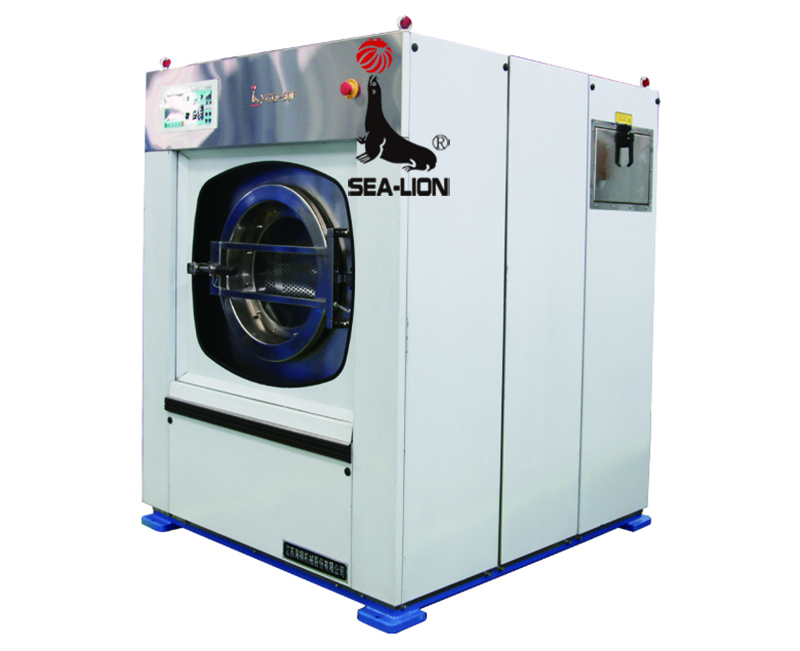

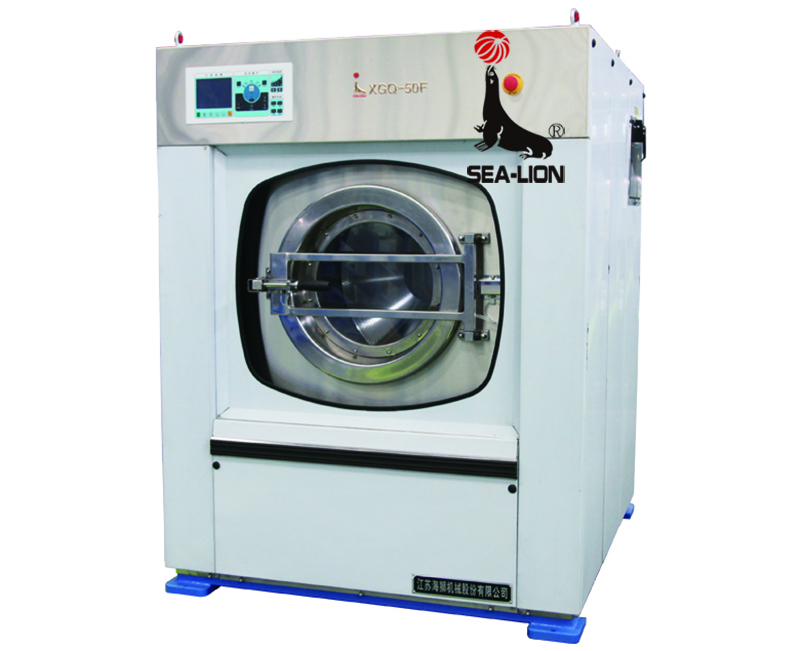

50KG Full Suspension Automatic Washer Extractor
This 50KG full suspension automatic washer extractor is designed for heavy-duty laundry applications. It features a stainless steel drum and robust construction for durability and longevity.
Technical Specifications
Overview
High-Performance Industrial Laundry Solution
This 50KG Full Suspension Automatic Washer Extractor is engineered for heavy-duty applications in hotels, hospitals, and commercial laundries. It features a high degree of automation with a computer-controlled touch display for precise cycle management. The advanced full suspension design ensures excellent vibration isolation and stable operation, even during high-speed extraction phases.
Key Performance Metrics
Key Metrics
50 kg
Rated Capacity
750 rpm
Max Extraction
45 min
Cycle Time
Technical Specifications
Drum Dimensions
| Component | Diameter (mm) | Length (mm) |
|---|---|---|
| Inner Drum | 990 | 660 |
| Outer Drum | 1,060 | 754 |
Operating Speeds
- Washing/Balancing: 40/60 rpm
- Medium Extraction: 375 rpm
- High Extraction: 750 rpm
Power & Utilities
Connection Sizes
- Steam Pipe: DN20
- Cold/Hot Water Inlet: DN25
- Motor Power (VFD)
- 4 kW
- Electric Heater Power
- 45 kW
Resource Consumption
- Water Consumption per Load
- 750 kg
- Steam Consumption per Load
- 30 kg
Operating Requirements
Pressure Requirements
| Type | Range (MPa) |
|---|---|
| Water Pressure | 0.2-0.4 |
| Steam Pressure | 0.4-0.6 |
| Compressed Air | 0.4-0.6 |
Physical Characteristics
- Dimensions (L/W/H)
- 1440 x 1320 x 1700 mm
- Machine Weight
- 1550 kg
- Construction Materials
- Stainless Steel DrumStainless Steel CabinetCorrosion Resistant
Control System
Control Features
Touch DisplayProgrammable CyclesTemperature ManagementAutomatic Chemical Injection
