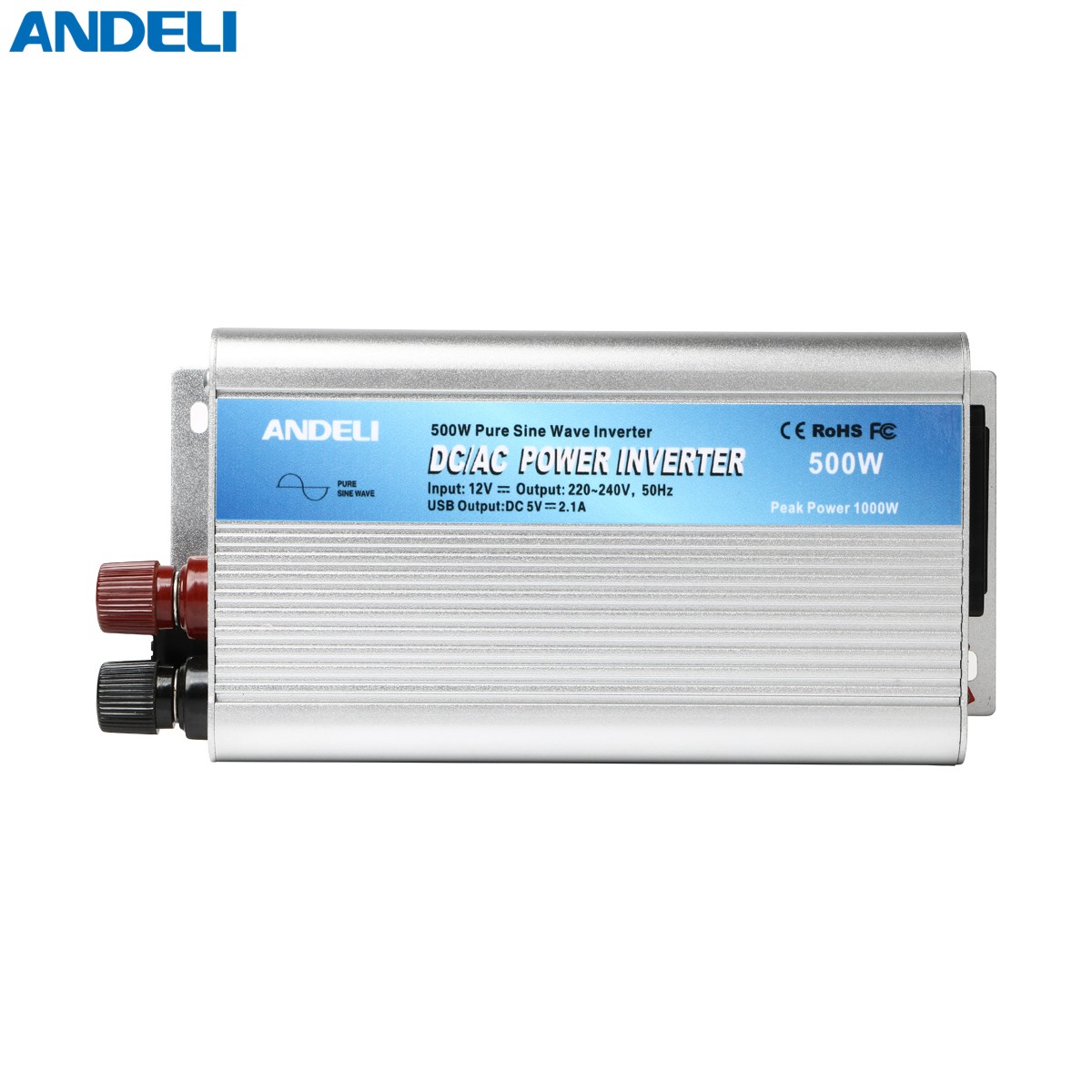

500W Pure Sine Wave Power Inverter DC 12V to AC 220-240V
This 500W pure sine wave inverter converts 12V DC input to 220-240V AC output at 50Hz. It features a USB output of DC 5V - 2.1A and a peak power capacity of 1000W.
Technical Specifications
Product Overview
High-Efficiency Pure Sine Wave Power Inverter

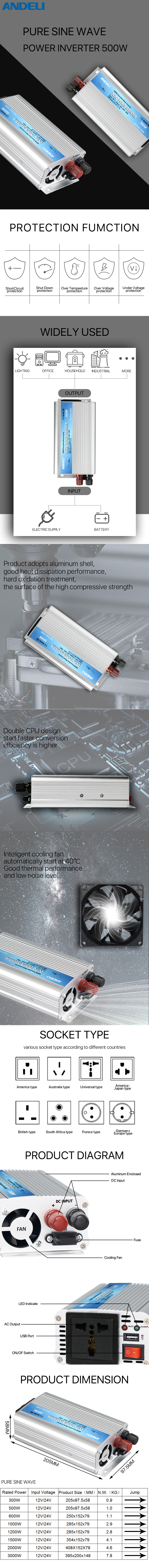

This 500W pure sine wave inverter is engineered to convert 12V DC input into a stable 220-240V AC output, providing clean power suitable for sensitive electronics. It features a robust aluminum enclosure for superior heat dissipation and durability, alongside advanced protection mechanisms including short circuit, over-temperature, and voltage regulation. With its intelligent double CPU design and automatic cooling system, it ensures reliable performance and high conversion efficiency for household, office, and industrial applications.
Technical Specifications
Power Ratings
500 W
Rated Power
1,000 W
Peak Power
- Input Voltage
- 12 V
- Output Voltage
- 220-240
- Output Frequency
- 50 Hz
- USB Output
- DC 5V - 2.1A
- Cooling System
- Intelligent fan activates automatically at 40°C
Physical Characteristics
- Dimensions
- 205 x 97.5 x 58 mm
- Net Weight
- 1 kg
- Housing Material
- Aluminum alloy with hard oxidation treatment
Compliance & Safety
Protection Features
- Short circuit protection
- Over-temperature protection
- Over-voltage protection
- Under-voltage protection
- Certifications
- CERoHSFCC
