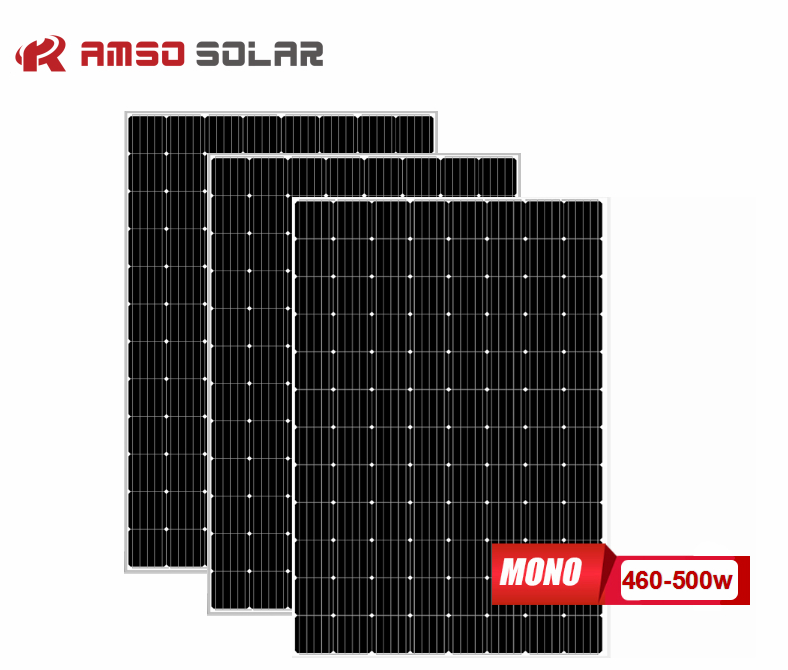

500W Monocrystalline Solar Panel
This high-efficiency monocrystalline solar panel delivers a power output of 500W. It is designed for durability and reliable energy generation in both grid-tied and off-grid solar systems.
Technical Specifications
Overview
High-Efficiency 500W Monocrystalline Panel
This high-efficiency monocrystalline solar panel is engineered for optimal energy conversion in both residential and commercial applications. Featuring 96 cells, the panel is built with high-transparency tempered glass and a corrosion-resistant aluminum frame to ensure long-term durability and performance in various environmental conditions. With advanced cell technology designed to maximize sunlight absorption, this unit offers reliable power output and is compatible with grid-tied and off-grid systems.

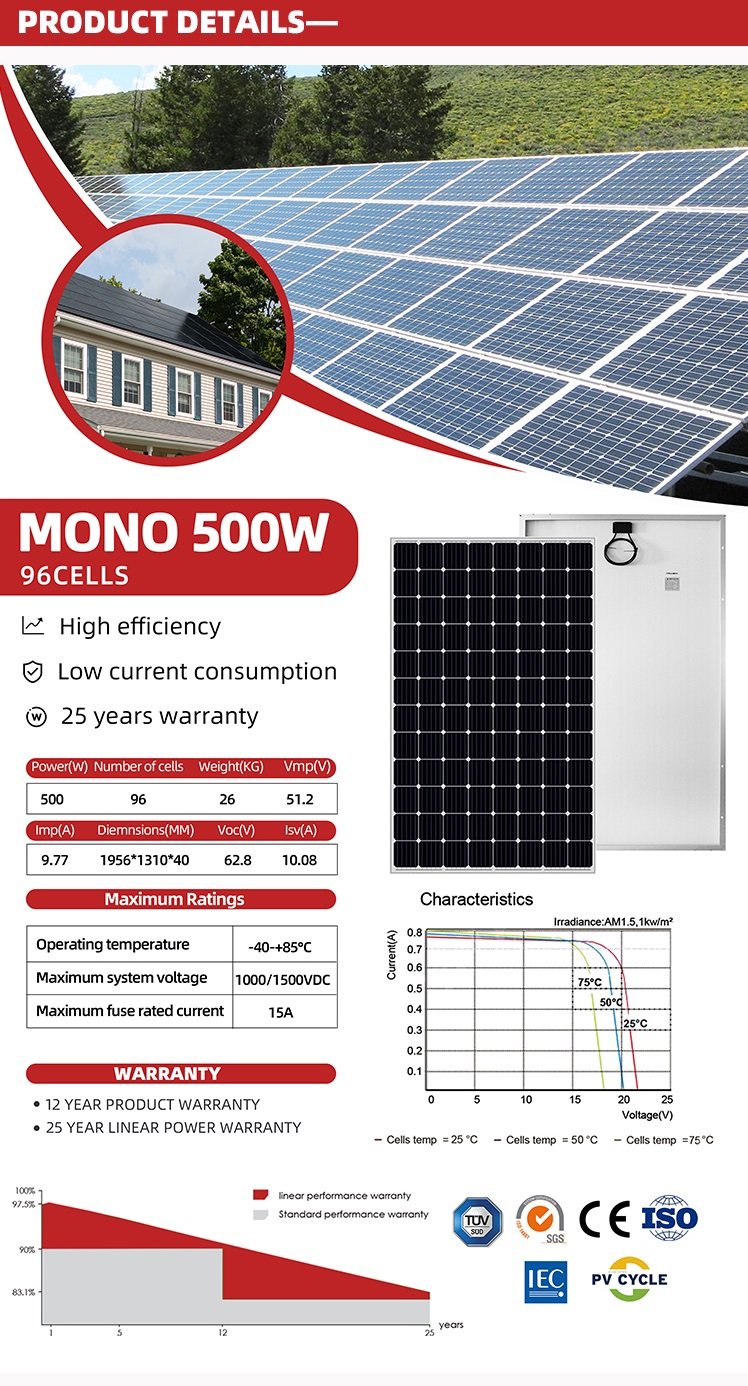

Electrical Characteristics
- Maximum Power (Pmax)
- 500 W
- Open Circuit Voltage (Voc)
- 62.8 V
- Short Circuit Current (Isc)
- 10.08 A
- Voltage at Max Power (Vmp)
- 51.2 V
- Current at Max Power (Imp)
- 9.77 A
Mechanical Specifications
- Dimensions
- 1956 x 1310 x 40 mm
- Weight
- 26 kg
- Number of Cells
- 96
Operating Conditions
- Operating Temperature Range
- -40 to +85°C
- Maximum System Voltage
- 1000/1500 VDC
- Maximum Fuse Rated Current
- 15 A
Certifications & Warranty
Warranty Coverage
- 12-year product warranty
- 25-year linear power warranty
- Certifications
- CETUVIECISO

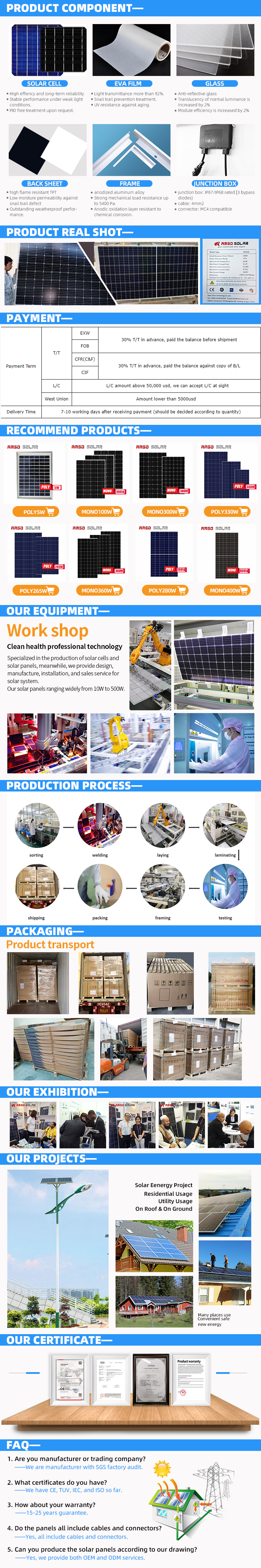

Construction Features
Construction Highlights
PID-freeAnti-reflective glassFlame-resistant TPT back sheetIP67/IP68 Junction BoxAnodized Aluminum Frame
