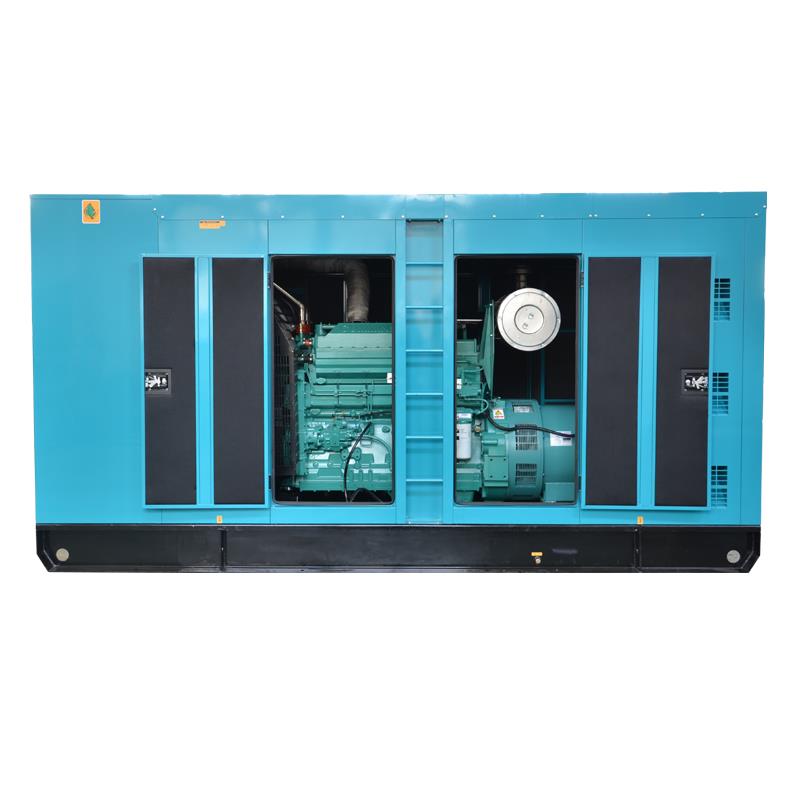

500kW Silent Diesel Generator Set
This 500kW diesel generator set ensures reliable backup power for diverse applications. Its sound-attenuated enclosure minimizes noise, making it suitable for noise-sensitive environments.
Technical Specifications
Overview
High-Performance 500kW Silent Power Solution
This 500kW silent diesel generator set is engineered for reliable standby and continuous power in noise-sensitive environments. It features a robust six-cylinder turbocharged engine and a brushless alternator with automatic voltage regulation for stable output. Housed in a sound-attenuated enclosure, the unit includes a self-starting control panel with comprehensive fault protection and monitoring for industrial and commercial applications.
Performance Metrics
Rated Power Output
500 kW
Rated Power
625 kVA
Rated Capacity
575 kW
Standby Power
Technical Specifications
Electrical Parameters
| Parameter | Value |
|---|---|
| Rated Voltage | 400/230V |
| Rated Current | 900A |
| Rated Frequency | 50Hz |
| Power Factor | 0.8 (Lagging) |
| Phase Connection | Three-phase four-wire |
Engine Details
Engine Configuration
- Type: Four strokes, waste gas turbine boost, direct injection
- Cylinders: 6 cylinders, Inline type
- Bore x Stroke: 159mm x 159mm
- Displacement: 19L
- Cooling: Forced closed-cycle water cooling with fan
- Speed Regulation: Electronic (E-Speed)
- Starting System: DC24V Electric start
Alternator & Protection
Alternator & Protection
| Feature | Specification |
|---|---|
| Type | Brushless with AVR |
| Insulation Class | H Degree |
| Protection Rating | IP22 |
| Rotating Speed | 1500 r/min |
Control System
Control & Monitoring Functions
- Automatic and manual start (15-50s adjustable)
- Automatic input and switching functionality
- Digital display for voltage, frequency, and current
- Monitoring for oil pressure, oil temperature, and coolant temperature
- Engine over-speed alarm and shutdown
- Low oil pressure and high water temperature protection
- Voltage and frequency out-of-range alarms
- Short-circuit and IDMT over-current protection
Physical Characteristics
Dimensions & Weight
| Attribute | Value |
|---|---|
| Silent Box Size | 4700 x 2100 x 2400 mm |
| Total Weight | 6850 KG |
| Noise Level (at 7m) | ≤75 dB |
Efficiency
- Fuel Consumption (Full Load)
- 206 g/kw.h
Accessories
- Included Accessories
- Base Oil TankWave PipeCurved PipeMufflerAccumulator & CablesShock-absorbing SpacerToolboxTechnical Documentation
