500kg Mini Tracked Dumper with Manual Tilt

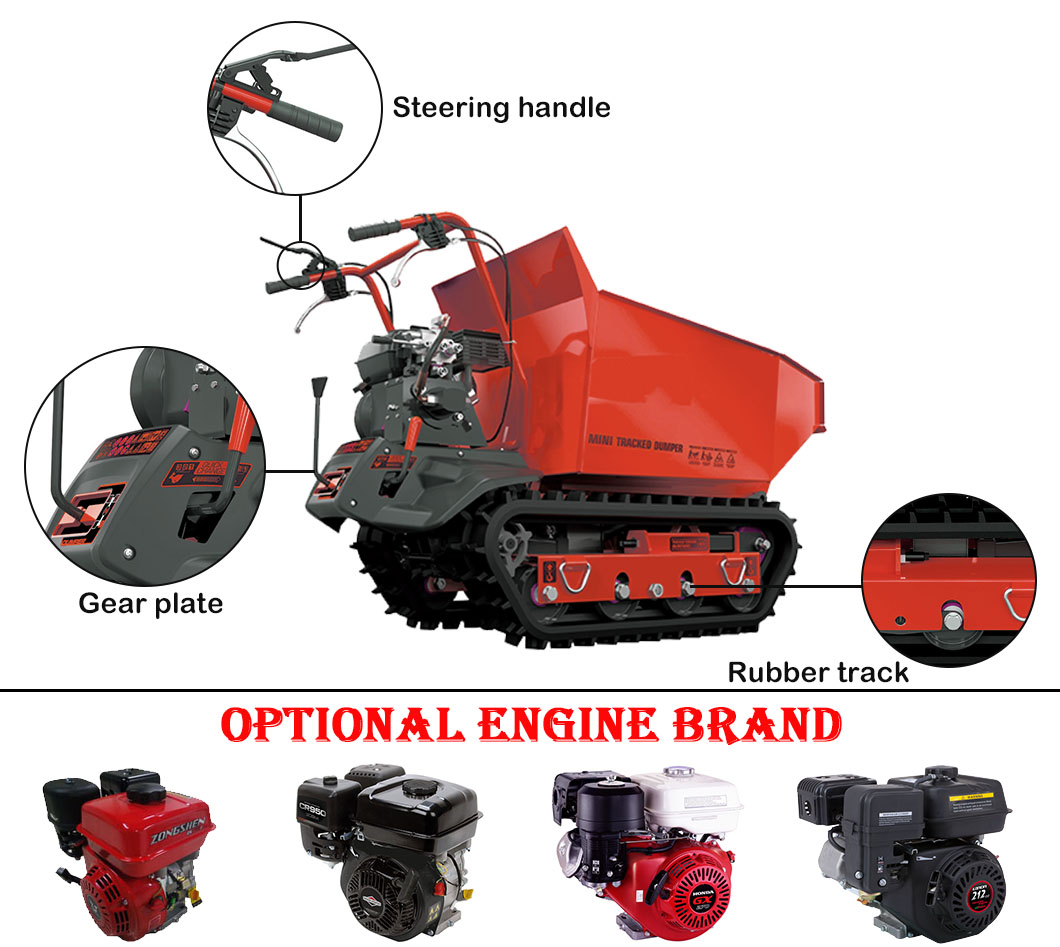

This mini tracked dumper is designed for transporting bulk materials through narrow spaces and over difficult terrain. It features a solid steel design, manual tilt function, and maintenance-free gear drive.
Technical Specifications
Overview
Versatile Material Handling
This 500kg mini tracked dumper is engineered for efficient transport of bulk materials across difficult terrain. Its compact design allows for seamless navigation through narrow spaces and restricted access areas. Built with a solid steel frame and durable rubber tracks, it provides the stability and maneuverability required for demanding construction and landscaping environments.
Performance
Key Performance Metrics
500 kg
Load Capacity
6.5 HP
Engine Power
196 cc
Engine Displacement
Technical Specifications
- Machine Weight
- 251 kg
- Transmission
- 6 Forward + 2 Reverse
- Crawler Size
- 180x60mm
Hopper Details
Hopper Dimensions
| Dimension | Measurement |
|---|---|
| Length | 950mm |
| Width | 680mm |
| Depth | 465mm |
Features
Optional Equipment
- Optional Blade (Ref: 31455)
- Key Features
- Manual TiltMaintenance-Free Gear DriveRubber TracksSolid Steel DesignAdjustable Hopper
Logistics
- Packing Dimensions
- 1680x760x1130mm
