Technical Specifications
Overview
Versatile Material Transport

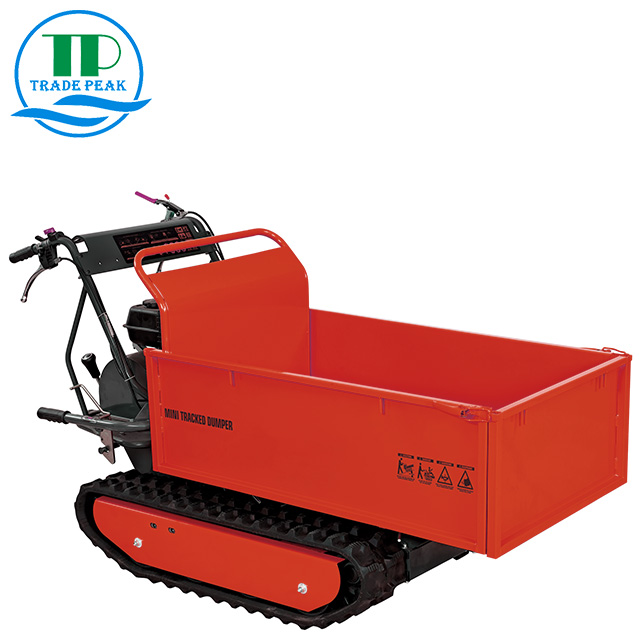

This 500kg mini tracked dumper is designed for efficient bulk material handling in confined spaces and challenging terrains. Featuring a solid steel design with an adjustable hopper, it provides exceptional maneuverability through narrow pathways. Equipped with manual tilt functionality and a reliable gasoline engine, it serves as an ideal solution for construction, landscaping, and agricultural projects.
Technical Specifications
Load Capacity
500 kg
Load Capacity
- Engine
- LONCIN 6.5HP 196CC Gas
- Transmission
- 3 Forward + 1 Reverse
- Track Width
- 180 mm
Dimensions
Hopper Dimensions
| Dimension | Value |
|---|---|
| Length | 1025-1155mm |
| Width | 625-885mm |
| Depth | 325mm |
- Body Size
- 1650 x 700 x 1050 mm
- Net Weight
- 228 kg
Features

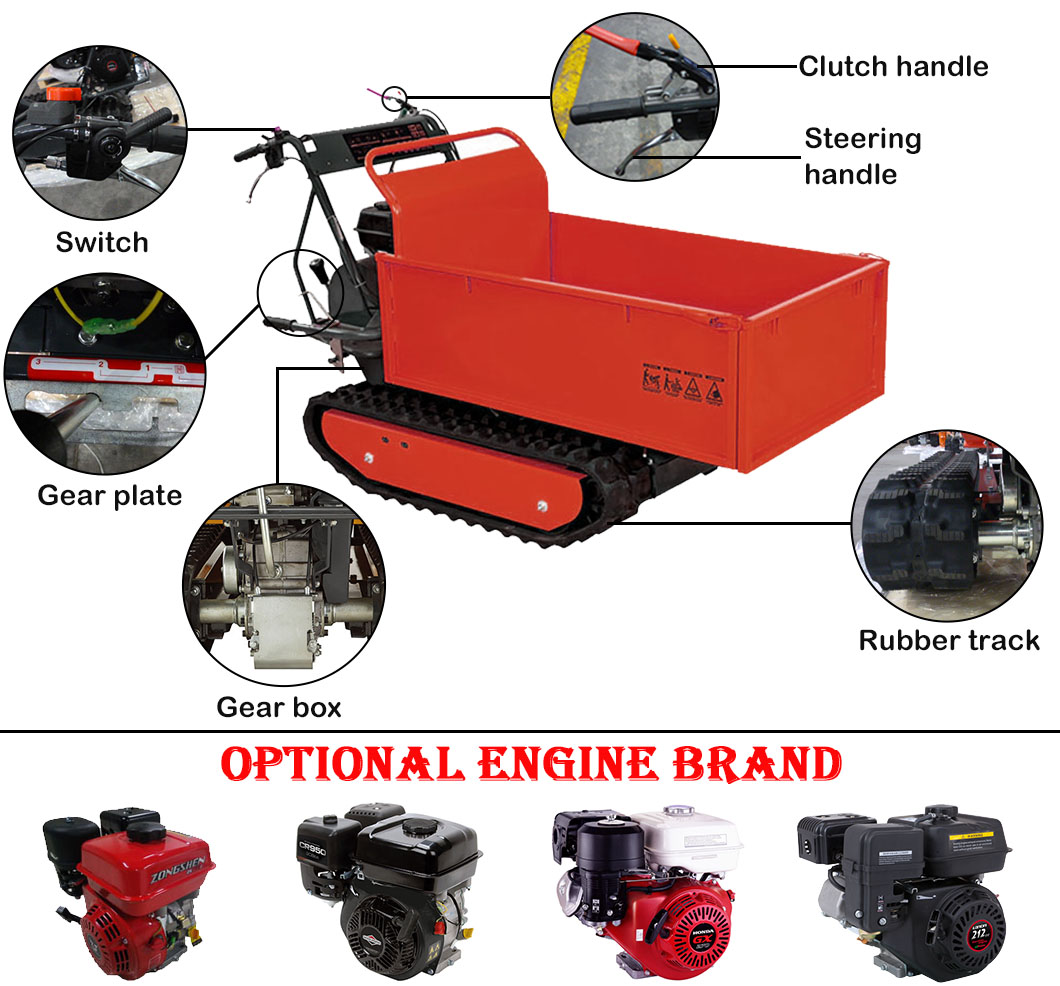

- Key Features
- Solid Steel DesignManual TiltAdjustable HopperTracked Drive
