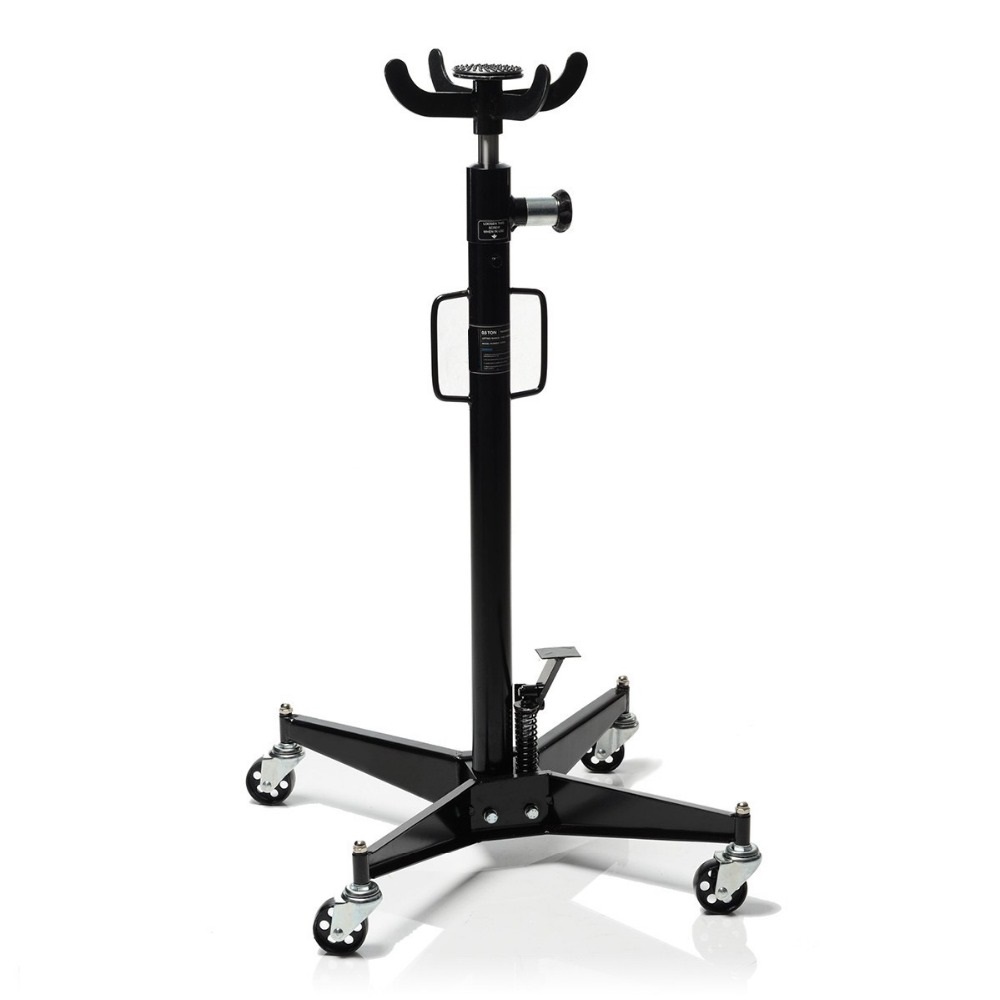

500kg Capacity Hydraulic Transmission Jack
This 500kg hydraulic transmission jack is designed for removing, installing, and transporting transmissions and transaxles. It features a fully adjustable saddle with adjustable brackets and smooth-rolling swivel casters for easy maneuverability.
Technical Specifications
Product Overview
Professional Transmission Jack
This 500kg hydraulic transmission jack is engineered for professional automotive environments, offering a stable and reliable solution for transmission and transaxle removal or installation. Built with heavy-duty steel, it features a wide base and swivel casters for excellent maneuverability around the workshop. Its foot-operated hydraulic system ensures hands-free, precise control during operation, enhancing safety and efficiency for mechanics.
Performance & Capacity
Maximum Load Capacity
500 kg
Capacity
Lifting Range
- Minimum Height: 1100mm
- Maximum Height: 1900mm
Design & Construction

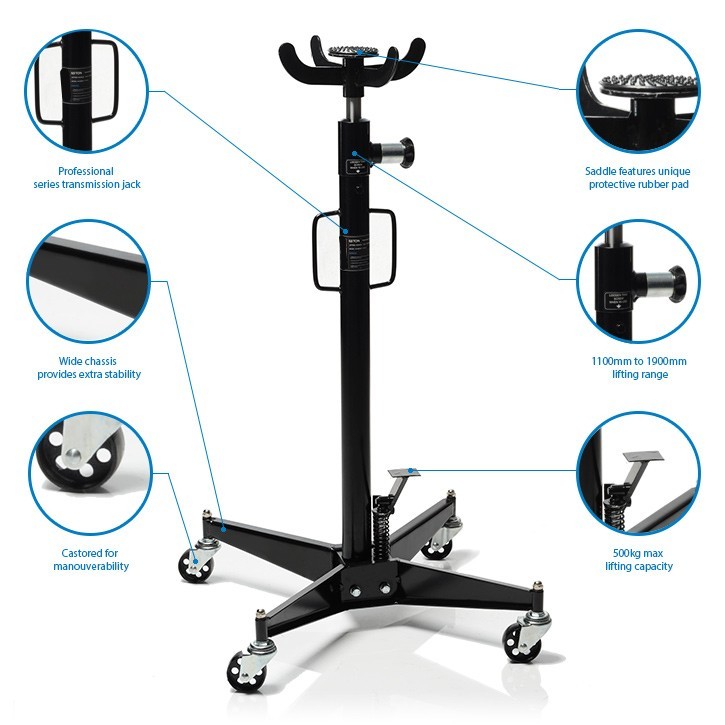

Saddle Features
Fully AdjustableCorner BracketsProtective Rubber Pad
- Material
- Heavy-duty steel
- Mobility Features
- 4 Rolling Casters360° Swivel WheelsDouble Handle
Safety & Operation
Safety Features
- Safety overload system
- Wide chassis for stability
- Control Mechanism
- Foot-operated hydraulic pump with precision hand release valve
