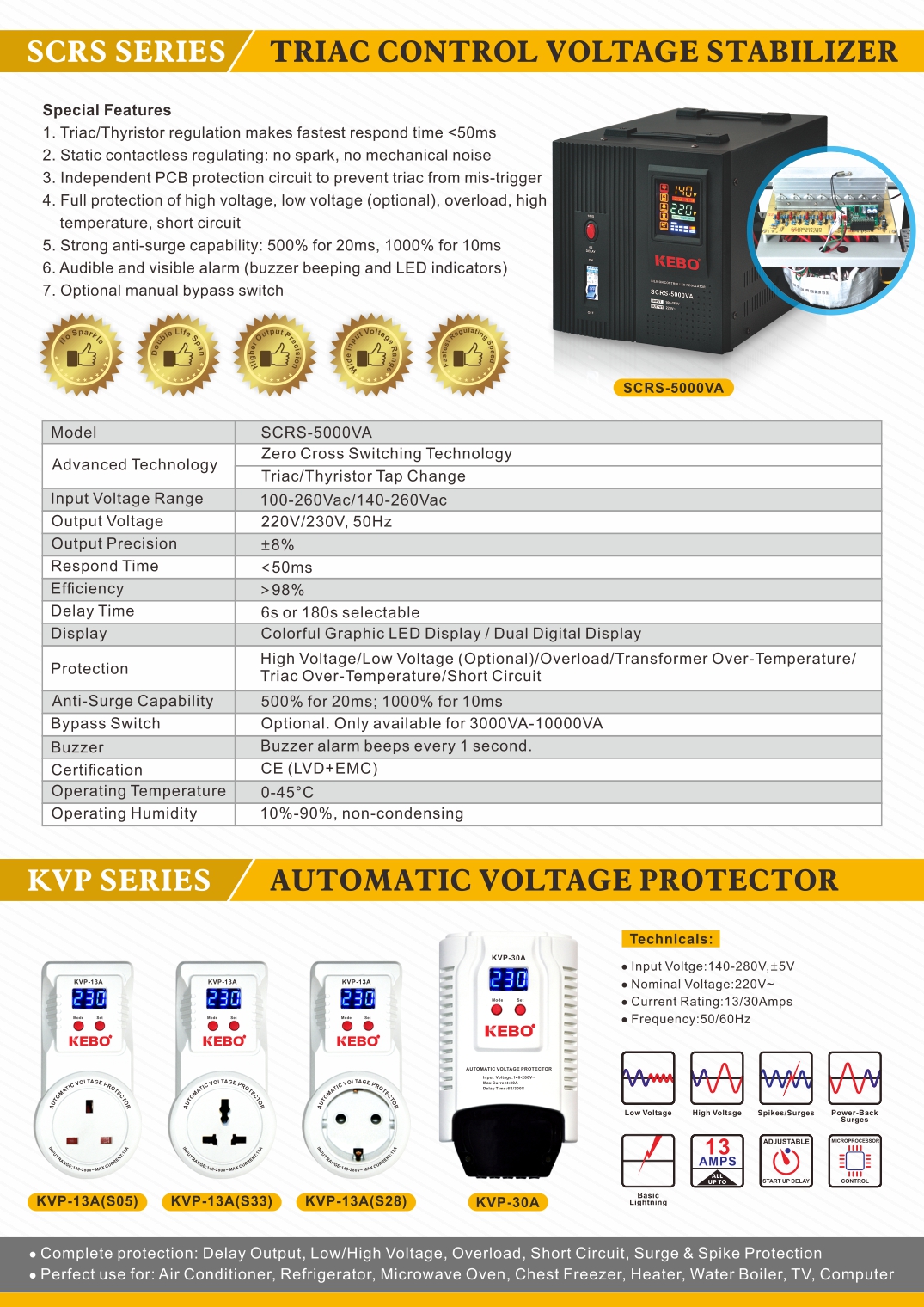

5000VA Voltage Stabilizer
This 5000VA voltage stabilizer uses triac/silicon-control technology and features a wide, selectable input voltage range. It has a full metal cabinet, dual LED or integrated colorful display, and an optimized MCU for welding machine applications.
Technical Specifications
Overview
Professional SCRS Voltage Stabilizer
The 5000VA voltage stabilizer utilizes advanced silicon-controlled (triac) technology to provide stable, precise power for sensitive electronic equipment. Designed for reliability, it features static contactless regulation which eliminates mechanical noise and sparks, ensuring a long operational life. With its intelligent MCU control and comprehensive protection suite, it is an ideal solution for maintaining power integrity in demanding industrial and home environments.
Performance Specifications
Response Time
50 ms
Response Time
- Input Voltage Range
- 100-260V / 140-260V
- Output Voltage
- 220V/230V
- Efficiency
- 98 %
- Operating Frequency
- 50 Hz
Protection Features
Anti-Surge Capability
| Surge Level | Duration |
|---|---|
| 500% | 20ms |
| 1000% | 10ms |
- Comprehensive Protection
- High VoltageLow VoltageOverloadShort CircuitHigh Temperature
Operational Features
Selectable Delay Time
- 6s
- 180s
Certifications
CELVDEMC
- Operating Conditions
- 0-45°C Temperature, 10-90% Humidity
