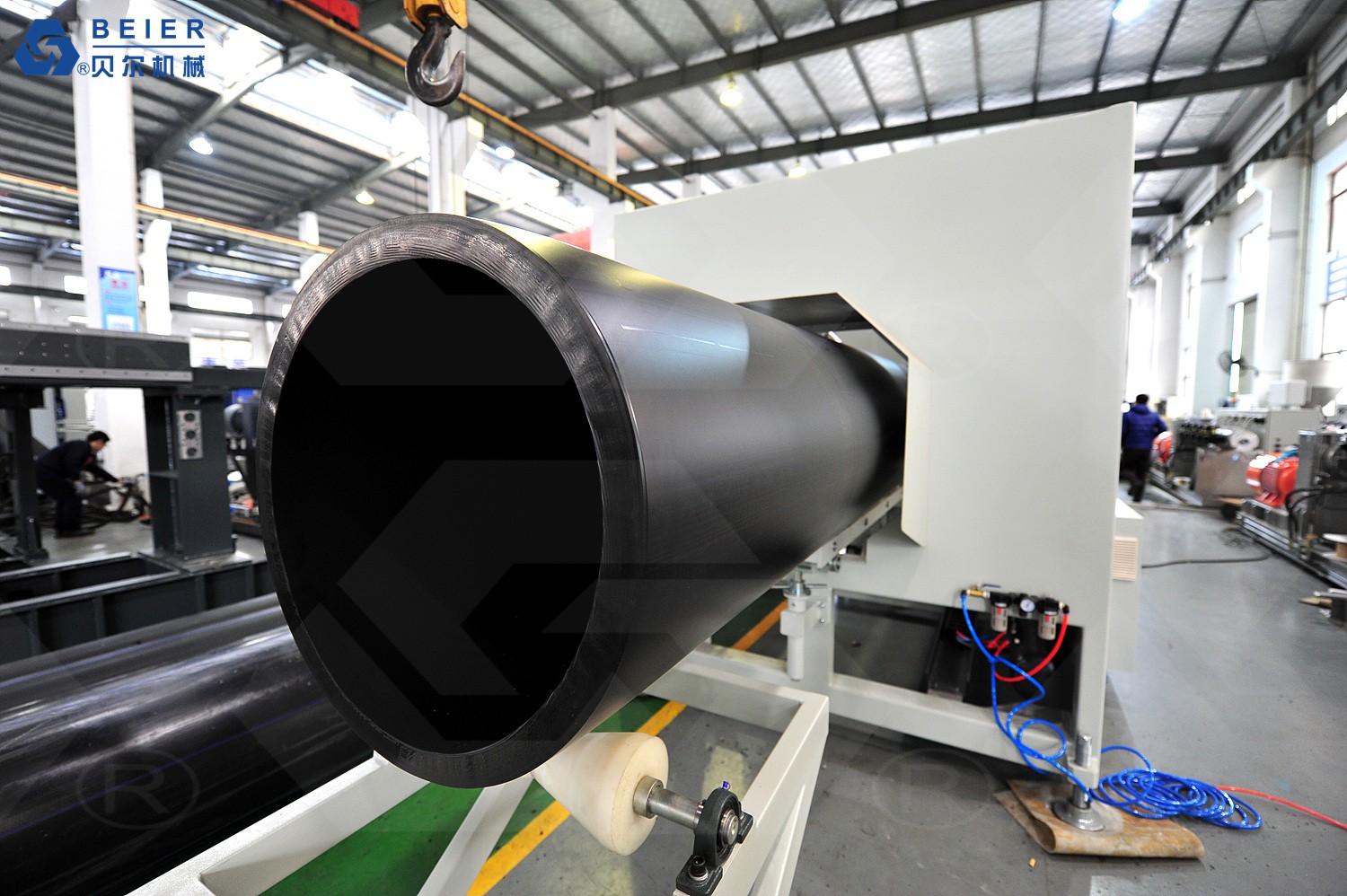

500-1200mm HDPE PE PP PP-R Pipe Extrusion Line
This extrusion line is designed for producing HDPE, PE, PP, and PP-R pipes with diameters ranging from 500mm to 1200mm. It features a high-performance extruder with precise temperature control and an optimized screw design for consistent melt quality.
Technical Specifications
Overview
High-Performance Large Diameter Pipe Extrusion
This advanced extrusion line is engineered for the high-speed production of HDPE, PE, PP, and PP-R pipes with diameters ranging from 500mm to 1200mm. It features a high-efficiency single screw extruder with a specialized L/D ratio of 38-40/1 and a spiral head channel to ensure optimal material flow and pressure distribution. Designed for industrial applications like water supply and gas distribution, the system prioritizes energy efficiency and stability through premium components and a dual-chamber vacuum cooling system.
Key Performance Metrics
Key Performance Metrics
Technical Specifications
- Compatible Materials
- HDPEPEPPPP-R
- Pipe Diameter Range
- 500 - 1200 mm
- Screw L/D Ratio
- 38-40/1
Extruder Components

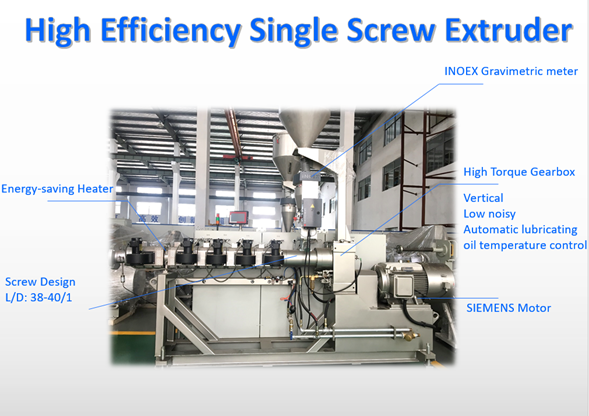

Extruder Features
- High efficiency single screw design
- Spiral grooved bush structure
- High torque gearbox with low noise operation
- Automatic lubricating oil temperature control
- Energy-saving heater system
- INOEX Gravimetric meter for precise feeding

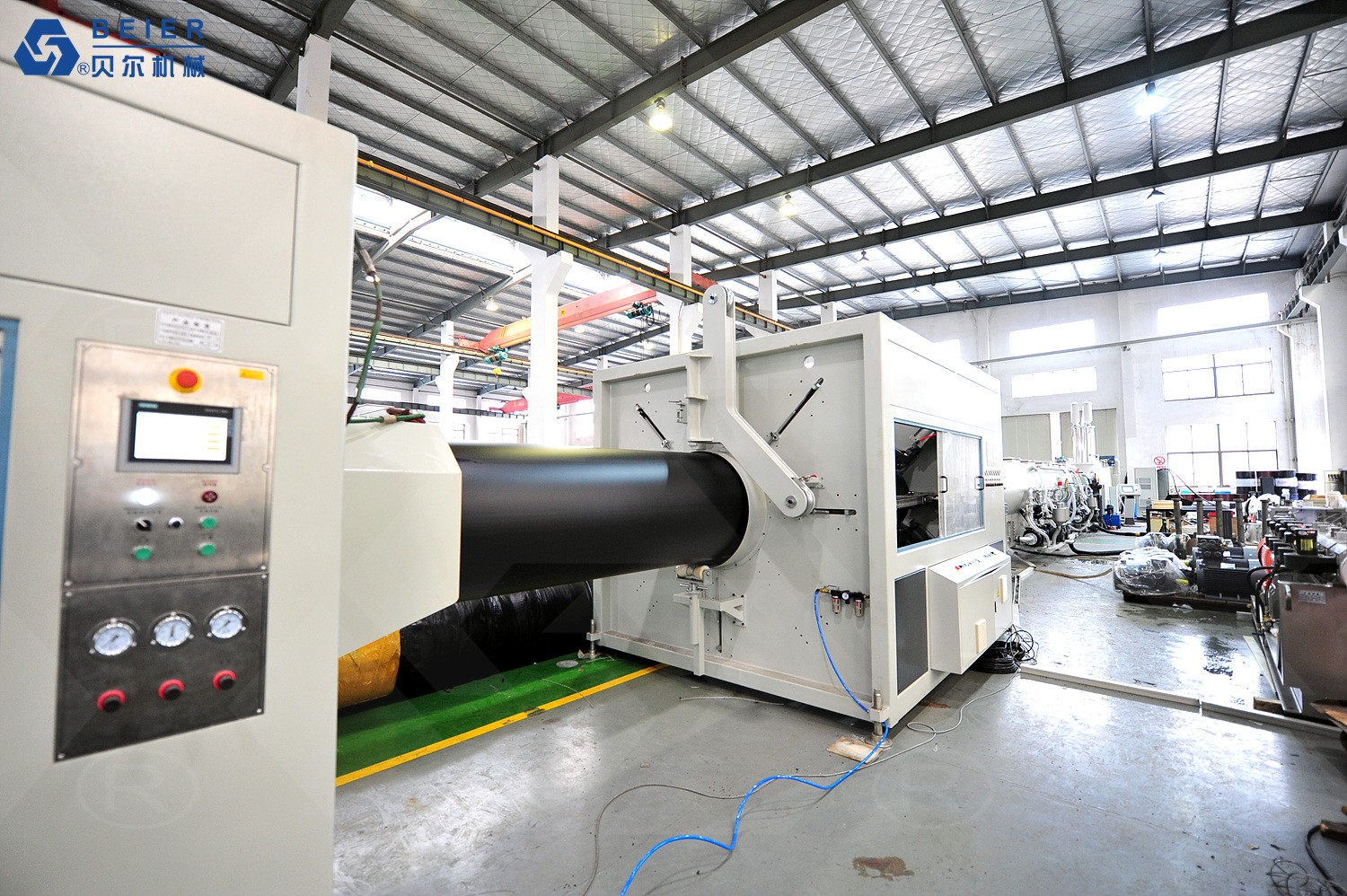

Cooling & Calibration
Cooling System Details
- 9m Two-chamber vacuum calibrating design
- Multi-section water membrane cooling
- Double disk calibration sleeve
- Brass and glass material construction
Control & Drive System
System Components
| Component | Specification/Brand Type |
|---|---|
| Main Motor | Siemens |
| Inverter | ABB |
| Reducer | Falk |
| Control System | PLC |
Model Comparison

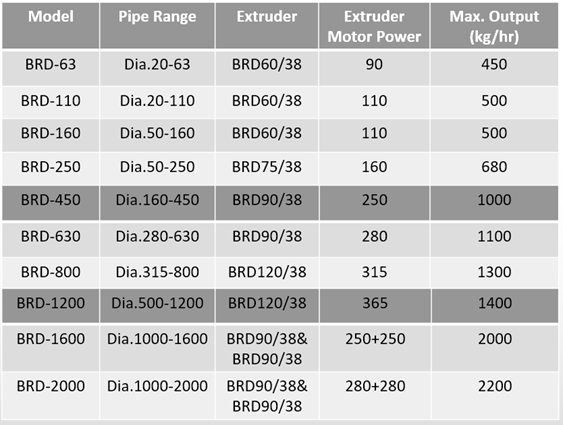

Series Technical Data
| Model | Pipe Range (mm) | Extruder | Power (kW) | Max Output (kg/hr) |
|---|---|---|---|---|
| BRD-450 | 160-450 | BRD90/38 | 250 | 1,000 |
| BRD-630 | 280-630 | BRD90/38 | 280 | 1,100 |
| BRD-800 | 315-800 | BRD120/38 | 315 | 1,300 |
| BRD-1200 | 500-1200 | BRD120/38 | 365 | 1,400 |
