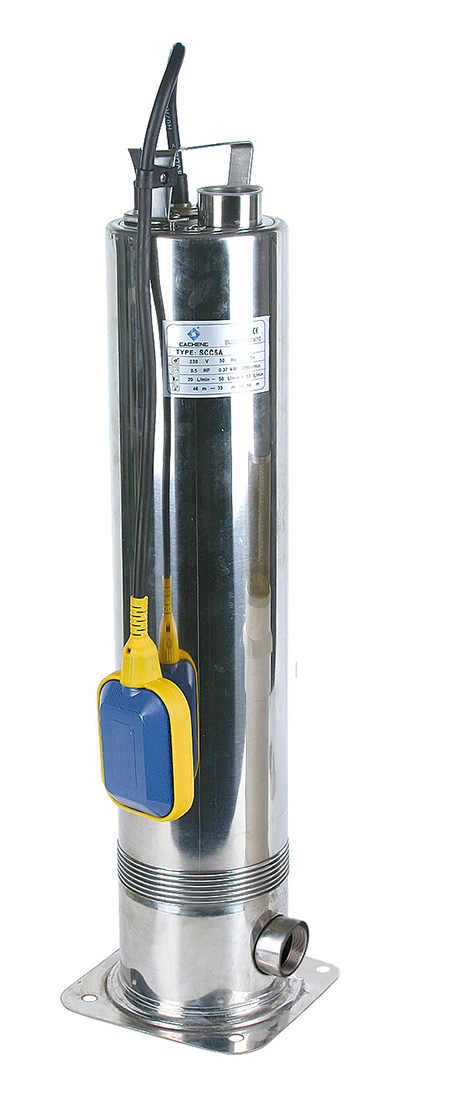

5" Submersible Borehole Pump
This multistage centrifugal submersible pump is applied to clean water drainage. It is widely used in irrigation systems, drinking water supply, and washing applications where increased pressure is needed.
Technical Specifications
Product Overview
High-Efficiency 5" Submersible Borehole Pump
This 5-inch submersible borehole pump is engineered for reliable water extraction in domestic, irrigation, and industrial applications. Constructed from durable stainless steel, it provides excellent corrosion resistance and longevity in demanding water environments. The integrated float switch ensures automatic operation while protecting the unit from dry running, making it a highly efficient solution for narrow boreholes.
- Key Features
- Stainless Steel ConstructionFloat Switch IncludedCorrosion ResistantAutomatic Operation
Technical Specifications
Power Output
0.5 HP
Horsepower
0.37 kW
Power
Electrical Requirements
- Voltage: 230 V
- Frequency: 50 Hz
- Speed: 2850 r/min
Performance Data
Flow and Head Performance
| Flow (L/min) | Head (m) |
|---|---|
| 20 | 46 |
| 50 | 35 |
| 83 | 16 |
Operating Limits
Operational Parameters
- Max liquid temperature: 35°C
- Minimum well diameter: 125mm
- Max immersion depth: 20m
- Max sand content: 0.15%
- Duty cycle: Continuous
