Technical Specifications

Product Overview

High-Performance Grinding Wheel

This 5-inch grinding wheel is engineered for effective material removal and surface preparation on various metal types. Designed with a reinforced structure, it offers high durability and reliability for demanding industrial tasks. Compliant with international safety standards, this abrasive disc ensures consistent performance for professional applications.

Technical Specifications

Dimensions

125 mm

Diameter

6 mm

Thickness

22.2 mm

Bore Diameter

Performance Limits

12,200 RPM

Max RPM

80 m/s

Max Speed

Abrasive Grade: A24Q4BF

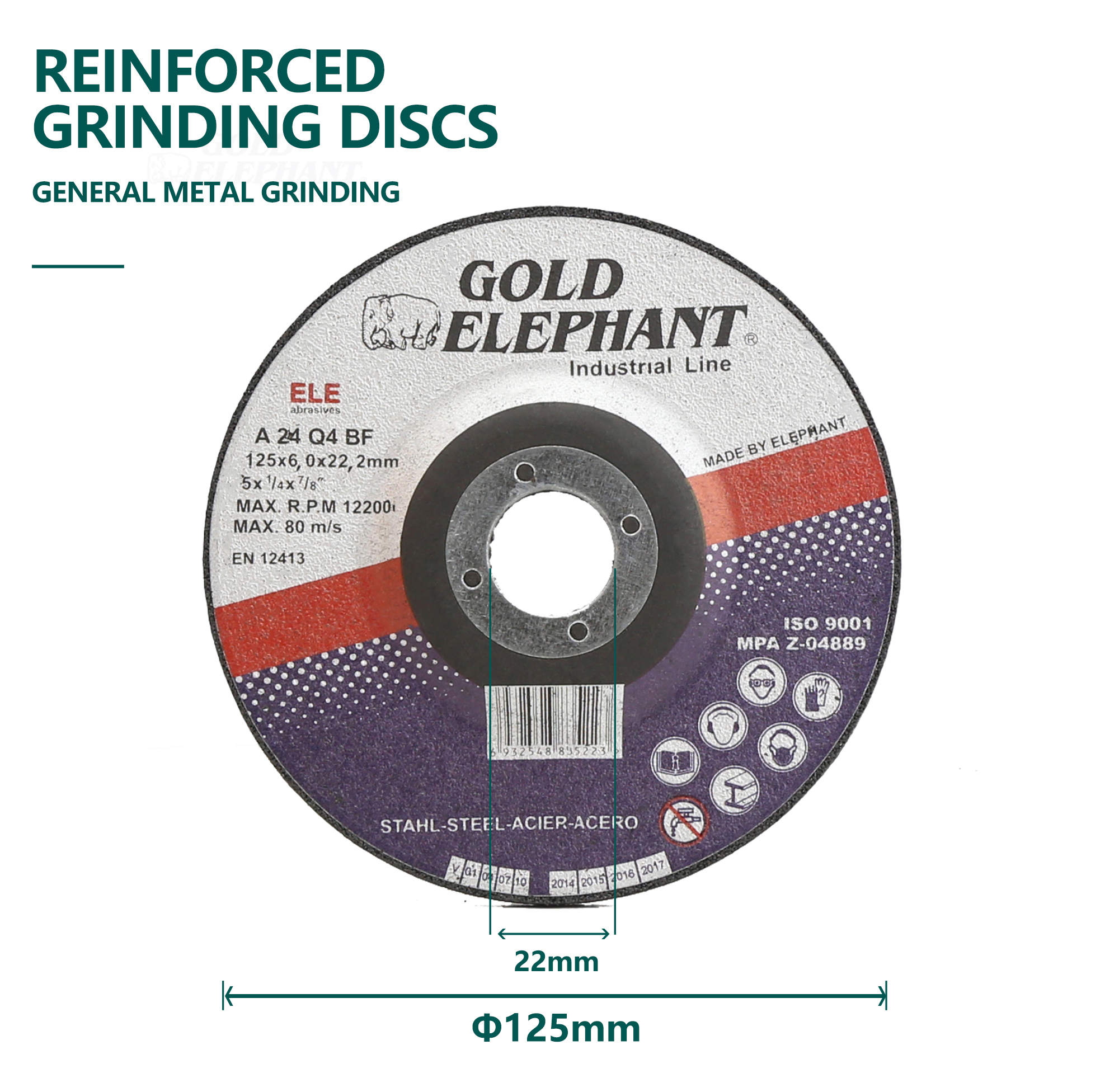

Reinforced grinding disc showing technical specifications and markings — Detailed view of the grinding disc specifications and compliance markings.

Compliance & Safety

Suitable Materials

Steel
Stahl
Acier
Acero

Certifications: ISO 9001MPA Z-04889EN 12413

Interested in Sourcing This Product?

Submit a request to connect with verified manufacturers who produce this product.

5 inch A24Q4BF Grinding Wheel - 125x6.0x22.2mm

This 5-inch grinding wheel is designed for metal cutting and grinding applications. It measures 125x6.0x22.2mm and is engineered for a maximum RPM of 12200.

Request a Quote Download PDFPDF

5 inch A24Q4BF Grinding Wheel - 125x6.0x22.2mm - Image 1
