Technical Specifications
Overview

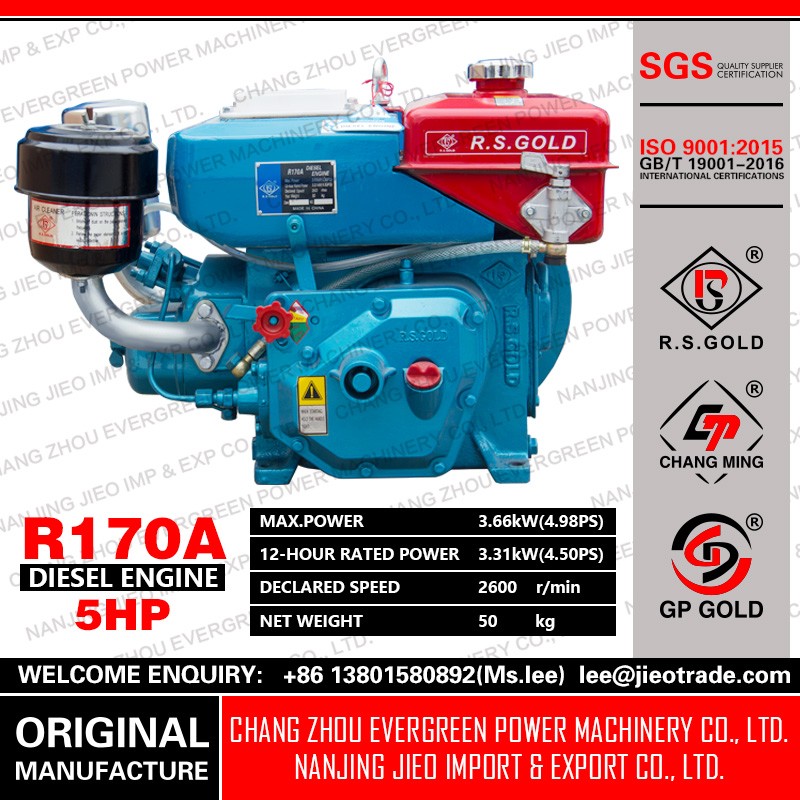

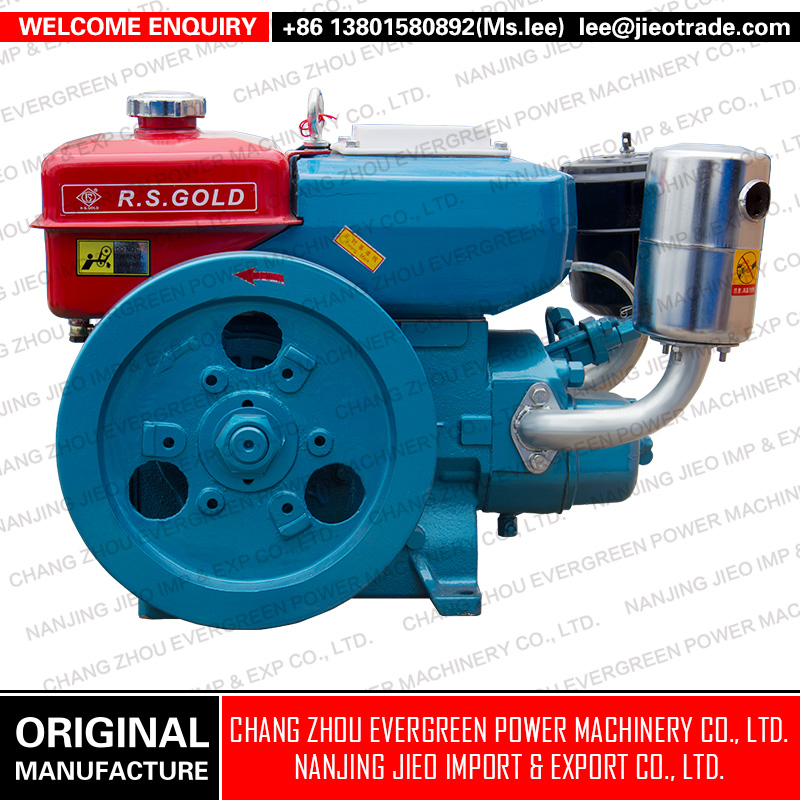

Robust Single-Cylinder Diesel Engine
This horizontal, four-stroke diesel engine is designed for reliable power across industrial and agricultural applications. Delivering a 5 HP output at 2600 r/min, it is engineered for consistent performance and durability. With an efficient swirl combustion system, this engine provides a dependable solution for powering small machinery.
Performance Metrics
Featured Performance
3.66 kW
Max Power
3.31 kW
12-Hour Rated Output
2,600 r/min
Rated Speed
Technical Specifications
Construction Details
| Feature | Value |
|---|---|
| Engine Type | Single-cylinder, horizontal, four-stroke |
| Combustion System | Swirl combustion chamber |
| Bore x Stroke | 70 x 70 mm |
| Compression Ratio | 22:1 |
Efficiency Ratings
- Specific fuel consumption: ≤ 294.2 g/kw·h
- Specific lube oil consumption: ≤ 4.76 g/kw·h
Mechanical Systems
- Operational Systems
- Evaporative Water CoolingHand Crank StartFlywheel End Power OutputSplash Lubrication
Physical Dimensions
Physical Characteristics
50 kg
Net Weight
