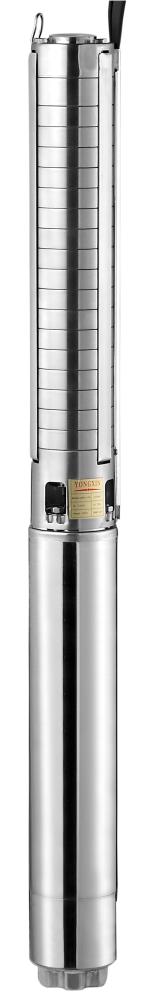

4SP5T Submersible Water Pump
This submersible pump is designed for underwater applications, featuring a compact structure and lightweight design. Its stainless steel construction ensures durability and corrosion resistance for efficient water extraction.
Technical Specifications
Overview
High-Performance Stainless Steel Submersible Pump
The 4SP5T is a multi-stage centrifugal submersible pump engineered for efficient water extraction from boreholes and wells. Featuring durable stainless steel construction, it offers excellent corrosion and wear resistance, making it suitable for demanding environments including those with high sand content. This pump is designed for quiet operation, energy efficiency, and long service life, ideal for irrigation, water supply, and industrial pressure boosting applications.
Technical Specifications
Insulation Class
Class B
Protection Grade
IP58
- Motor Standard
- NEMA
- Maximum Diameter
- 93 mm
- Maximum Liquid Temperature
- 30 °C
- Outlet Size
- G1 1/4"
- Motor Speed
- 2850 rpm
Applications
- Typical Applications
- Water Supply SystemsBooster SystemsGarden IrrigationFarm IrrigationIndustrial ApplicationsGroundwater Lowering
Performance Data
Model Specifications
| Model | Power (kW) | Power (HP) | Phase |
|---|---|---|---|
| 4SP5-04A | 0.37 | 0.5 | Single |
| 4SP5-06A | 0.55 | 0.75 | Single |
| 4SP5-08A | 0.75 | 1 | Single |
| 4SP5-12A | 1.1 | 1.5 | Single |
| 4SP5-17A | 1.5 | 2 | Three |
| 4SP5-22A | 2.2 | 3 | Three |
| 4SP5-25A | 2.2 | 3 | Three |
| 4SP5-33A | 3 | 4 | Three |
| 4SP5-38A | 4 | 5.5 | Three |
| 4SP5-40A | 4 | 5.5 | Three |
| 4SP5-44A | 4 | 5.5 | Three |
| 4SP5-52A | 5.5 | 7.5 | Three |
