Technical Specifications
Product Overview
High-Efficiency Deep Well Extraction

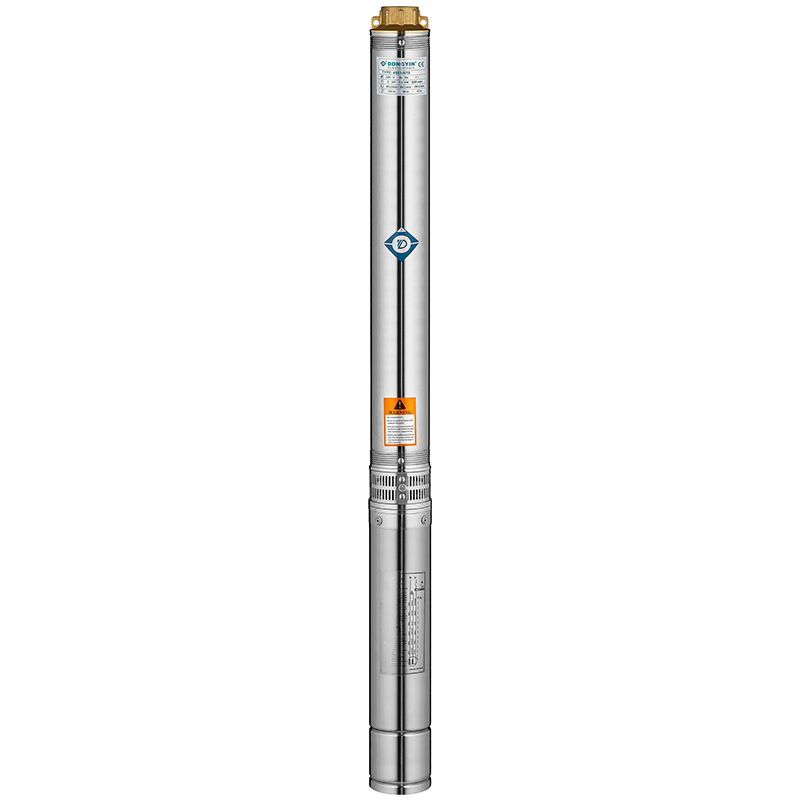

The 4SE series submersible deep well pump is engineered for reliable water extraction from boreholes and deep wells. Constructed from durable, corrosion-resistant stainless steel, this unit is suitable for potable water applications, irrigation, and industrial water supply. Its high-performance motor ensures consistent flow and pressure, while the design facilitates straightforward installation and long-term maintenance.
Technical Specifications
Power Output
2 HP
Horsepower
1.5 kW
Power
Electrical Requirements
- Voltage: 220V
- Frequency: 50Hz
- Phase: Single Phase (1~)
- Rotational Speed
- 2850 r/min
Performance Data
Flow and Head Performance
| Flow Rate (L/min) | Head Height (m) |
|---|---|
| 20 | 124 |
| 60 | 99 |
| 100 | 41 |
Compliance & Certification
- Certifications
- CE
Construction
Material
Stainless Steel
