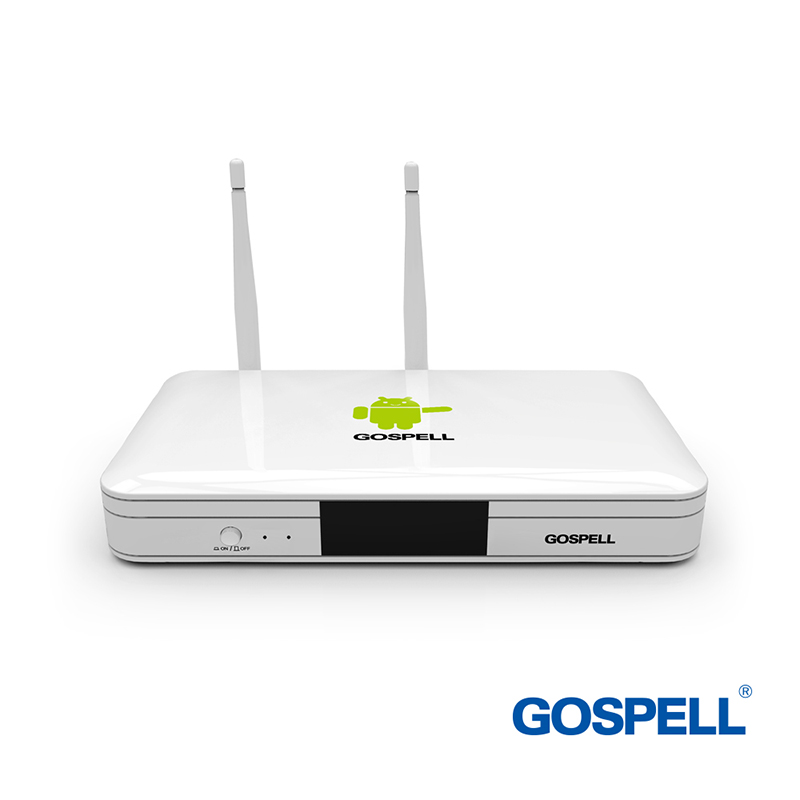

4K Ultra HD Android DVB-C Set-Top Box
This set-top box decodes DVB-C signals and supports video output up to 4Kx2K at 60fps. It runs on the Android operating system, providing access to various applications.
Technical Specifications
Overview
High-Performance 4K Android Set-Top Box
This Android-based DVB-C set-top box delivers a superior entertainment experience with support for 4K Ultra HD resolution at 60fps. Built with a powerful chipset and 2GB of DDR4 RAM, it ensures smooth playback and responsive application performance. Designed for versatility, it supports a wide array of video codecs including H.265 and H.264, making it an ideal solution for modern cable television operators and end-users.
Performance
Key Performance Metrics
2 GHz
CPU Speed
2 GB
RAM
8 GB
Flash Storage
60 fps
Max Frame Rate
- Chipset Model
- Hi3798MV200
Connectivity
Interface Ports
| Port Type | Quantity |
|---|---|
| USB 2.0 | 2 |
| USB 3.0 | 1 |
| HDMI | 1 |
| Ethernet | 1 |
| RF Signal Input | 1 |
| Digital Audio (Optical) | 1 |
- Wireless Connectivity
- 2.4GHz Wi-Fi5GHz Wi-FiBluetooth
Tuner & Decoding
Demodulation Standards
- 16QAM
- 32QAM
- 64QAM
- 128QAM
- 256QAM
- Supported Video Codecs
- H.264H.265MPEG-4MPEG-2AVSDivx
Power & Environment
- Power Supply
- DC 12V 1.5A
- Max Power Consumption
- 18 W
- Operating Temperature
- 0°C to 50°C
Mechanical
- Dimensions (W x H x D)
- 210mm x 12mm x 32mm
- Weight
- 0.6 Kg
