470-Ton High-Speed Injection Molding Machine
This high-speed injection molding machine is designed for PP thin-wall products and is widely used in the packaging industry. It features a 470-ton clamping force, ensuring consistent mold closure and part quality.

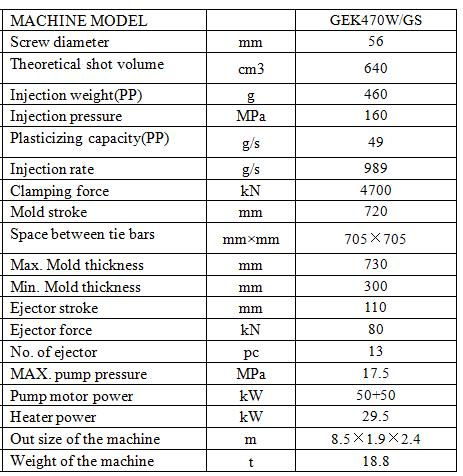

Technical Specifications
Overview
High-Performance Thin-Wall Injection Solution
The GEK series high-speed injection molding machine is specifically engineered for the production of PP thin-wall products, making it an ideal choice for the high-demand packaging industry. With a robust 470-ton clamping force and rapid injection rates, this machine ensures consistent quality and precision for high-volume manufacturing. Its advanced design focuses on reducing cycle times while maintaining the structural integrity of complex plastic components.
Key Performance Metrics
Performance Highlights
4,700 kN
Clamping Force
989 g/s
Injection Rate
160 MPa
Injection Pressure
460 g
Injection Weight (PP)
Injection Unit
- Screw Diameter
- 56 mm
- Theoretical Shot Volume
- 640 cm3
- Plasticizing Capacity (PP)
- 49 g/s
Clamping Unit
- Mold Stroke
- 720 mm
- Space Between Tie Bars
- 705 x 705 mm
- Mold Thickness (Max/Min)
- 730 mm / 300 mm
Ejector System
Ejector Specifications
| Parameter | Value |
|---|---|
| Ejector Stroke | 110 mm |
| Ejector Force | 80 kN |
| Number of Ejectors | 13 pc |
Power & Dimensions
- Pump Motor Power
- 50 + 50 kW
- Heater Power
- 29.5 kW
- Machine Dimensions (L x W x H)
- 8.5 x 1.9 x 2.4 m
- Machine Weight
- 18.8 t
Applications
- Target Industries
- Packaging IndustryThin-Wall ProductsPP Material ProcessingHigh-Volume Manufacturing
