Technical Specifications
Product Overview
Professional-Grade Wood Cutting Performance
This 46cc gasoline chainsaw is engineered for high consistency and reliable performance in both garden maintenance and professional wood-cutting tasks. It features a digital-type ignition system for stable operation, an automatic anti-kickback braking system for enhanced safety, and an advanced lubrication system that reduces vibration. With a long engine life rated for 150-200 hours, it offers a durable and cost-effective solution for demanding landscaping and forestry applications.
Technical Specifications
Engine Performance
45.6 cc
Displacement
1.8 kW
Rated Power
11,000 rpm
Max Speed
Engine Specs
| Attribute | Value |
|---|---|
| Bore / Stroke | φ45 / 31mm |
| Ignition System | CDI |
| Carburetor | Diaphragm type |
| Idle Speed | 3300 ± 400 rpm |
| Dry Weight | 4.9 kg |
Cutting Capabilities
Bar and Chain Options
- Bar Lengths: 16, 18, 20, 22, 24 inches
- Chain Pitch: 0.325 or 3/8 inch
- Gauge: 0.050 or 0.058 inch
Logistics & Capacity
Tank Capacities
520 ml
Fuel Tank
260 ml
Oil Tank

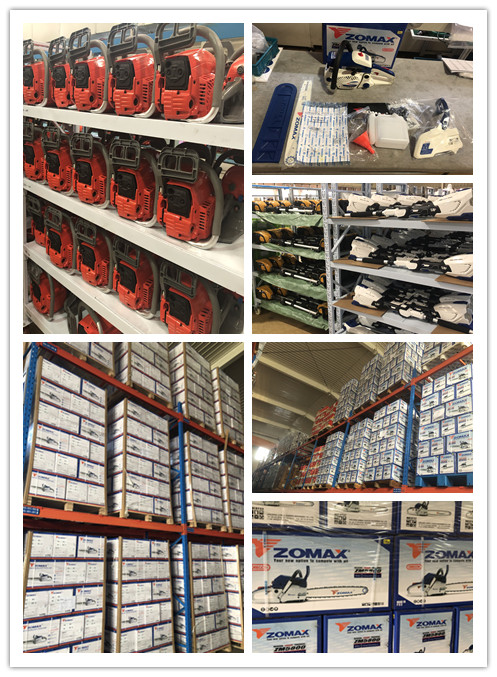

Shipping Quantities (PCS)
| Container Type | Units |
|---|---|
| 20FT | 816 |
| 40GP | 1,688 |
| 40HQ | 1,899 |
Features
- Available Options
- Es-StarterFuel PrimerAnti-freeze
