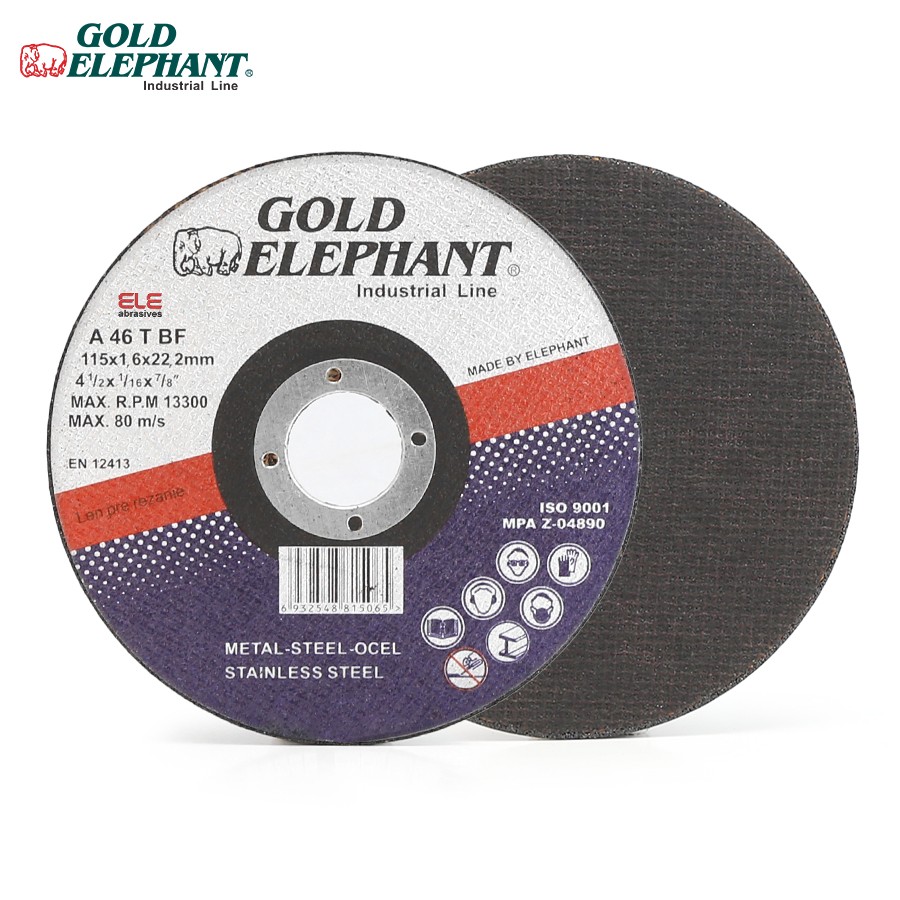

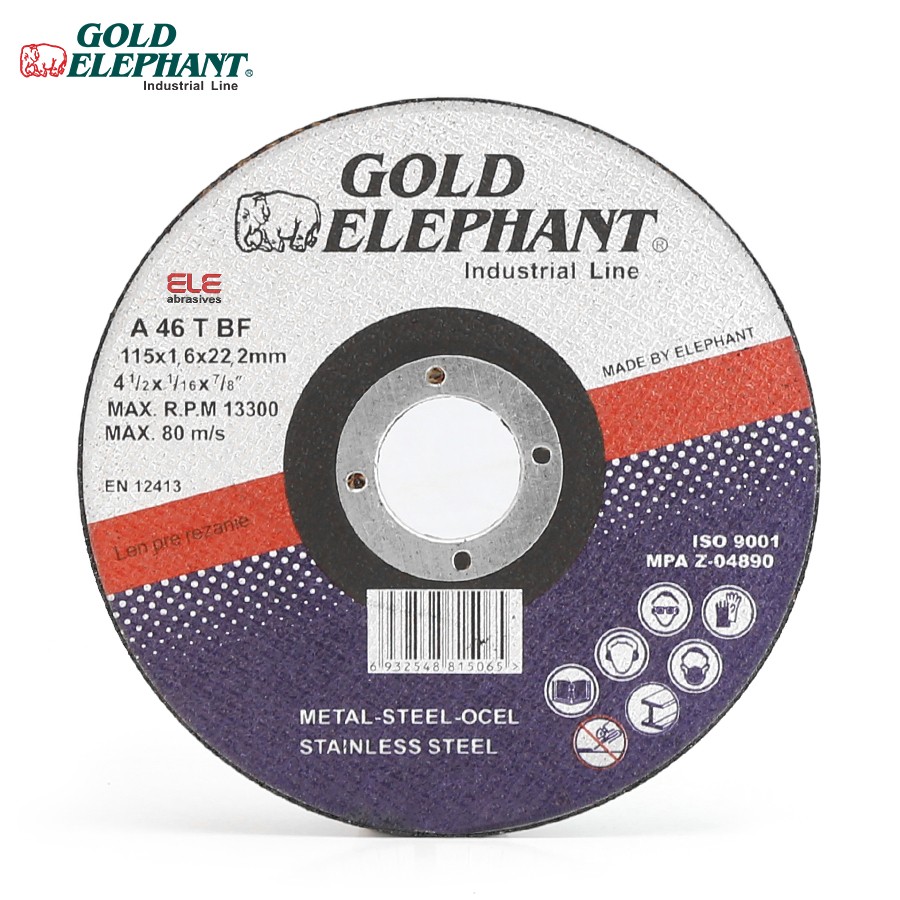

4.5 Inch Metal Cutting Wheel
This 4.5-inch cutting wheel is designed for metal cutting applications. It features a flat profile and is suitable for achieving precise cuts on metal surfaces.
Technical Specifications
Product Overview
High-Performance Cutting Solution
This 4.5-inch cutting wheel is engineered for professional metal and stainless steel cutting applications. Featuring a super-thin design, it offers superior sharpness and efficiency while preventing edge collapse and overheating during operation. Built with a medium-hard bond and reinforced fiberglass, this disc provides an optimal balance between cutting performance and long-lasting durability.
Technical Specifications

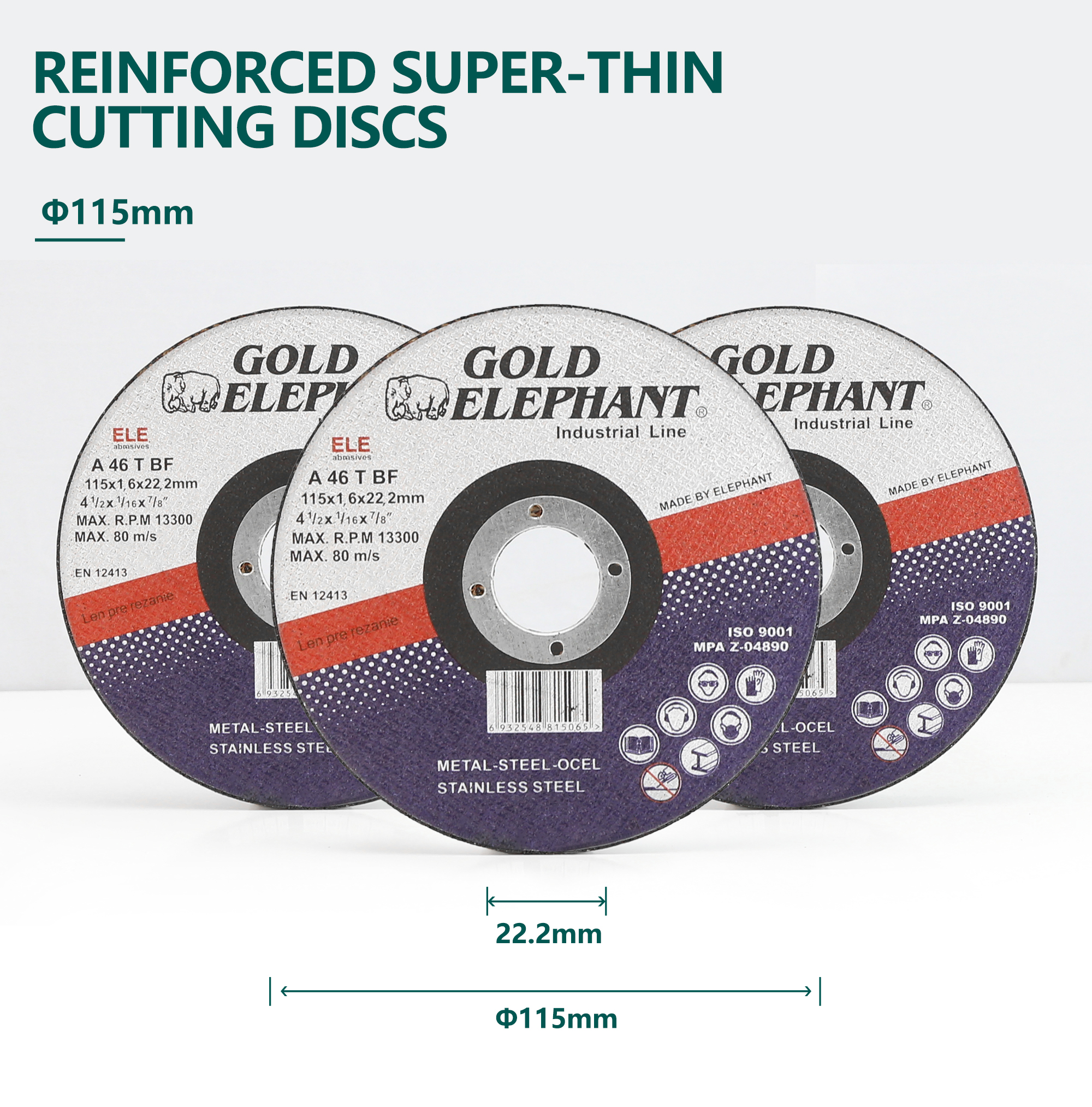

Dimensions
115 mm
Diameter
1.6 mm
Thickness
22.2 mm
Bore Diameter
Performance Limits
13,300 RPM
Max RPM
80 m/s
Max Speed
- Abrasive Grade
- A 46 T BF
- Wheel Type
- T41 (Flat Wheel)
Compliance & Quality

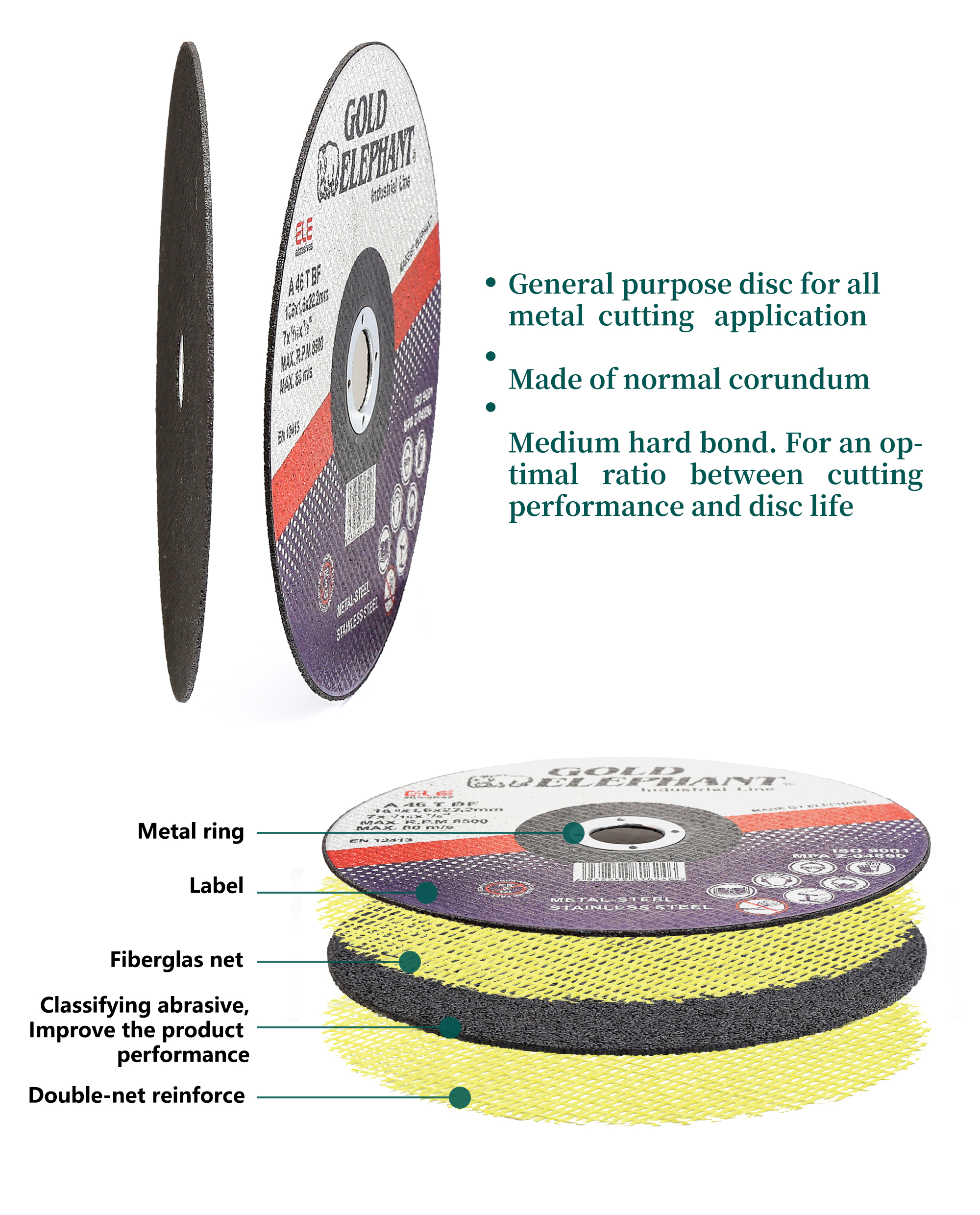

Construction Features
- Double-net reinforced fiberglass
- Normal corundum abrasive
- Medium hard bond for extended life

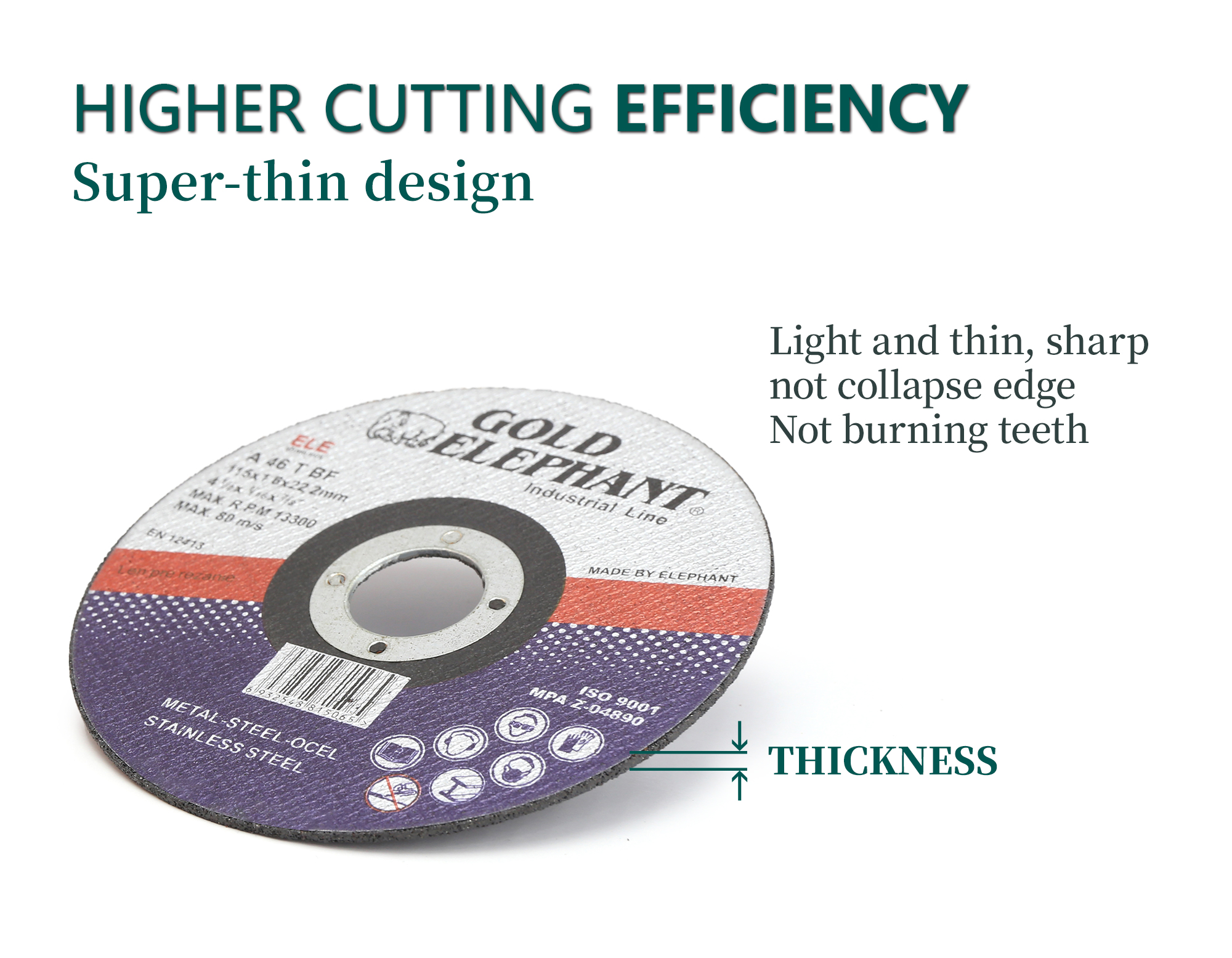

- Super-thin profile
- Certifications
- ISO 9001MPA Z-04890EN 12413
Applications
Compatible Materials
MetalSteelStainless Steel
