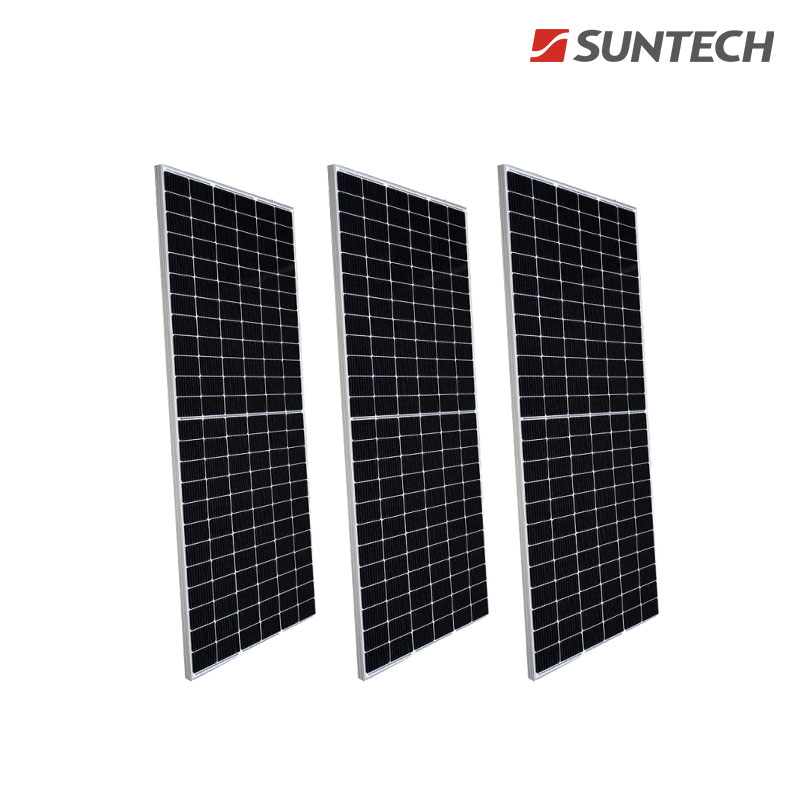

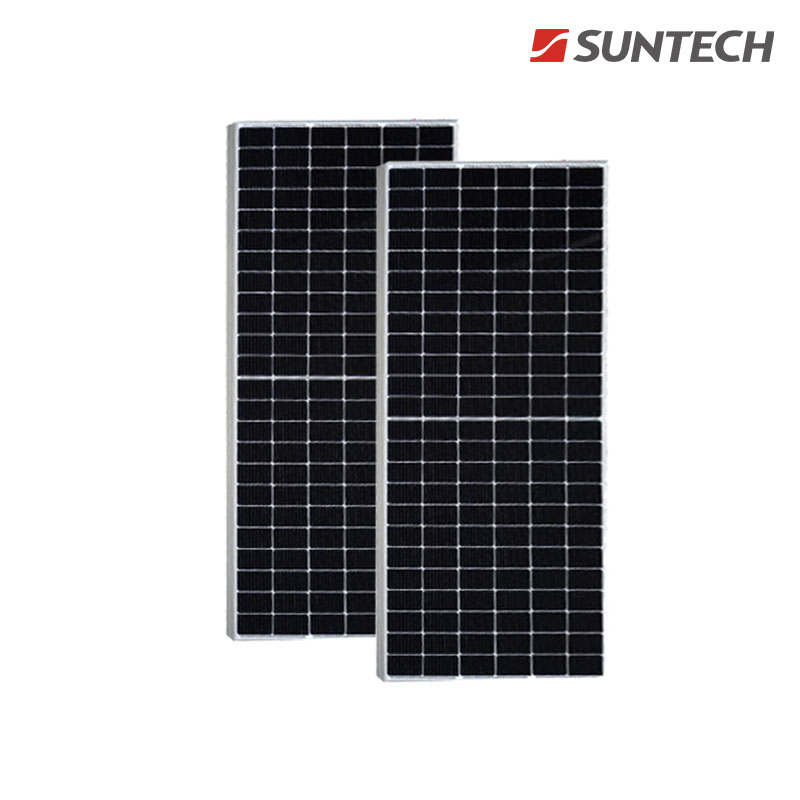

440W Monocrystalline Solar Panel for Power Generation
This 440W monocrystalline solar panel is designed for efficient power generation in solar power systems. Its Tier One PV technology ensures reliable performance and long-term durability.
Technical Specifications
Product Overview
High-Efficiency Solar Power Solution
This 440W monocrystalline solar module is engineered with 144 half-cut cells to deliver superior power output and exceptional performance in low-light conditions. Designed for both residential and utility-scale projects, the module features advanced cell technology to minimize mismatch losses and enhance overall energy conversion efficiency. With its rugged construction and industry-leading performance warranty, it provides a reliable, sustainable power solution even in demanding environmental conditions like coastlines and arid regions.

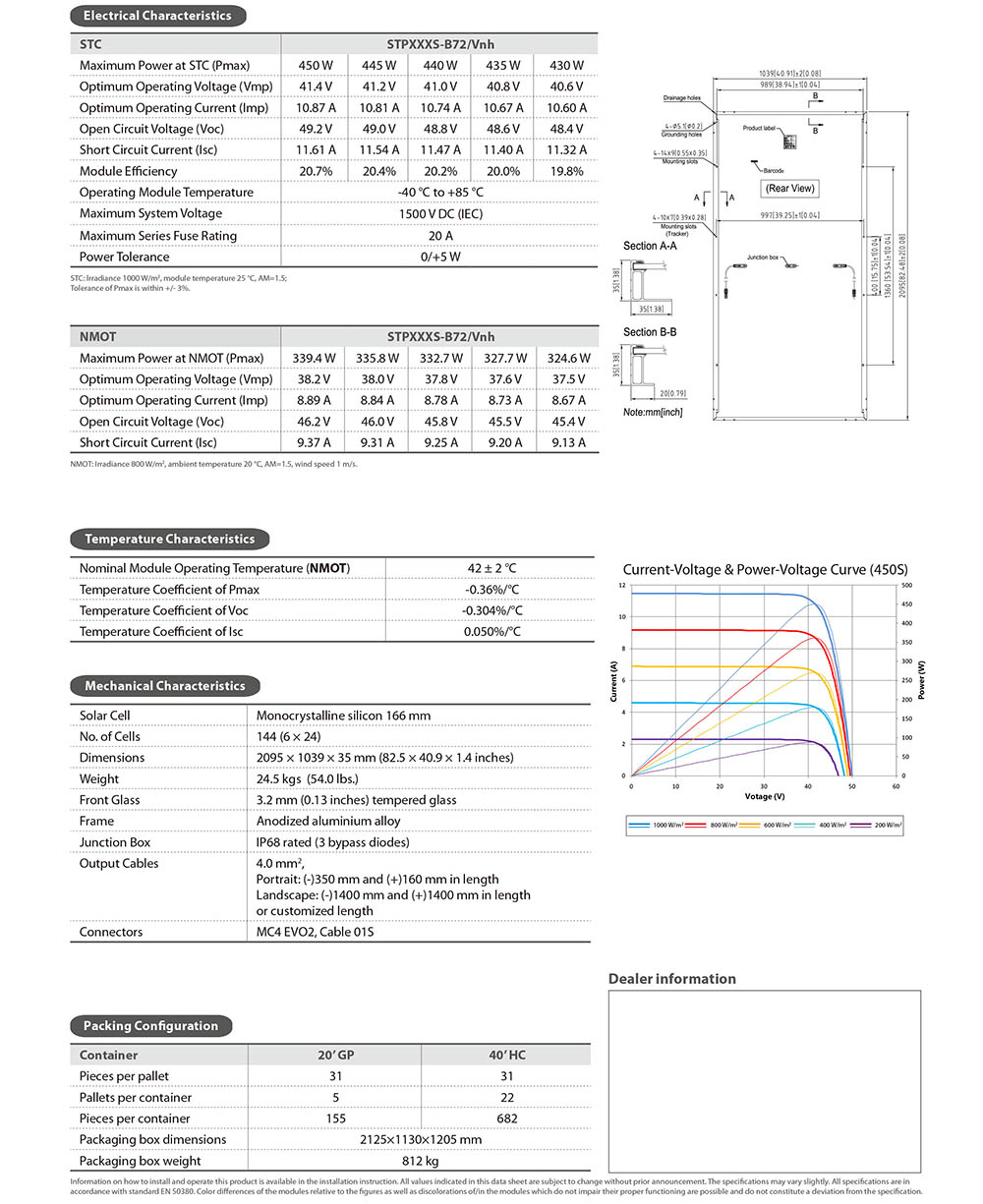

Electrical Performance
Performance Metrics (STC)
440 W
Maximum Power (Pmax)
20.2 %
Module Efficiency
48.8 V
Open Circuit Voltage (Voc)
11.47 A
Short Circuit Current (Isc)
Operating Characteristics
| Parameter | Value |
|---|---|
| Max System Voltage | 1500 V DC |
| Max Series Fuse Rating | 20 A |
| Power Tolerance | 0/+5 W |
| NMOT Max Power | 332.7 W |
Mechanical Data
Physical Construction
- Dimensions: 2095 x 1039 x 35 mm
- Weight: 24.5 kg
- 144 Monocrystalline silicon 166 mm cells
- 3.2 mm tempered front glass
- Anodized aluminum alloy frame
- IP68 rated junction box with 3 bypass diodes
Compliance and Reliability
Warranty Period
- 12-year product warranty
- 25-year linear performance warranty
- 98% power output in first year
- 84.8% power output at 25th year
- Certifications & Standards
- IEC 61215IEC 61730ISO 9001ISO 14001ISO 45001CETUV NORD
