440W Monocrystalline Half-Cell Solar Panel
This 440W solar panel uses monocrystalline half-cut cells to maximize light capture and energy conversion efficiency. It is designed for durability and high power output in a variety of solar energy applications.
Technical Specifications
Product Overview
High-Efficiency 440W Monocrystalline Solar Solution
This 440W monocrystalline solar panel utilizes advanced half-cut cell technology to maximize energy conversion and minimize power loss from shading. Engineered for durability in diverse environments, it features a robust anodized aluminum frame and high-transmission tempered glass. Ideal for residential, commercial, and industrial applications, this panel provides a reliable, high-output solution for both grid-tied and off-grid solar energy systems.
Key Performance Metrics
Performance Highlights
440 W
Peak Power (Pmax)
22.3 %
Cell Efficiency
19.81 %
Module Efficiency
Electrical Specifications (STC)
Standard Test Conditions Data
| Parameter | Value |
|---|---|
| Maximum Power Voltage (Vmp) | 41.00V |
| Maximum Power Current (Imp) | 10.74A |
| Open Circuit Voltage (Voc) | 49.60V |
| Short Circuit Current (Isc) | 11.33A |

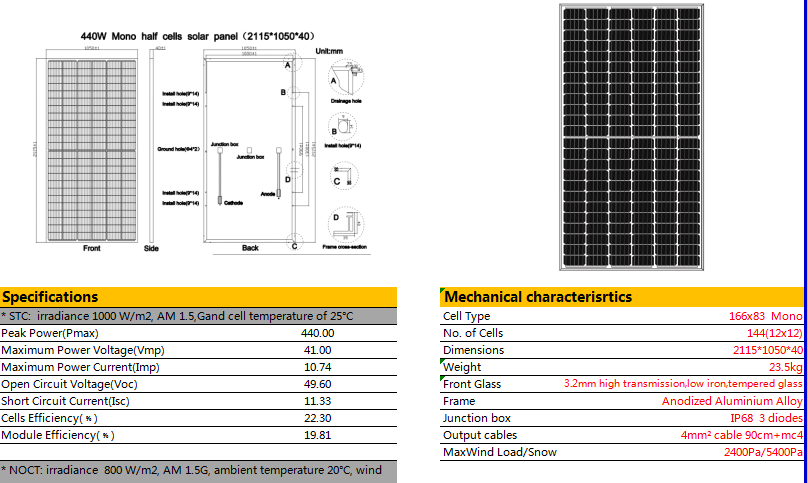

Mechanical Characteristics
Cell Configuration
- Cell Type: 166x83mm Monocrystalline
- Number of Cells: 144 (12x12)
- Glass: 3.2mm High Transmission, Low Iron, Tempered Glass
- Frame: Anodized Aluminium Alloy
- Physical Dimensions
- 2115 x 1050 x 40 mm
- Weight
- 23.5 kg
Technical Features
Junction Box Rating
IP683 Diodes
Mechanical Load Capacity
- Max Wind Load: 2400 Pa
- Max Snow Load: 5400 Pa
- Output Cables
- 4mm² cable 90cm + MC4 connectors
Warranty
Warranty Coverage
- 12 Years Guarantee on product material and workmanship
- 30 Years Linear Power output warranty
