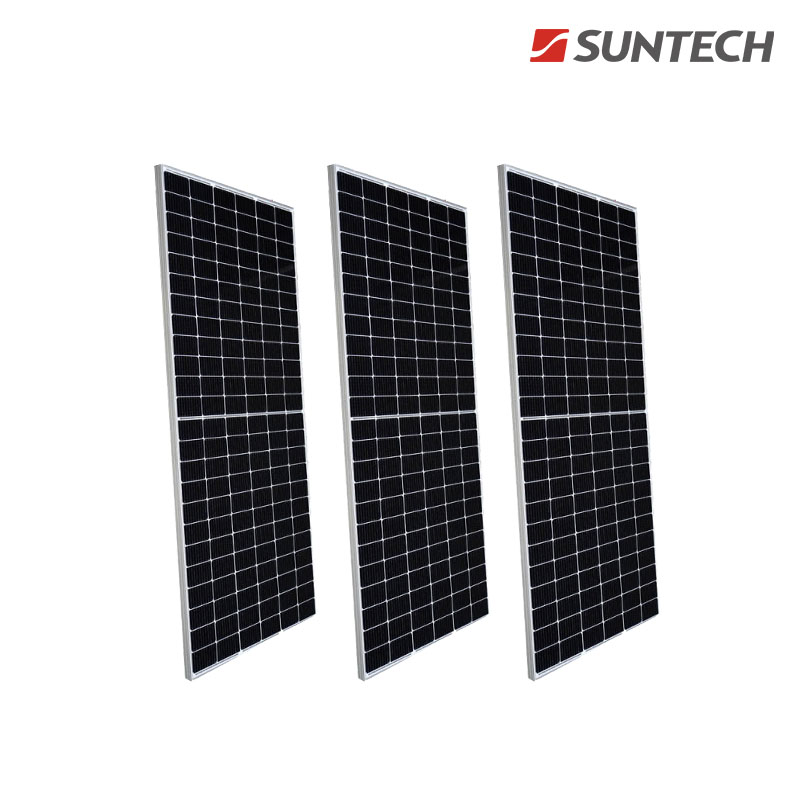

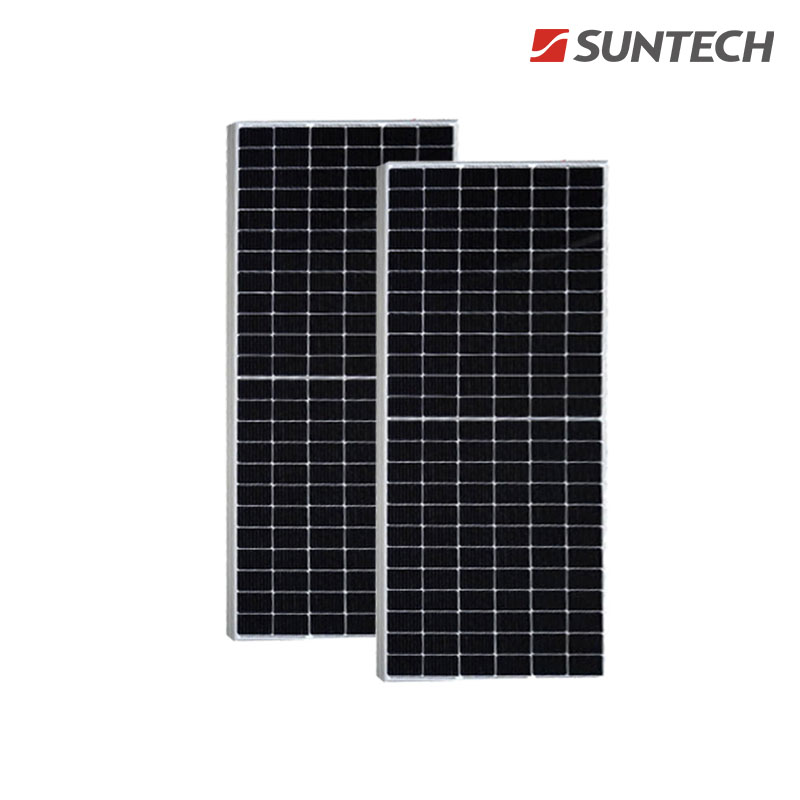

435W Monocrystalline Solar Panel for Power Systems
This 435W monocrystalline solar panel is engineered for solar power systems. It provides a sustainable energy solution with excellent power output and long-term stability.
Technical Specifications
Product Overview

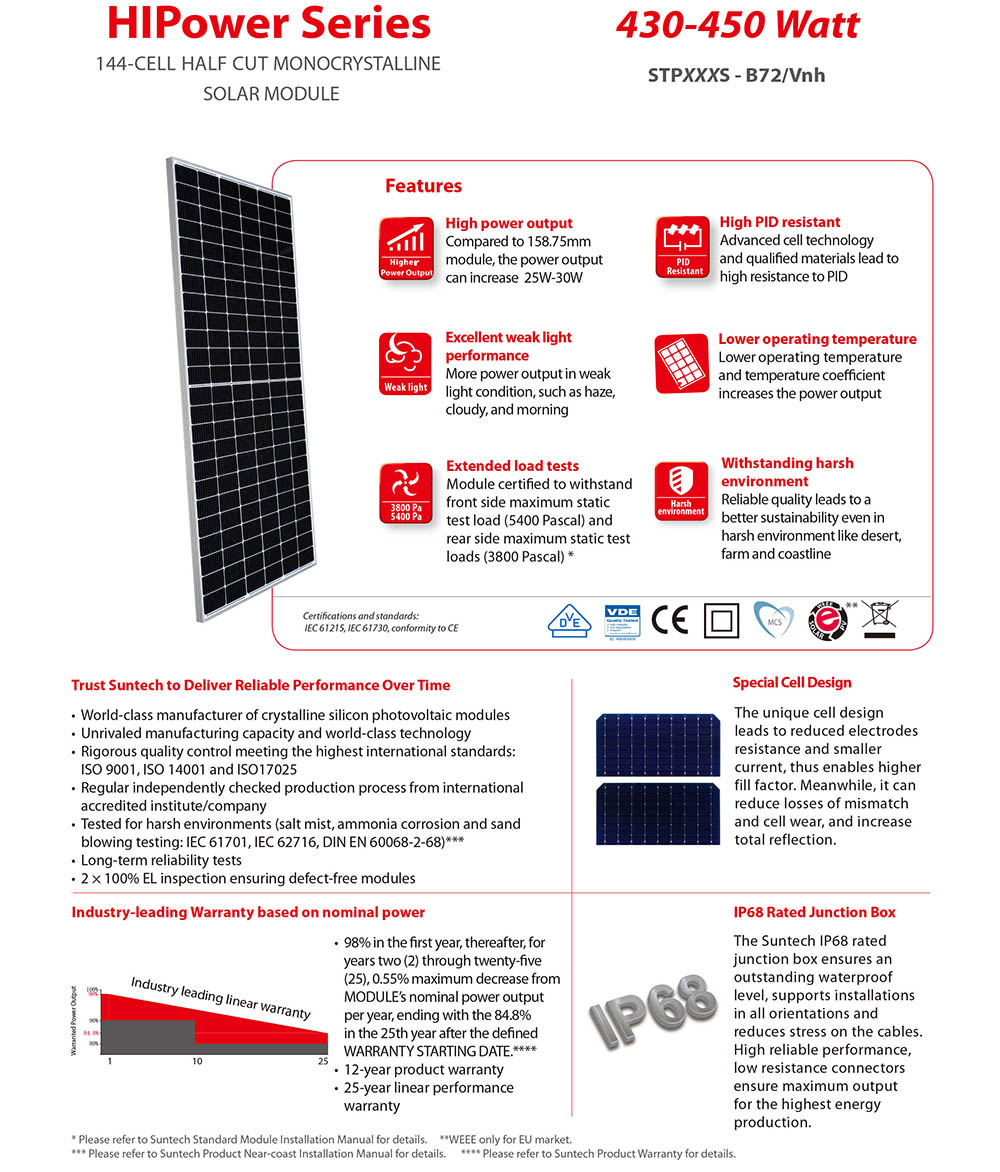

High-Efficiency 435W Monocrystalline Solar Module
This 144-cell half-cut monocrystalline solar module is engineered for maximum power output and durability in diverse environments. With a power range of 435W-440W, it offers advanced cell technology that minimizes mismatch losses and maximizes performance even in weak light conditions such as haze or cloudy weather. Its robust design is certified to withstand significant static loads and harsh environmental conditions, making it an ideal choice for residential, commercial, and utility-scale solar installations.
Electrical Performance

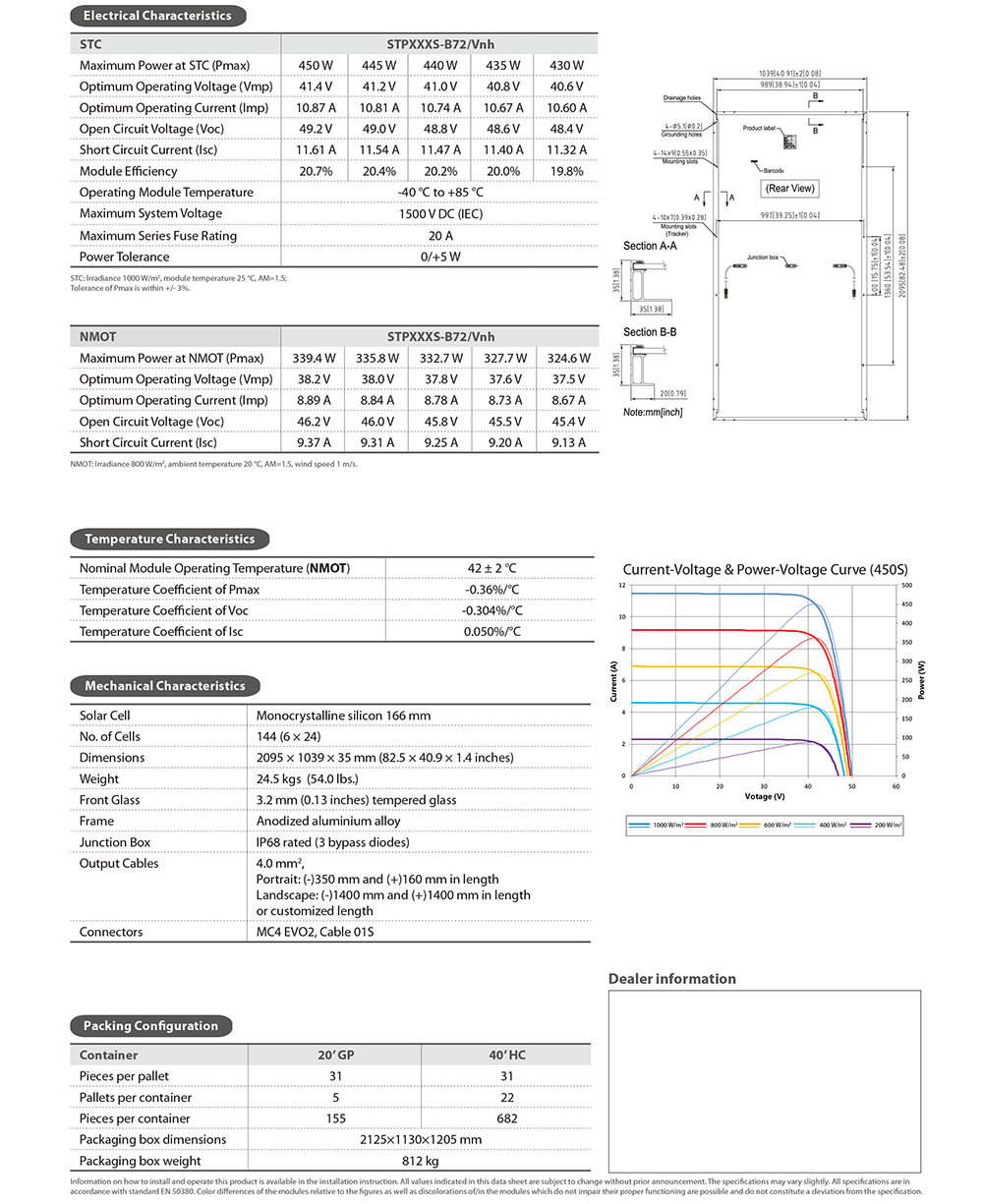

Electrical Characteristics (STC)
| Parameter | Value |
|---|---|
| Maximum Power (Pmax) | 435 |
| Optimum Operating Voltage (Vmp) | 40.8 |
| Optimum Operating Current (Imp) | 10.67 |
| Open Circuit Voltage (Voc) | 48.6 |
| Short Circuit Current (Isc) | 11.4 |
Technical Specifications
Key Technical Metrics
20 %
Module Efficiency
1,500 V DC
Max System Voltage
20 A
Max Series Fuse
42 °C
NMOT
Physical Characteristics
- Dimensions: 2095 x 1039 x 35 mm
- Weight: 24.5 kg
- Cells: 144 (6 x 24) Monocrystalline silicon
- Glass: 3.2 mm tempered glass
- Frame: Anodized aluminium alloy
- Junction Box: IP68 rated with 3 bypass diodes
Certifications & Compliance
- Standards and Certifications
- IEC 61215IEC 61730CEPID ResistantSalt Mist Corrosion Tested
Warranty
Warranty Terms
- 12-year product warranty
- 25-year linear performance warranty
- 98% power output in the first year
- Maximum 0.55% annual degradation years 2-25
