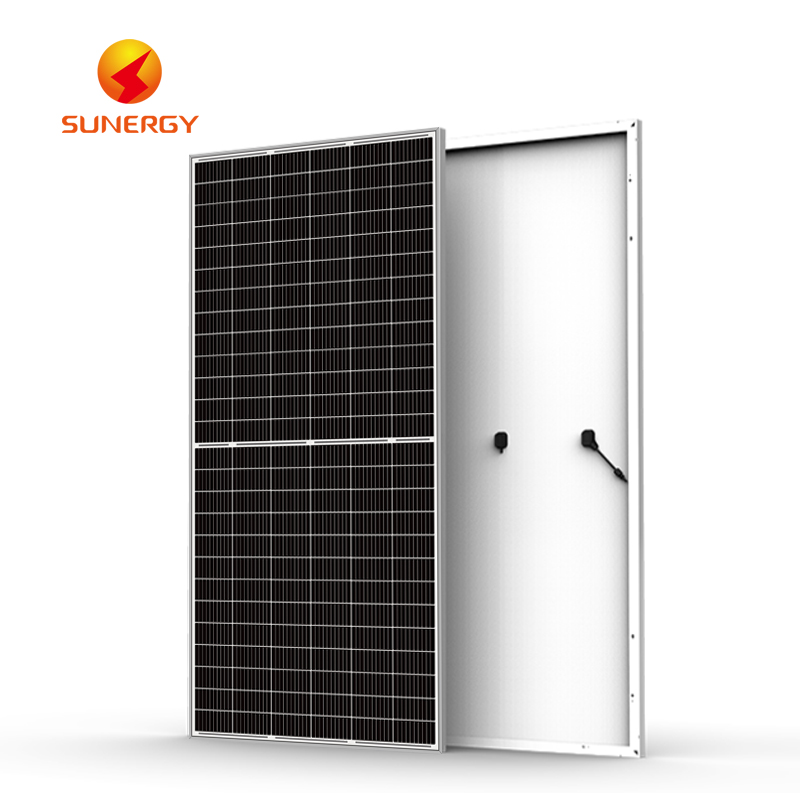

420-460W Black 9BB Half-Cell Solar Panel
This solar module is assembled with multi-busbar PERC cells, offering higher power output. The half-cell configuration reduces energy loss caused by shadows and provides better anti-shading performance.
Technical Specifications
Product Overview
High-Efficiency Solar Module
This black 9BB half-cell solar module is engineered to deliver high performance with an output range of 420W to 460W. Its half-cell design reduces internal resistive losses, enhancing energy conversion efficiency and overall system reliability. Designed with aesthetics and durability in mind, it is an ideal solution for both residential and commercial solar installations.
Technical Specifications
- Cell Type
- Mono Crystalline
- Number of Cells
- 156
- Configuration
- 6x24 Half-Cell
- Busbar Technology
- 9BB
Physical Properties
- Dimensions
- 2185 x 1004 x 40 mm
- Weight
- 25 kg
- Front Glass
- 3.2mm Tempered Low Iron Glass
- Frame
- Anodised Aluminium
Electrical Connectivity
- Junction Box
- Split Junction Box (IP68, three diode)
- Connector
- MC4 Compatible
- Output Cables
- 4.0mm2, 300mm length
