42 Series Brushless DC Motor
This brushless DC motor delivers high torque up to 0.25Nm. It features a wide speed range, high efficiency, and long service life.
Technical Specifications
Overview
High-Efficiency 42 Series BLDC Motor
The 42 Series Brushless DC Motor is designed for high-performance applications requiring high torque up to 0.25Nm and a wide speed range. These motors offer exceptional efficiency and a long service life, making them ideal for precision motion control in robotics and automation. With a compact square flange design and multiple power options, they provide a versatile solution for modern industrial needs.
Key Performance Metrics
Performance Highlights
24 V
Operating Voltage
5,000 rpm
No Load Speed
0.25 Nm
Max Rated Torque
100 W
Max Rated Power
General Specifications
Insulation Class
Class B
- Winding Type
- Star
- Hall Effect Angle
- 120 degree electrical angle
- Operating Temperature
- -20 to +40℃
- Dielectric Strength
- 500VDC for one minute
Electrical Data by Model
Model Comparison
| Model | Rated Power (W) | Rated Torque (Nm) | Rated Current (A) | Resistance (ohm) |
|---|---|---|---|---|
| 42DMW41-2440 | 25 | 0.063 | 1.7 | 1.5 |
| 42DMW51-2440 | 40 | 0.096 | 2.4 | 1 |
| 42DMW61-2440 | 50 | 0.125 | 3.5 | 0.74 |
| 42DMW81-2440 | 75 | 0.18 | 4.6 | 0.56 |
| 42DMW101-2440 | 100 | 0.25 | 6 | 0.4 |
Wiring & Connectivity
Lead Wire Configuration
| Lead No. | Color | Gauge | Function |
|---|---|---|---|
| 1 | RED | 20AWG UL1569 | Phase U |
| 2 | YEL | 20AWG UL1569 | Phase V |
| 3 | BLA | 20AWG UL1569 | Phase W |
| 4 | RED | 26AWG UL1569 | +5V |
| 5 | BLU | 26AWG UL1569 | Hall A |
| 6 | GRE | 26AWG UL1569 | Hall B |
| 7 | WHI | 26AWG UL1569 | Hall C |
| 8 | BLA | 26AWG UL1569 | GND |

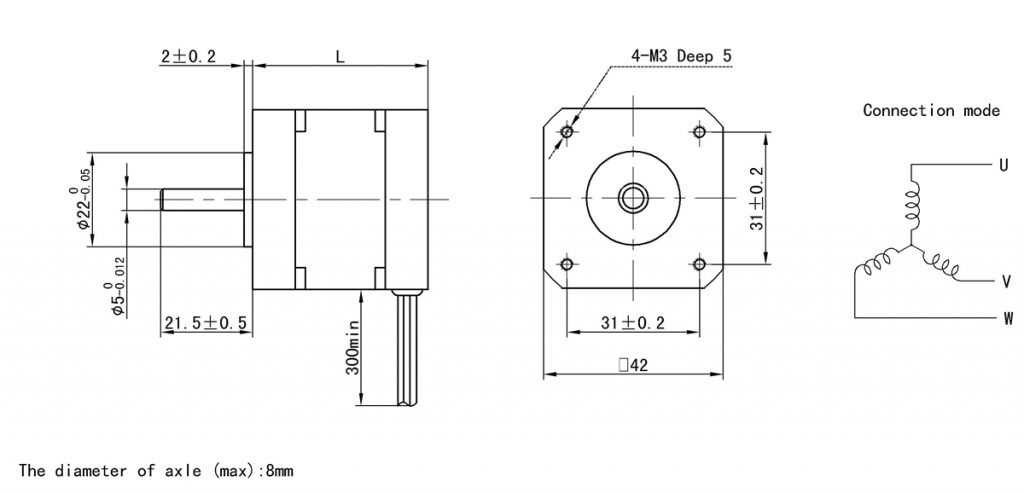

Mechanical Dimensions
Mounting Features
- 4-M3 Deep 5 mounting holes
- 31mm x 31mm mounting hole spacing
- 42mm square flange
- 5mm shaft diameter
- 300mm minimum lead length
- Shaft Run Out
- 0.025 mm
