40W Integrated Solar Street Light
This integrated solar street light combines a solar panel, LED lamp, and LiFePO4 battery. It uses a human intelligence induction system to automatically manage the lighting mode.
Technical Specifications
Overview
Integrated Solar Lighting Solution

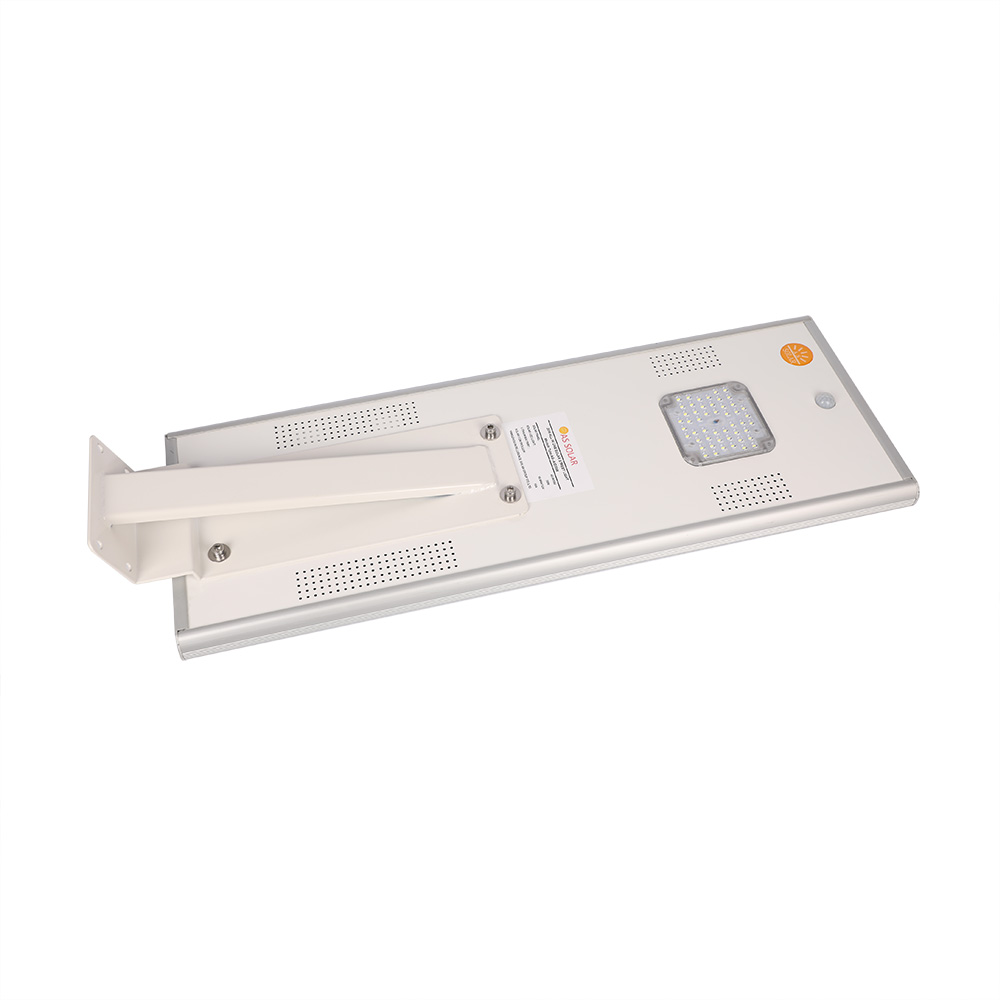

This 40W all-in-one solar street light integrates a high-efficiency solar panel, LED lamp, and LiFePO4 battery into a single, compact unit. Designed for professional B2B applications, it features an intelligent induction system that automatically controls lighting modes based on human presence. This sustainable solution is ideal for streets, parking lots, and pathways, offering easy 3-minute installation and autonomous operation.
Key Performance Metrics
Key Performance Metrics
40 W
Power Output
160 LM/W
Max Luminous Efficacy
20 J
Impact Resistance
5 Days
Battery Backup
Light Source & Optics
- LED Chip Type
- Cree Chip
- Luminous Efficacy Range
- 140 LM/W - 160 LM/W
- Brightness Performance
- 10%-20% brighter than conventional market lamps
Solar & Battery System

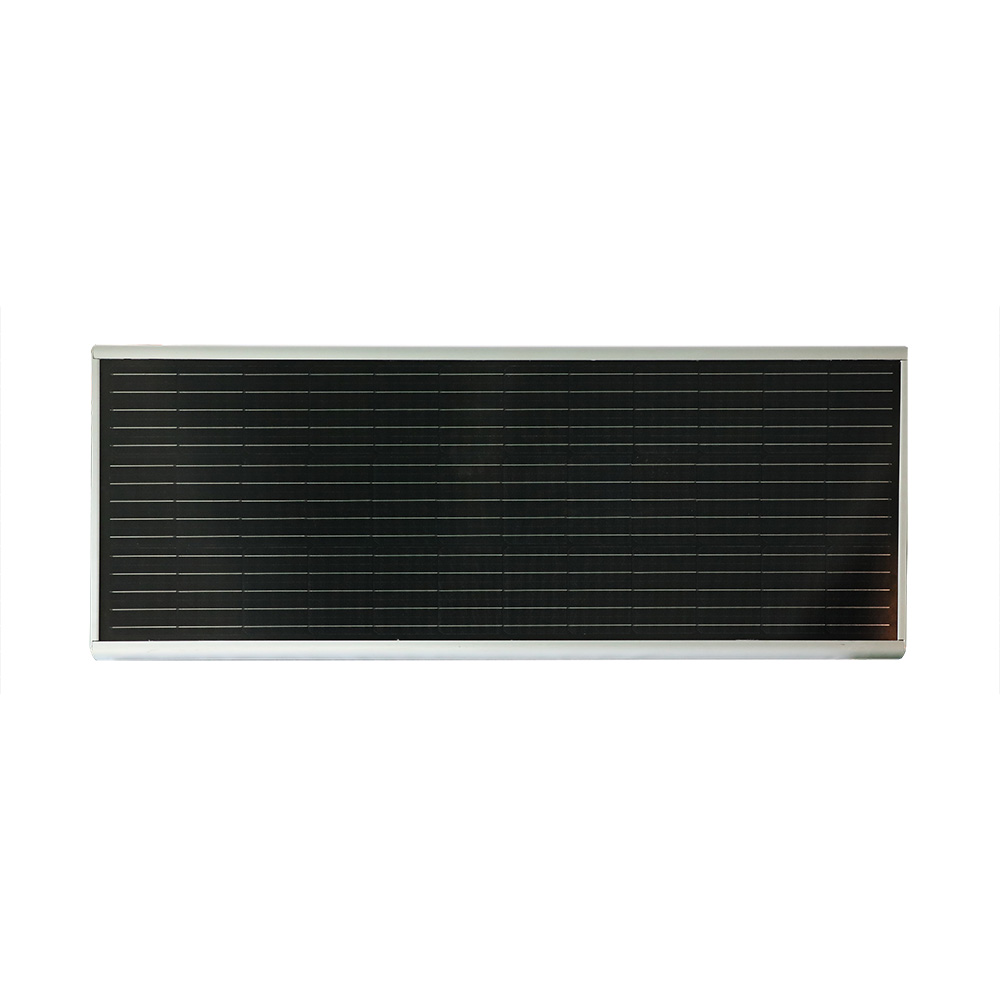

Solar Panel Details
- A-grade Sun-power cells
- Cell efficiency ≥ 18.9%
- Integrated top-mount design
- Battery Technology
- High-quality Lithium (LiFePO4)
- Controller Technology
- PWM Solar Controller with IP68 waterproofing
Construction & Durability
Protection Ratings
| Feature | Rating |
|---|---|
| Waterproof Degree (Light) | IP66 |
| Waterproof Degree (Controller) | IP68 |
| Impact Resistance | IK10 (20 Joules) |

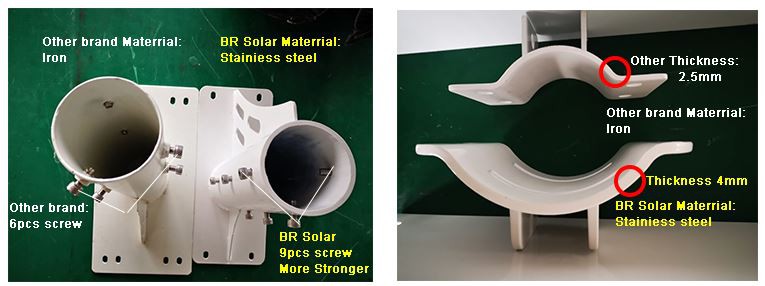

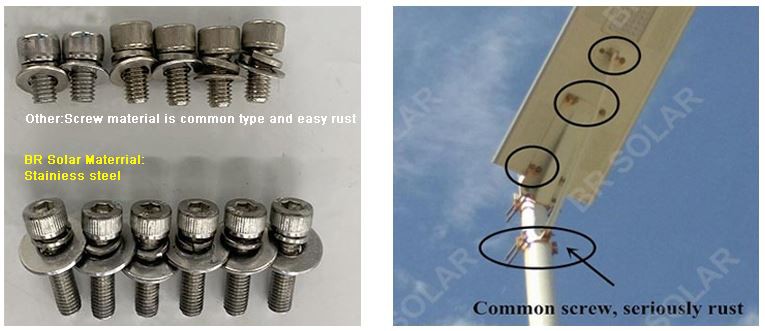

| Hardware Material | Stainless Steel (Rust-proof) |

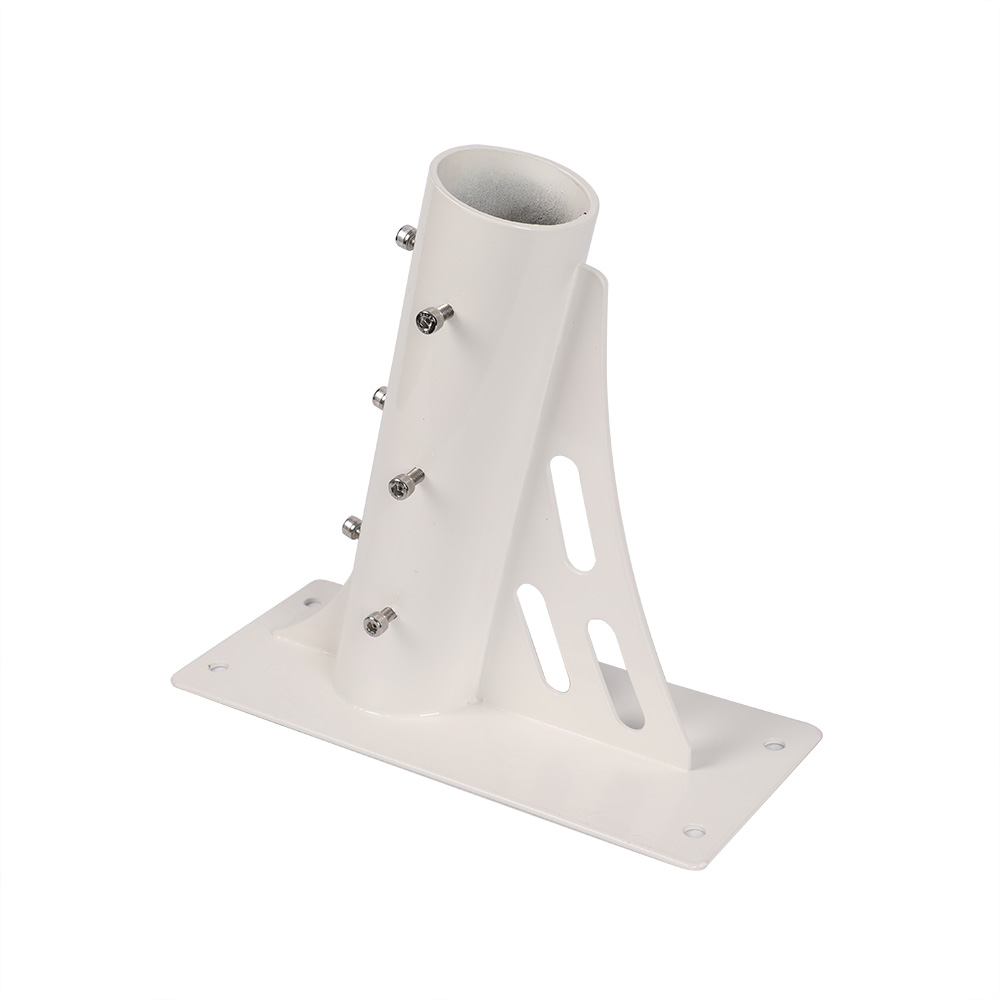

Pole Construction
- Material: High-quality Q235 Steel
- Finish: Hot-dip galvanized and plastic coated
- Design: Four strengthening ribs on base plate
- Lifespan: More than 20 years
- Frame Material
- Aluminum Alloy

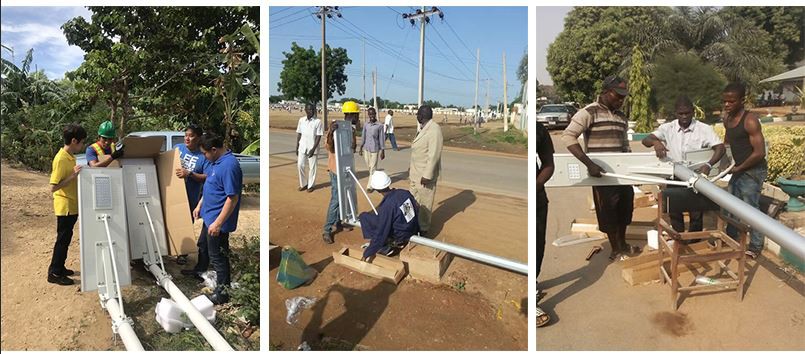

Installation & Service
- Installation Speed
- Approximately 3 minutes per set
- Warranty
- 3-5 years
Compliance
- Quality Certifications
- CERoHSIECTUVFCCSONCAPSASOCCCISO 9001:2000IP66
