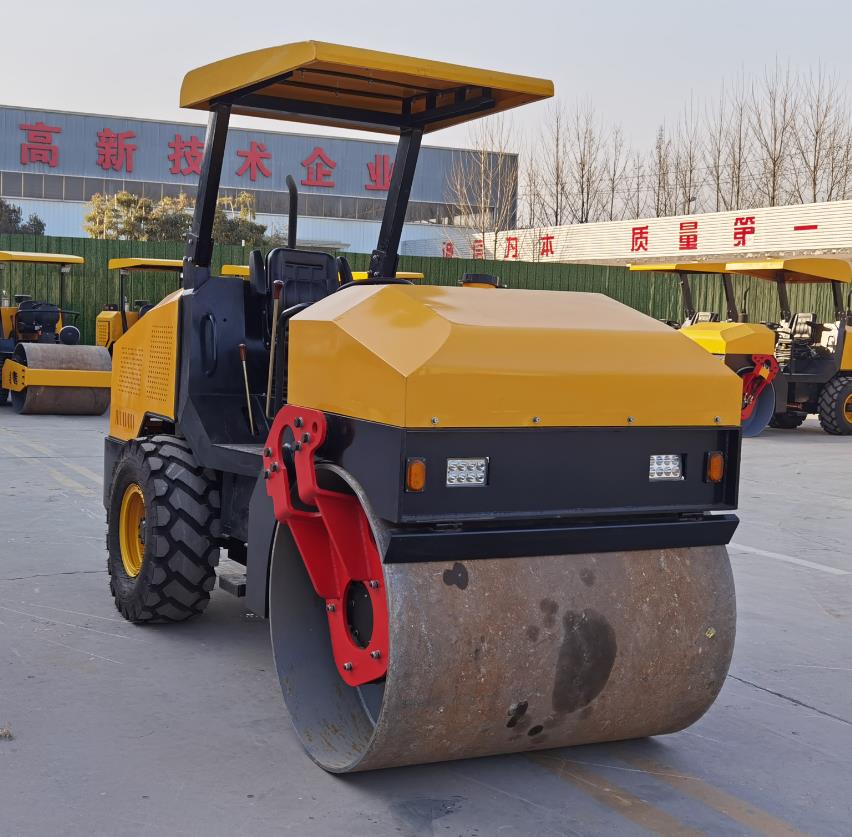

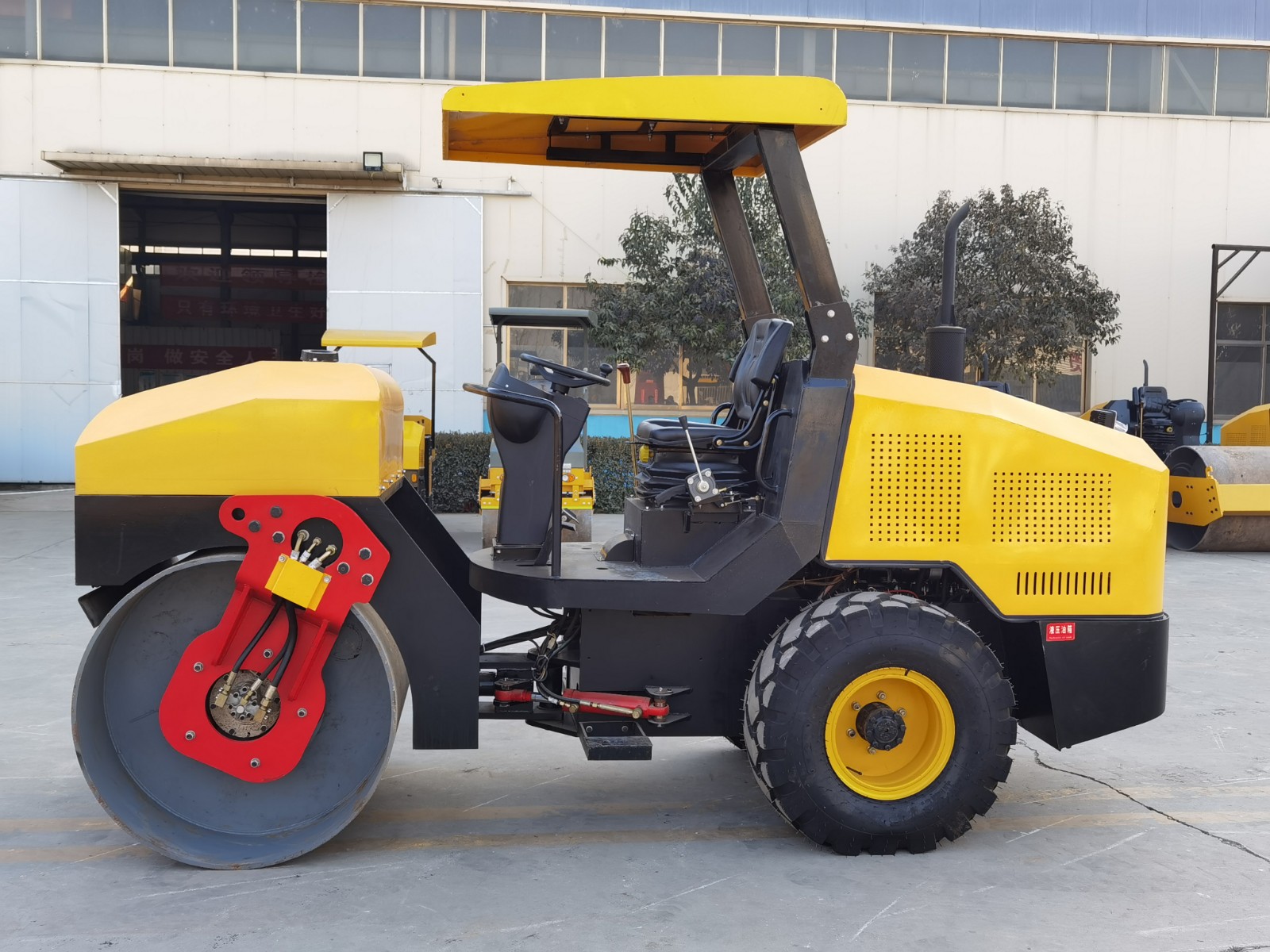

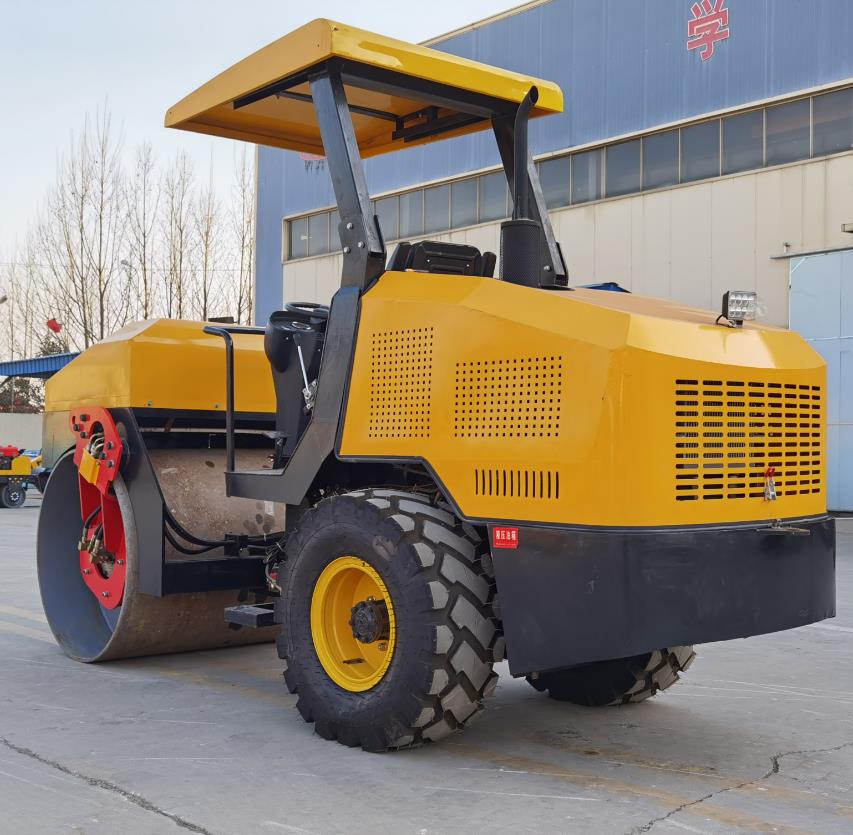

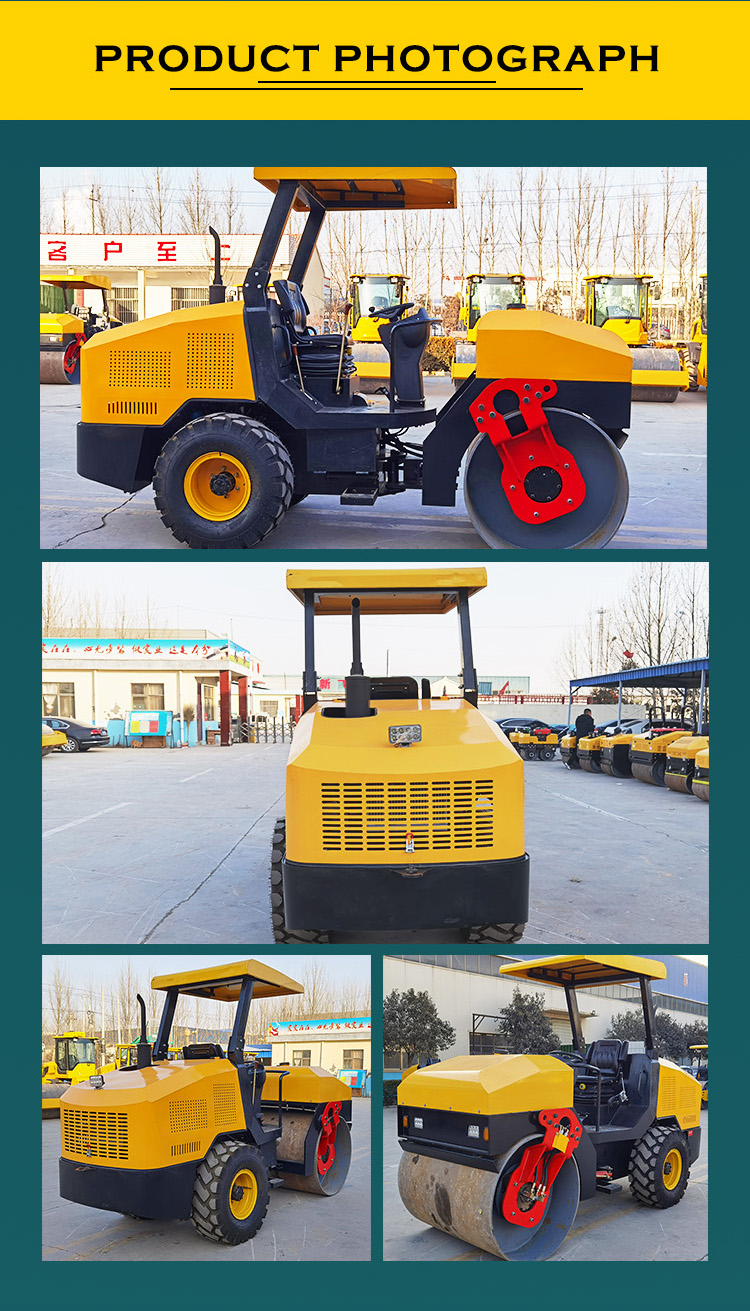

4-Ton Single Drum Vibratory Roller
This 4-ton single drum vibratory roller features a front steel drum for vibration and rear rubber wheels for drive, delivering strong power and superior performance. It is designed for efficient compaction with low maintenance costs.
Technical Specifications
Overview
Professional Compaction Performance
This 4-ton single drum vibratory roller is engineered for demanding road construction and maintenance tasks. It features a robust steel drum for superior soil and asphalt consolidation, paired with a reliable diesel engine to deliver consistent power. Designed for both maneuverability and stability, the unit offers a user-friendly operator station with intuitive controls to ensure high efficiency on small to medium-scale project sites.
Performance Metrics
Key Performance Metrics
60 kN
Exciting Force
60 Hz
Vibration Frequency
12 km/h
Max Walking Speed
4,000 kg
Working Weight
Technical Specifications
Drum Dimensions
| Specification | Value |
|---|---|
| Diameter | 1000 mm |
| Width | 1300 mm |
- Engine Model
- C490
- Overall Dimensions (L x W x H)
- 3900 x 1370 x 2650 mm
Operational Details
Maneuverability Stats
- Turning Radius: 4000mm
- Gradeability: 0.3
- Static Line Load: 140 N/cm
- Nominal Amplitude: 0.5mm
Applications
- Suitable Applications
- Asphalt PavementSoil CompactionPipeline Gully BackfillingFoundation PreparationLawn CompactionRoadside Maintenance
