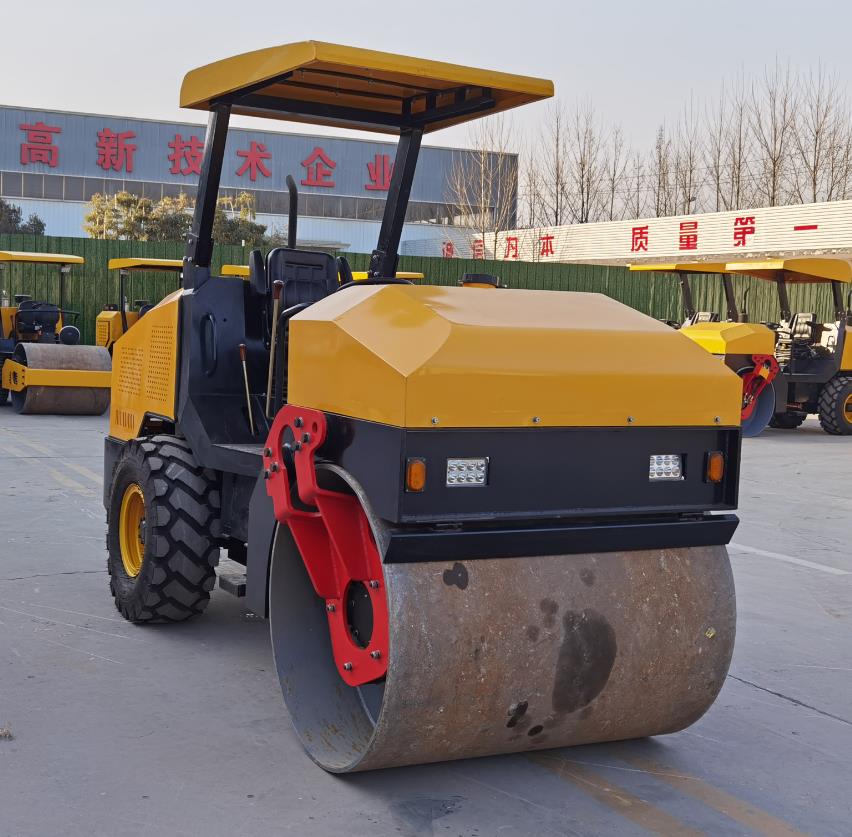

4-Ton Single Drum Vibratory Road Roller
This 4-ton vibratory road roller features a single drum for compaction and double rear rubber wheels for drive power. It delivers strong performance and high compaction with low maintenance costs.
Technical Specifications
Overview
High-Performance 4-Ton Compactor

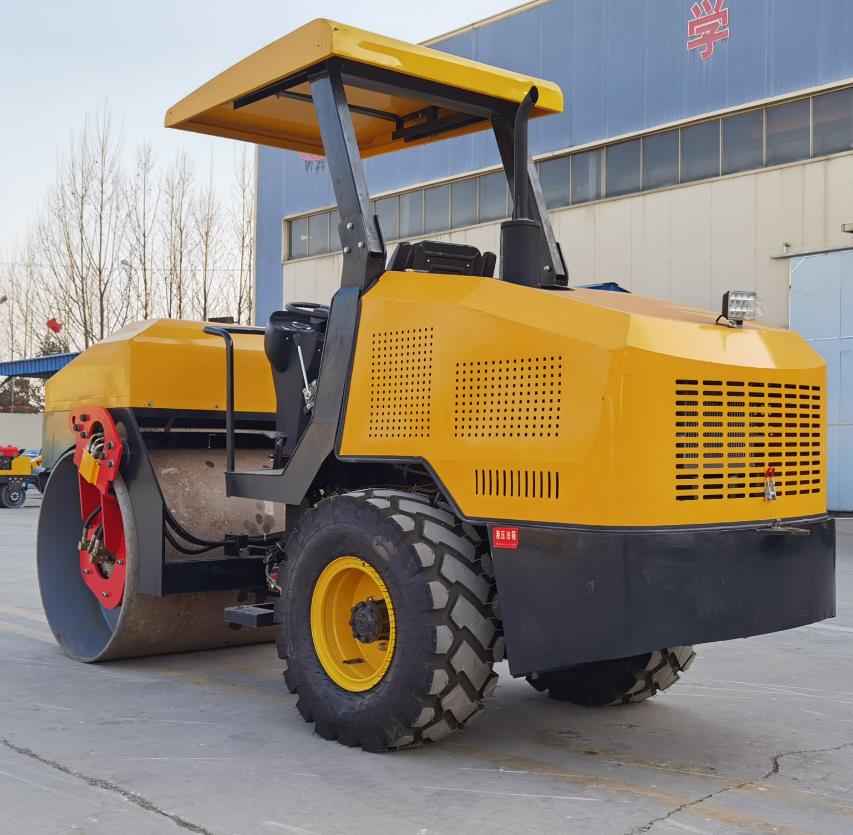

This 4-ton single drum vibratory road roller is designed for superior performance in soil and asphalt compaction. It features a front vibrating steel wheel paired with rear double rubber drive wheels, providing strong power and high compaction efficiency. With low maintenance costs and a robust design, it is an ideal solution for road construction, maintenance, and site preparation projects.
Performance Metrics
Key Performance Metrics
60 KN
Exciting Force
4,000 kg
Working Weight
60 Hz
Vibration Frequency
12 km/h
Walking Speed
Engine & Drive
- Engine Model
- C490
- Gradeability
- 0.3
Compaction System
- Nominal Amplitude
- 0.5 mm
- Static Line Load
- 140 N/CM
Dimensions & Maneuverability
Steel Drum Specifications
- Diameter: 1000mm
- Width: 1300mm
- Overall Dimensions
- 3900 x 1370 x 2650 mm
- Turning Radius
- 4000 mm
- Wheel Base
- 2150 mm
Applications
- Applicable Scenarios
- Asphalt PavementPipeline GullyLawn CompactionConstruction SiteFoundation CompactionRoadside Compaction
