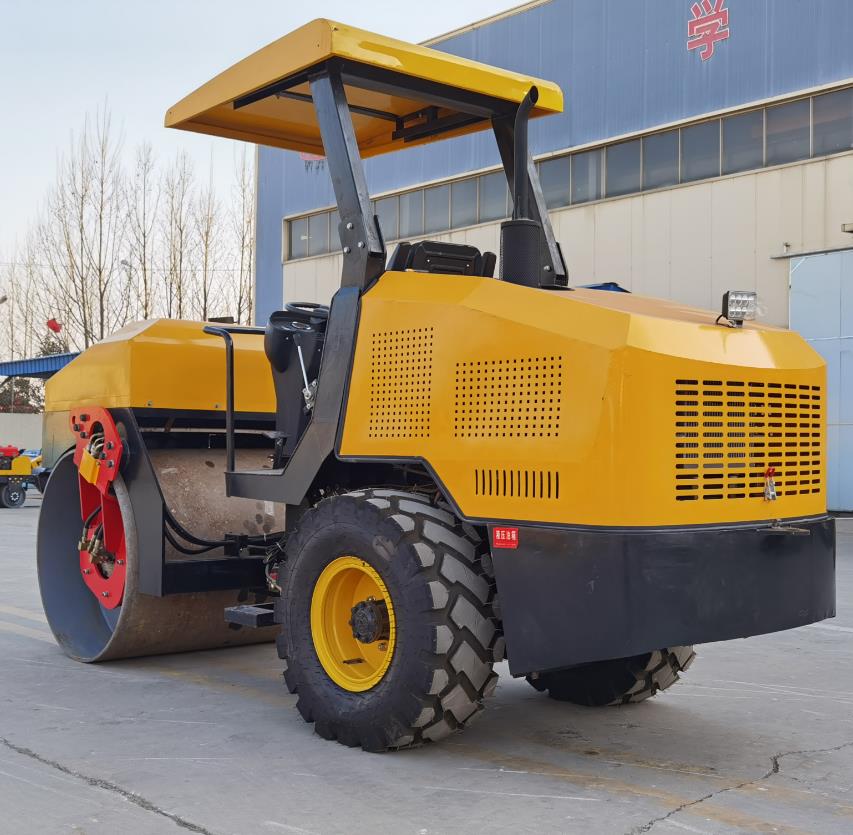

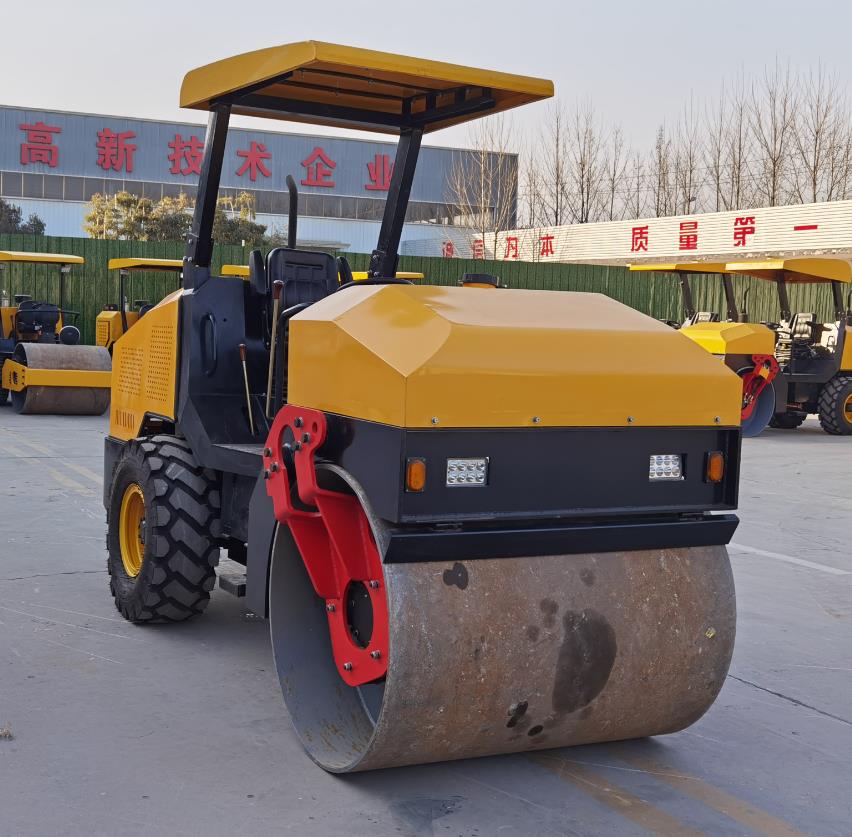

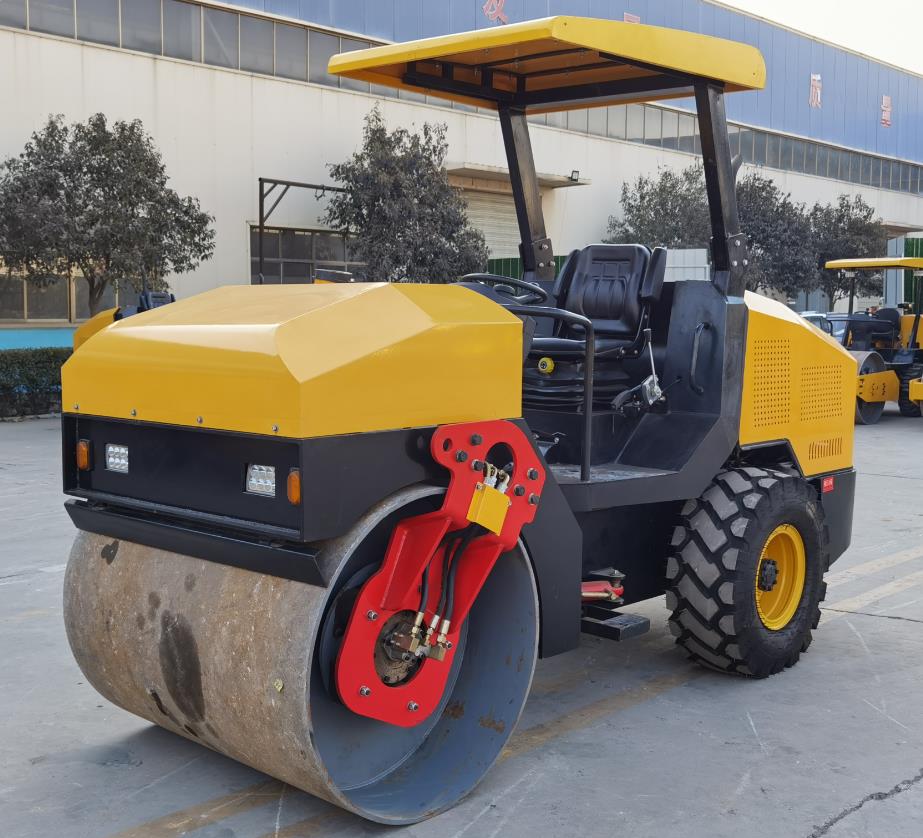

4-Ton Single Drum Vibratory Road Roller
This 4-ton single drum vibratory road roller features a front vibrating steel drum and rear double rubber wheels. It delivers strong power, superior performance, and high compaction for various construction applications.
Technical Specifications
Overview
High-Performance 4-Ton Road Compactor
This 4-ton single drum vibratory road roller is designed for superior compaction performance with a front steel wheel for vibration and rear double rubber wheels for driving. It offers a powerful solution for soil and asphalt projects with low maintenance costs and high efficiency. Ideal for medium-sized construction, road maintenance, and landscaping, it combines maneuverability with robust compaction force.
Performance Metrics
Key Performance Metrics
4,000 kg
Working Weight
60 KN
Exciting Force
60 HZ
Vibration Frequency
12 km/h
Walking Speed
Technical Specifications
- Engine & Drive
- C490 Engine Model
- Gradeability
- 0.3
- Nominal Amplitude
- 0.5 mm
- Static Line Load
- 140 N/CM
Dimensions & Maneuverability
Drum & Wheel Base
| Component | Measurement |
|---|---|
| Steel Wheel Diameter | 1000 mm |
| Steel Wheel Width | 1300 mm |
| Wheel Base | 2150 mm |
| Turning Radius | 4000 mm |
- Overall Dimensions
- 3900 x 1370 x 2650 mm
Applications
- Applicable Scenarios
- Asphalt PavementPipeline GullyLawn CompactionConstruction SiteFoundation CompactionRoadside Compaction
Key Features
Core Advantages
- Front single steel wheel vibration for deep compaction
- Rear double rubber wheel drive for enhanced traction
- Low maintenance cost design
- High compaction efficiency for soil and asphalt
- Compact maneuverability for confined spaces
