4-Inch Metal Grinding Wheel

This 4-inch grinding wheel is designed for metal grinding applications. It features A36 Q8 BF abrasive for efficient material removal.

Request a Quote Download PDFPDF

ELE Star Factory Price 4 inch grinding wheel 100mm grinding disc for metal - Image 1

Technical Specifications

Product Overview

High-Performance Metal Grinding Wheel

This 4-inch reinforced grinding disc is engineered for efficient material removal and reliable performance in metalworking applications. Designed with high-quality abrasive grains and double-net fiberglass reinforcement, it offers excellent durability and enhanced safety during operation. It is an ideal choice for cutting and grinding tasks in various industrial sectors, including machinery, automotive, and ship-building.

Technical Specifications

Dimensions

100 mm

Diameter

3 mm

Thickness

16 mm

Arbor Size

Performance Ratings

15,200 RPM

Max RPM

80 m/s

Max Speed

Abrasive Grade: A36 Q8 BF

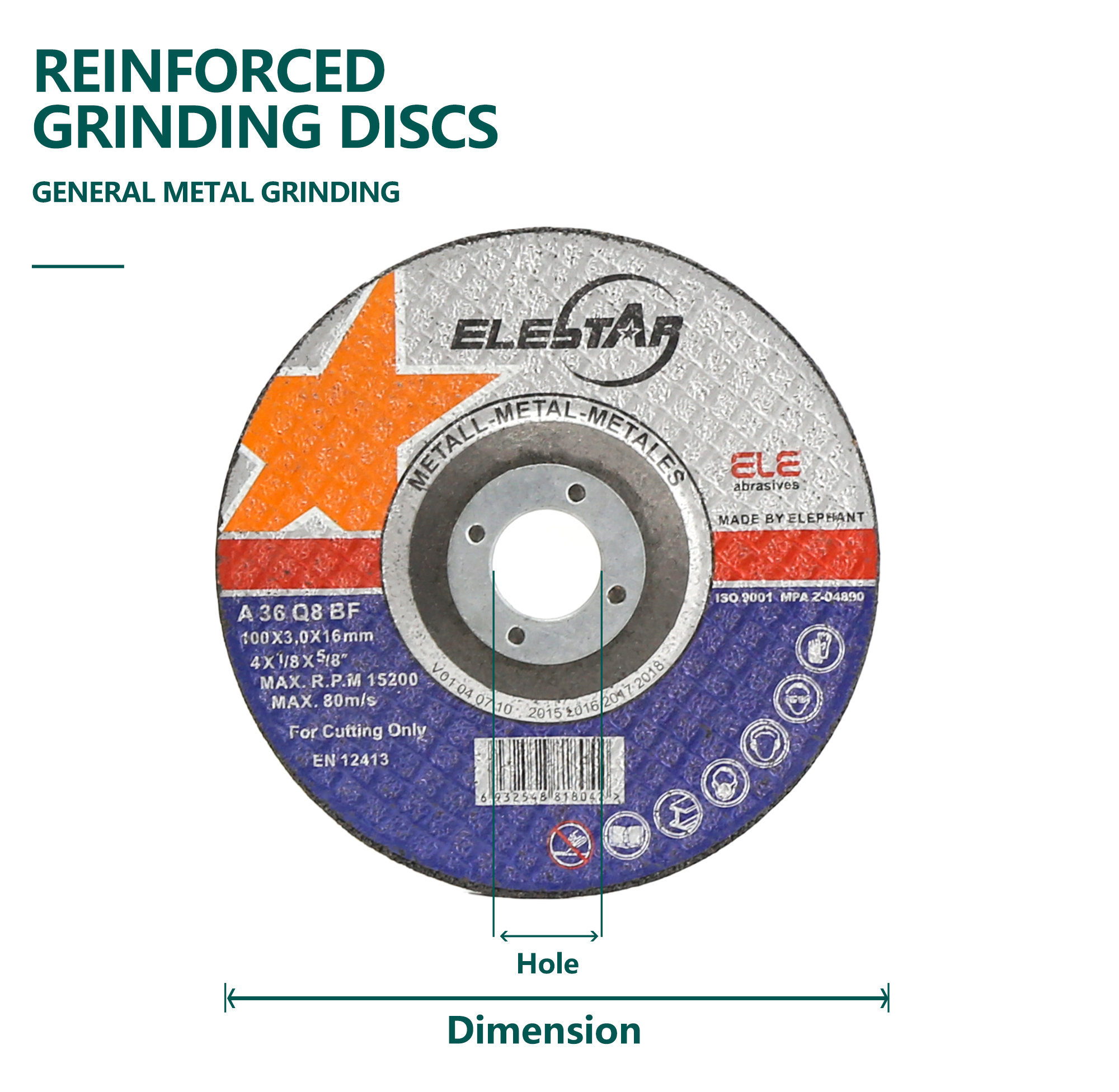

Reinforced grinding disc showing technical specifications and safety standards — Technical specifications and safety compliance markings on the grinding disc.

Compliance & Safety

Certifications: EN 12413ISO 9001MPA Certified

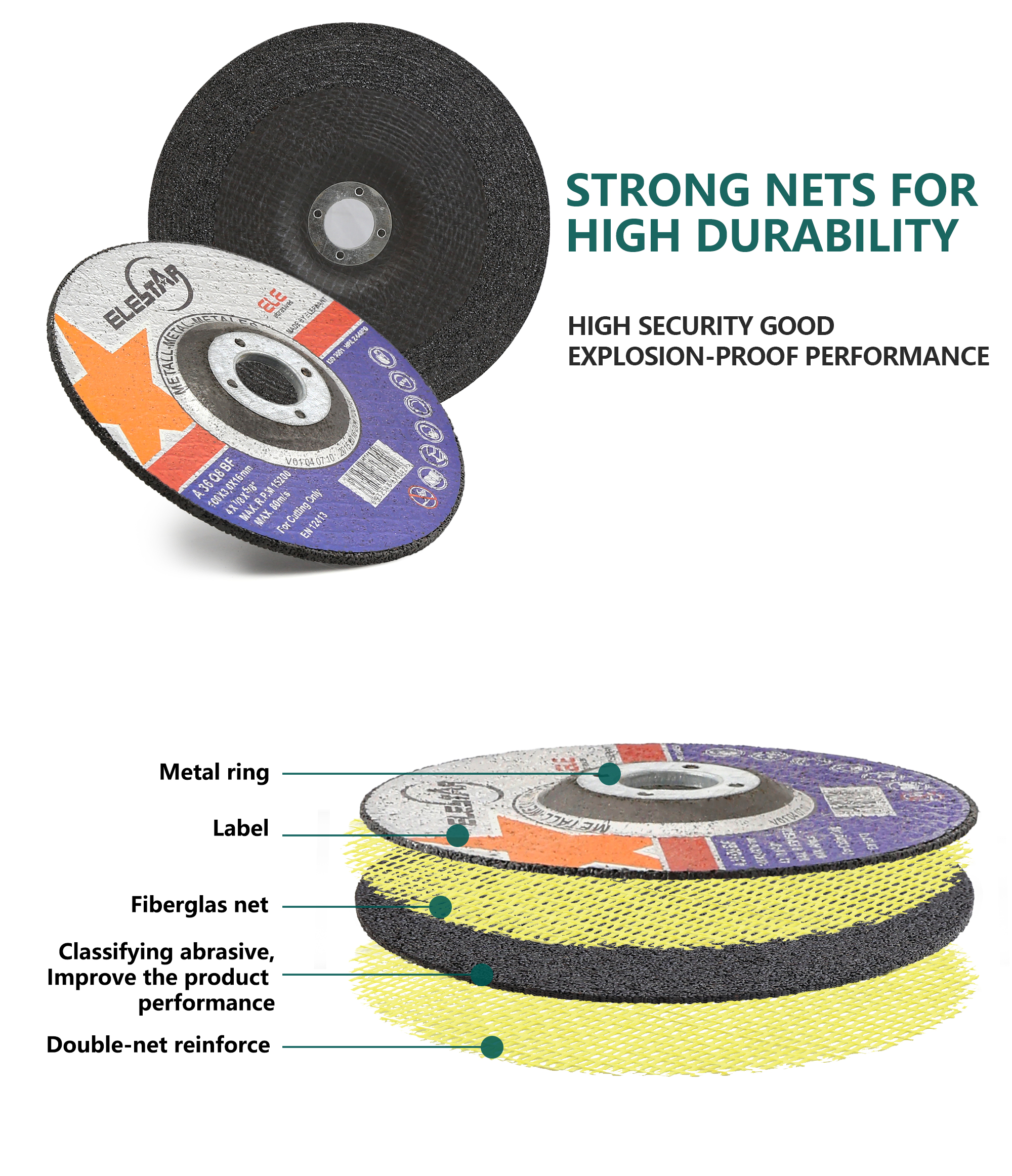

Close up of grinding wheel showing reinforced fiberglass net structure — Double-net reinforced fiberglass structure ensures high durability and explosion-proof performance.

Application & Usage

Target Industries

Machinery Manufacturing
Automotive Industry
Ship-building
Metallurgy
Mold Processing
Bearing and Gear Processing

Usage Notes

For Cutting OnlyMetal Use Only

Industrial application examples for grinding wheels — Versatile application across machinery, automotive, and metal fabrication industries.

Grinding wheel performing cool cutting on metal — Designed for efficient, cool cutting on various types of stainless steel and metal.
