4 inch Abrasive Metal Cutting Wheel

This 4 inch cutting wheel is designed for cutting metal and can also be used for grinding. It is a T41 flat wheel with dimensions of 100*3.0*16mm.

Request a Quote Download PDFPDF

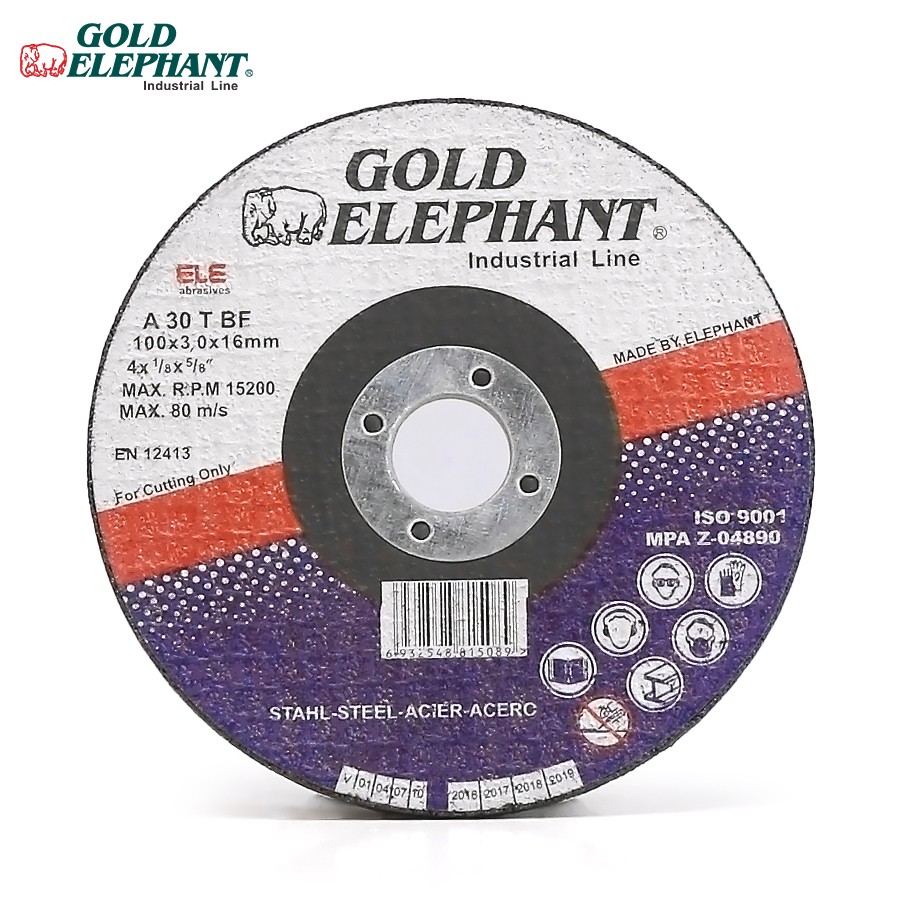

Gold Elephant metal cutting wheels 4 inch cutting wheel discs - Image 1

Technical Specifications

Product Overview

Industrial Abrasive Cutting Wheel

This high-performance abrasive cutting wheel is engineered for efficient and precise metal cutting applications. Constructed with a medium-hard bond and reinforced with a fiberglass net, it offers an optimal balance between cutting speed and disc longevity. Designed for safety and durability, this wheel is suitable for professional industrial environments requiring reliable performance on steel and other metals.

Physical Specifications

Dimensions

Attribute	Value
Diameter	100 mm
Thickness	3.0 mm
Bore Diameter	16 mm
Wheel Type	T41 (Flat)

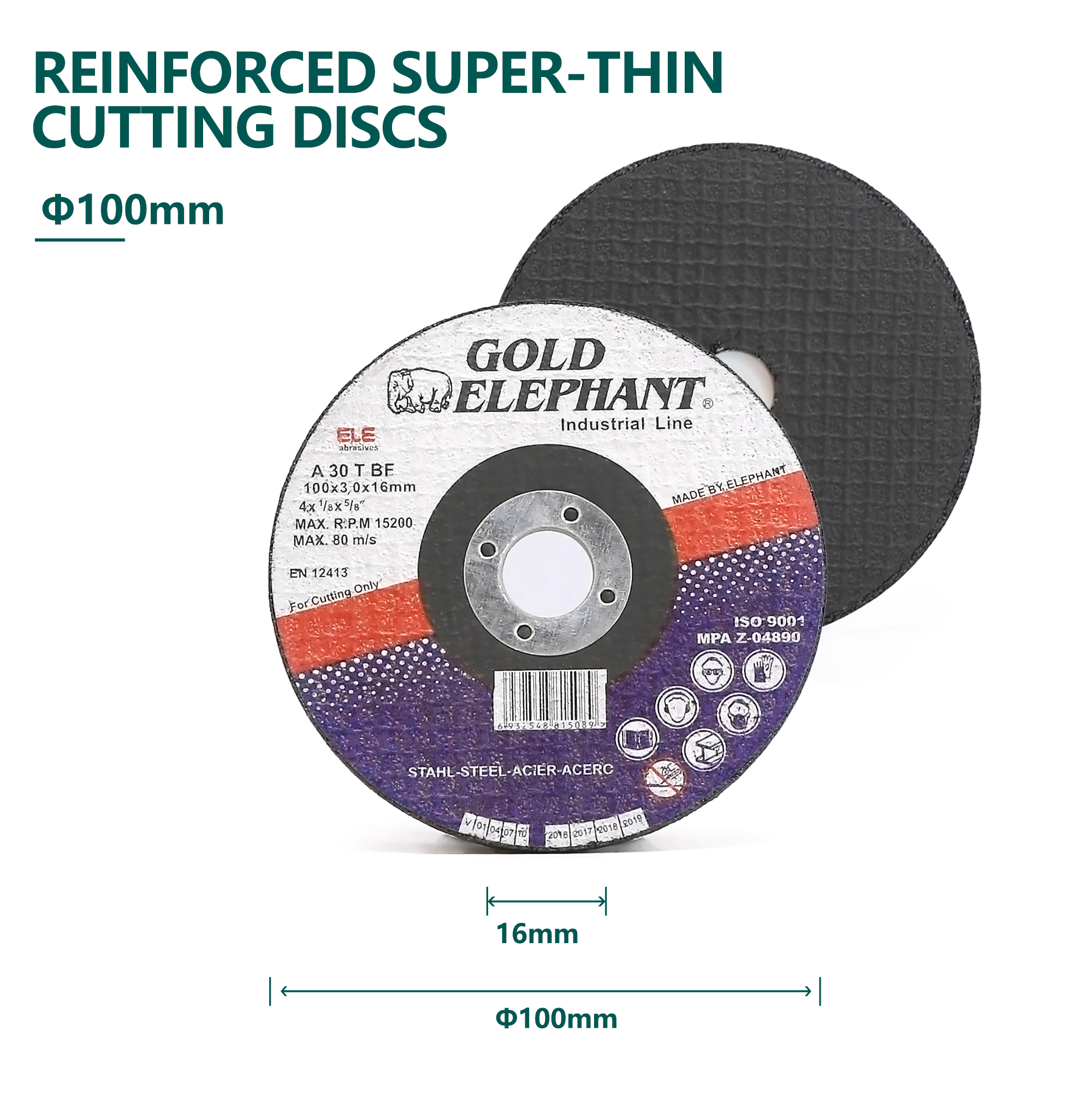

Technical diagram showing 100mm cutting disc dimensions and specifications. — Technical diagram detailing standard dimensions and compliance standards.

Performance Ratings

Performance Metrics

15,200 RPM

Max Speed (RPM)

80 m/s

Max Peripheral Speed

Compliance & Safety

Certifications

ISO 9001MPA Z-04890EN 12413

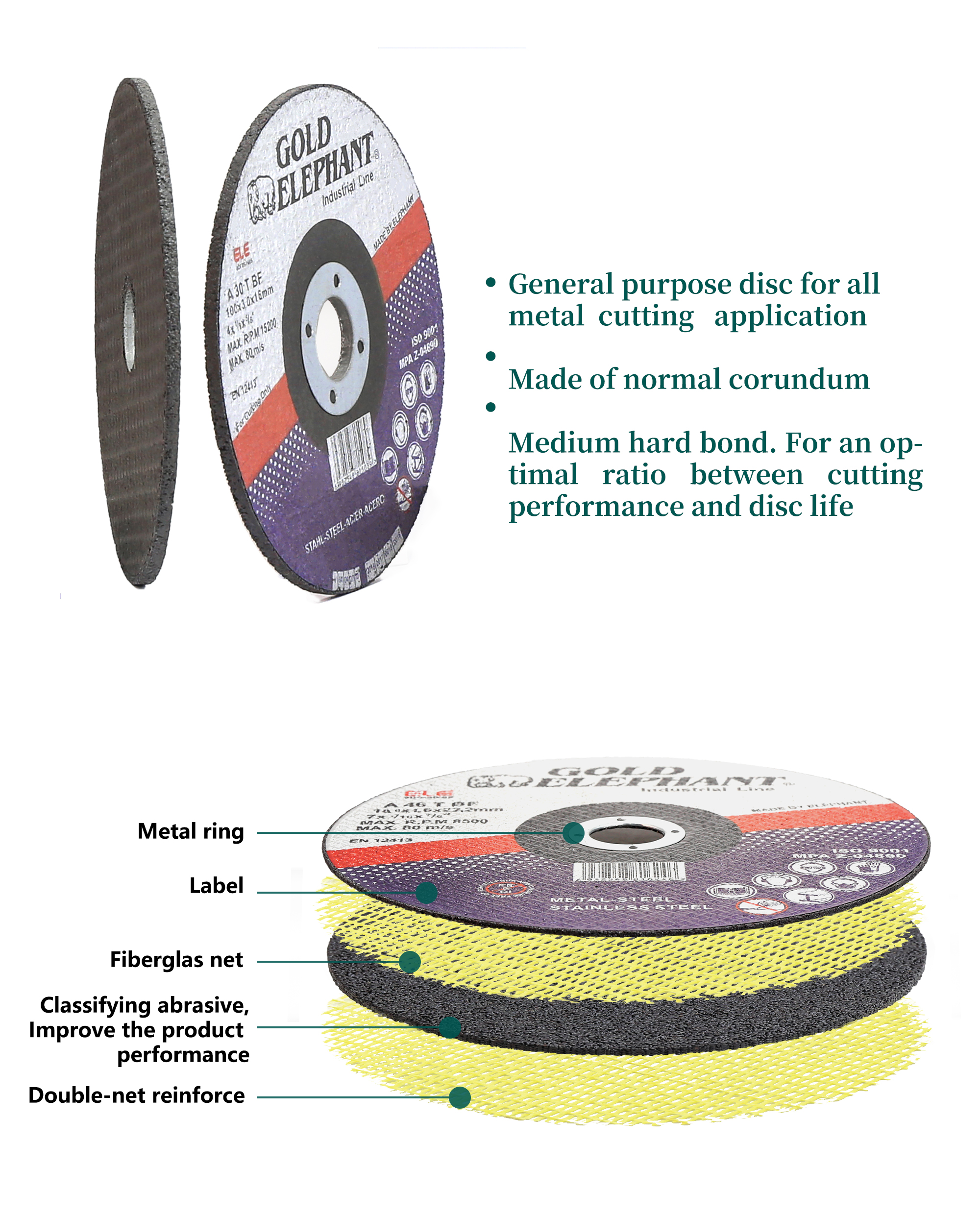

Abrasive cutting disc showing construction details and reinforcement. — Reinforced construction featuring fiberglass net for enhanced durability during operation.

Application Details

Usage Notes

Designed for cutting metal only
Suitable for steel and stainless steel
Reinforced with fiberglass net for safety
Medium-hard bond for balanced life and performance

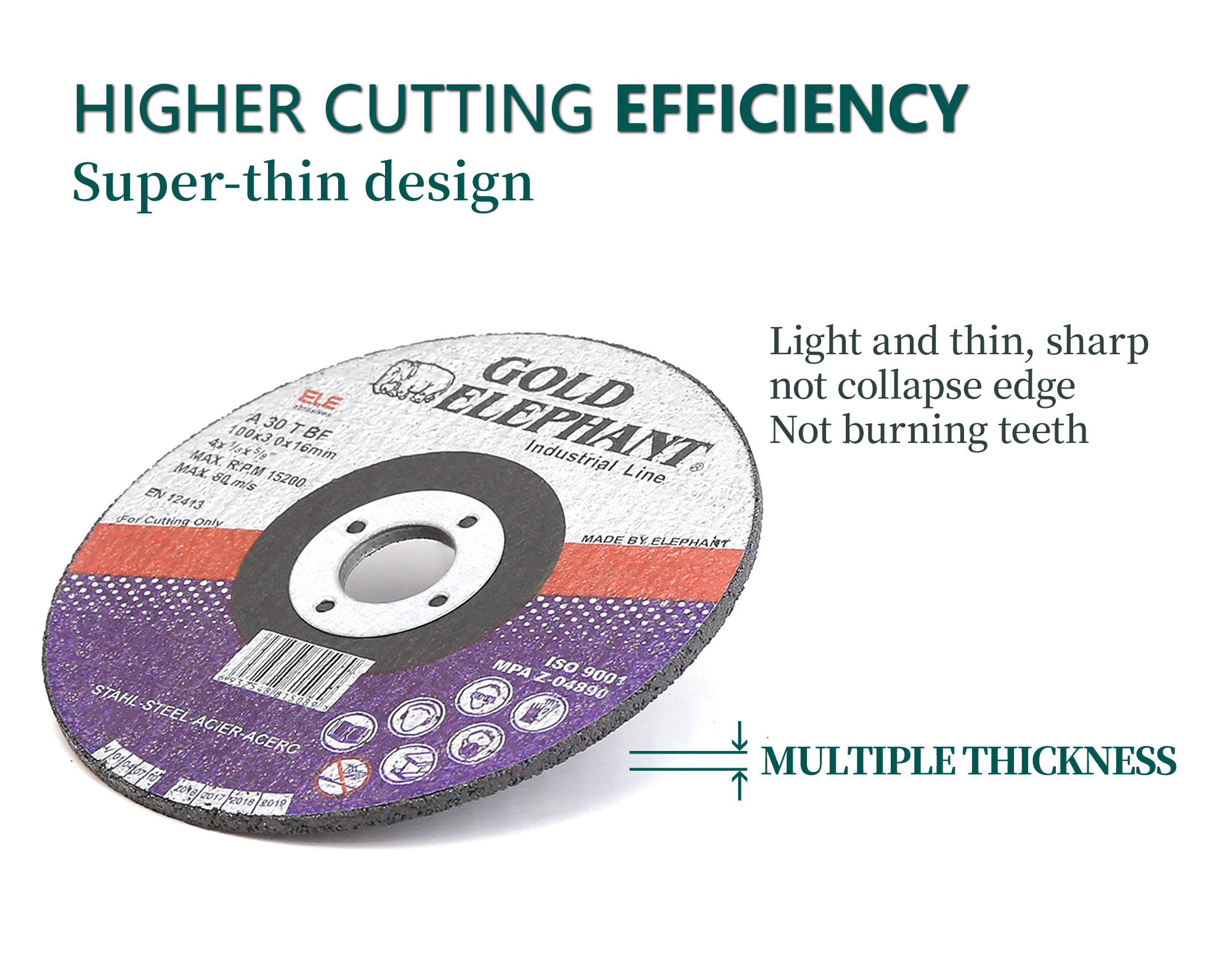

Close up of abrasive cutting wheel showing super-thin design features. — Super-thin design engineered for higher cutting efficiency and reduced material waste.
