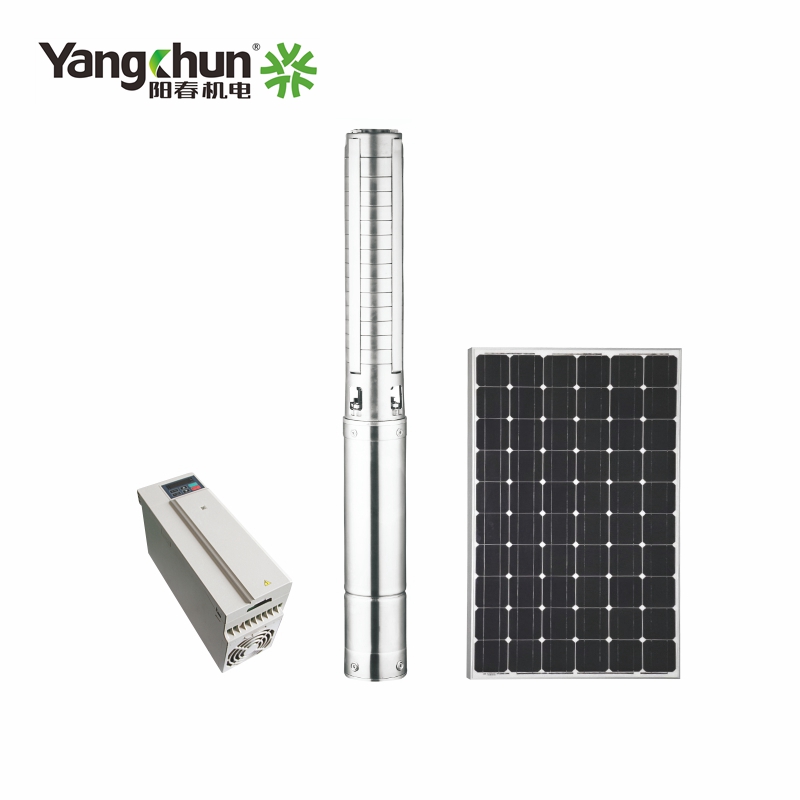

4-Inch 12T/h Submersible Solar Pump
This 4-inch submersible solar pump provides a 12T/h flow rate with intelligent control. Its robust construction and corrosion-resistant materials ensure durability for agricultural irrigation and remote water supply.
Technical Specifications
Overview
High-Efficiency Submersible Solar Pumping Solution
This 4-inch intelligent submersible solar pump is engineered for high-rotation performance, reaching speeds up to 5200 RPM for efficient water extraction. Utilizing a permanent magnet synchronous motor and all-stainless steel multistage impellers, it delivers a robust 12T/h flow rate ideal for deep well applications. The system features an intelligent control drive that optimizes energy savings and provides multiple protection strategies, ensuring a service life 60% longer than traditional deep well pumps.
Performance Highlights
Key Performance Metrics
12 m³/h
Max Flow Rate
5,200 RPM
Max Rotation Speed
520 VDC
Operating Voltage
Technical Specifications
- Motor Technology
- Permanent magnet synchronous motor
- Impeller Material
- All stainless steel multistage impeller
- Power Input Compatibility
- 3-Phase ACDC Direct InputSolar PVBattery
- Energy Efficiency
- Exceeds GB32030-2015 first-level energy efficiency
Features & Intelligence
Smart Operations
- Constant pressure and constant current water supply
- Intelligent drive adjustment for power saving
- Fault self-processing function
- Built-in temperature control protection
- Wide voltage range operation
Environmental & Safety
Eco-Friendly Design
Oil-FreePollution-FreeClean EnergyCorrosion Resistant
Model Comparison
Performance Parameters by Model
| Model | Power (KW) | Voltage (V) | Max Head (m) |
|---|---|---|---|
| G100QJ12-54/4-3600W | 3.6 | 520 | 84 |
| G100QJ12-73/5-4800W | 4.8 | 520 | 106 |
| G100QJ12-95/6-6000W | 6 | 520 | 126 |
| G100QJ12-124/8-8000W | 8 | 520 | 167 |
| G100QJ12-168/10-11000W | 11 | 520 | 210 |
Application
Recommended Use Cases
- Agricultural irrigation
- Livestock watering
- Remote domestic water supply
- Deep well water extraction
- Sustainable water management projects
