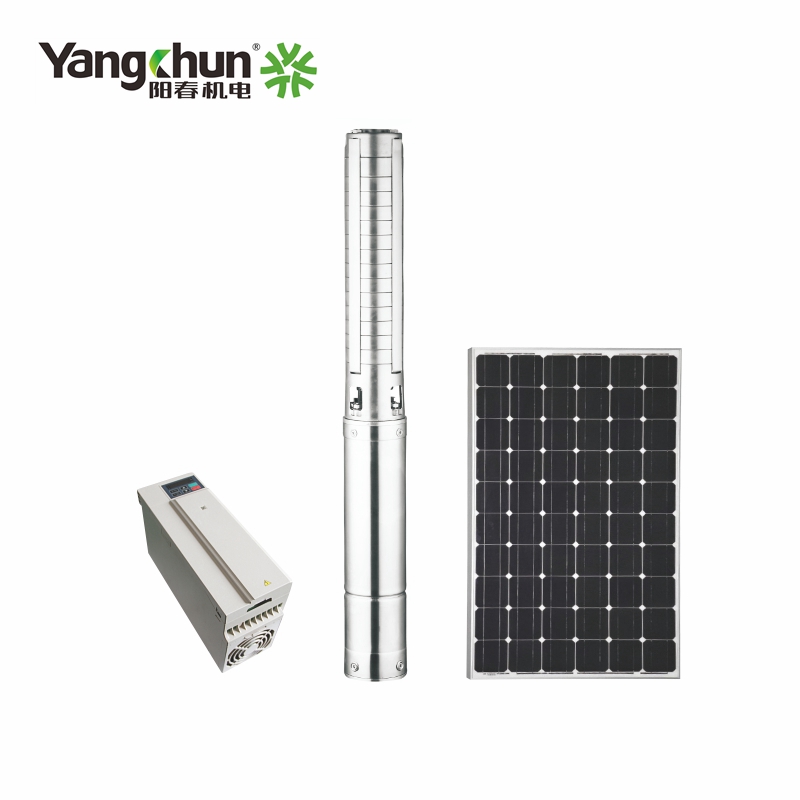

4" 6T/h High Rotation Speed Solar Pump
This 4" 6T/h solar pump features a high rotation speed for efficient water pumping. It is designed with an intelligent control system to optimize performance based on available sunlight.
Technical Specifications
Overview
High-Efficiency Intelligent Solar Pumping Solution
This 4-inch high-speed solar pump is engineered for demanding deep-well applications, featuring a permanent magnet synchronous motor and all-stainless steel multistage impellers. By achieving rotation speeds up to 5200 RPM, it delivers high power density and significant flow rates while maintaining a compact, oil-free design. Its intelligent control system supports both AC and DC inputs, ensuring stable water supply and enhanced energy efficiency for irrigation and livestock watering.
Key Performance Metrics
Key Performance Metrics
5,200 RPM
Max Rotation Speed
6 m³/h
Rated Flow Rate
520 VDC
Operating Voltage
11 kW
Max Power
Technical Specifications

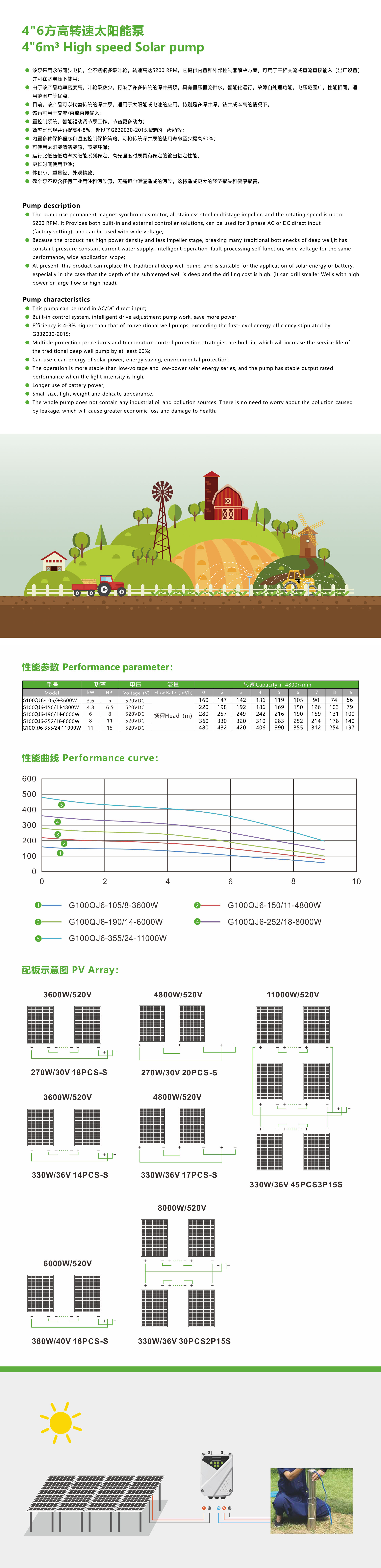

Model Performance Data
| Model | Power (kW) | Voltage (V) | Max Head (m) |
|---|---|---|---|
| G100QJ6-105/8-3600W | 3.6 | 520 | 105 |
| G100QJ6-150/11-4800W | 4.8 | 520 | 150 |
| G100QJ6-190/14-6000W | 6 | 520 | 190 |
| G100QJ6-252/18-8000W | 8 | 520 | 252 |
| G100QJ6-355/24-11000W | 11 | 520 | 355 |
- Motor Type
- Permanent magnet synchronous motor
- Impeller Material
- All stainless steel multistage impeller
System Features
Intelligent Features
- Constant pressure and constant current water supply
- Intelligent drive adjustment for energy saving
- Built-in fault self-processing functions
- Temperature control protection strategies
- Wide voltage range compatibility
- Protection & Efficiency
- GB32030-2015 Class 1 EfficiencyDry-run ProtectionOver-temperature ProtectionOil-Free Design
Application Benefits
Operational Advantages
- 4-8% higher efficiency than conventional well pumps
- 60% longer service life compared to traditional pumps
- Suitable for small-diameter deep wells with high drilling costs
- Zero pollution risk (no industrial oil used)
- Compatible with AC/DC direct input
Solar Configuration
Recommended PV Array Configurations
- 3600W System: 18pcs 270W/30V panels in series
- 4800W System: 20pcs 270W/30V panels in series
- 6000W System: 16pcs 380W/40V panels in series
- 11000W System: 45pcs 330W/36V panels (3 strings of 15)
