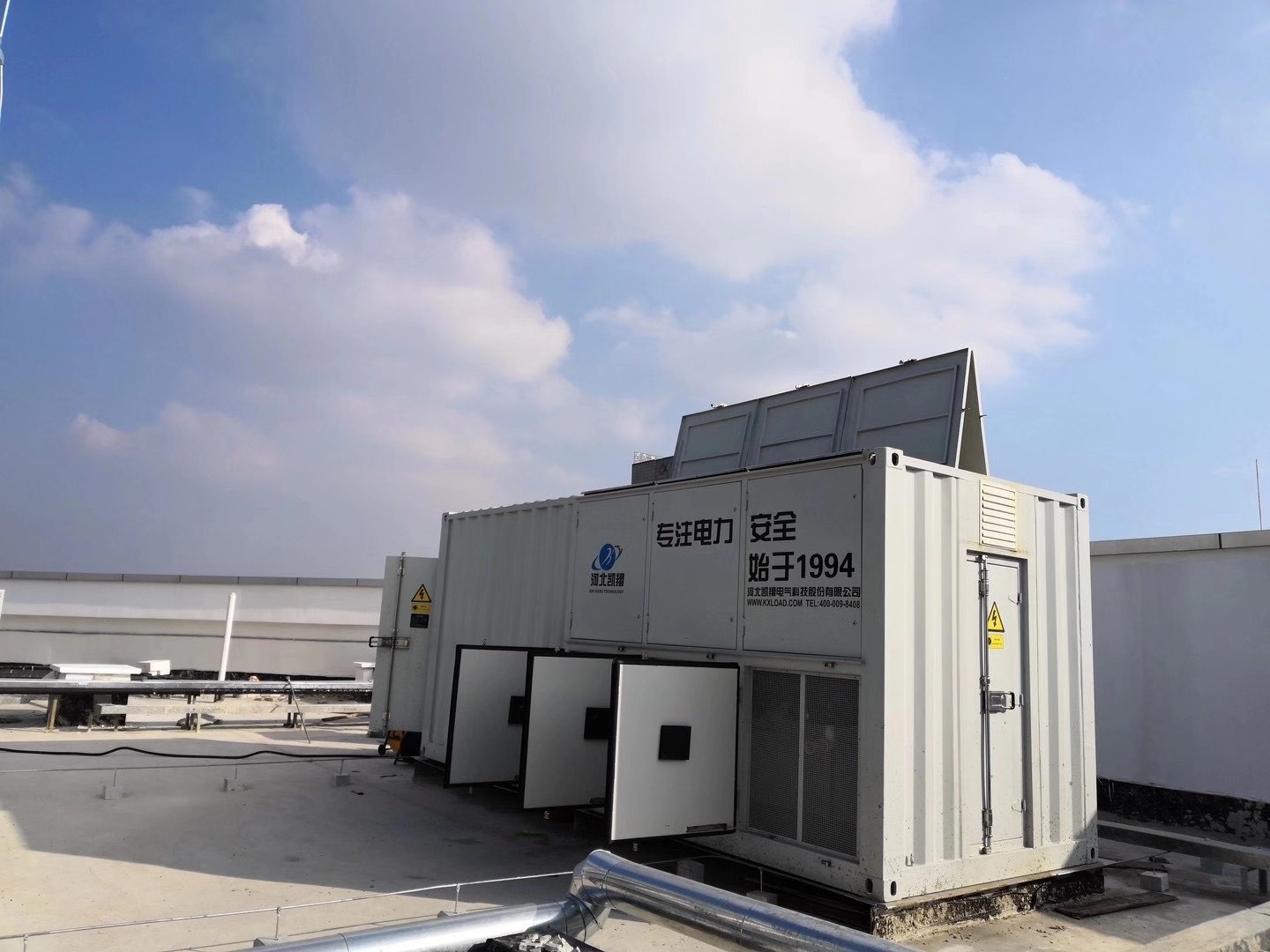

3MW High Voltage Load Bank for Gas Turbine Testing
This high voltage load bank is designed for gas turbine testing, providing a stable and controllable load. It features advanced controls, comprehensive monitoring, and multiple protection features.
Technical Specifications
Overview
High-Performance Gas Turbine Testing Solution
This 3MW High Voltage Load Bank is engineered for the rigorous demands of gas turbine testing, offering a compact and lightweight design without compromising on capacity. Built with a unique patent resistor assembly, it provides exceptional durability in harsh environments while maintaining precise control over load steps. The system is fully customizable, featuring advanced digital metering and data logging software to ensure comprehensive performance evaluation and safety.
Key Performance Metrics
Performance Highlights
3,000 kW
Max Resistive Load
11 kV
Rated Voltage
1 PF
Power Factor
Electrical Configuration
Load Step Resolution
- 200kW
- 400kW
- 600kW
- 800kW
- 1000kW
- Voltage & Frequency
- 11KV, 3 Phase 3 Wire, 50Hz
- Load Tolerance
- ±5% (per step), ±3% (overall)
- Insulation Class
- F
Control & Monitoring
- Control Modes
- Manual ControlRemote ControlPLC Controlled
- Communication Interface
- RS485RS232
- Software & Data
- Data logging software included for real-time processing
Physical Construction
- Enclosure Design
- Container type with ladder, mesh protection, and weather-proof door
- Dimensions (L×W×H)
- 6058mm × 2438mm × 2591mm
- Cooling Method
- Forced air cooling (Axial Fan), horizontal inlet, vertical exhaust
- Duty Cycle
- Continuous duty
Safety & Protection
Safety Systems
IP54 RatedOver-temperature ProtectionBranch Circuit Fuse ProtectionEmergency Lifting Rings
Operating Environment
Environmental Parameters
| Parameter | Range |
|---|---|
| Ambient Temperature | -20℃ to +50℃ |
| Relative Humidity | ≤95% |
| Atmospheric Pressure | 86 to 106kPa |
