Technical Specifications
Overview

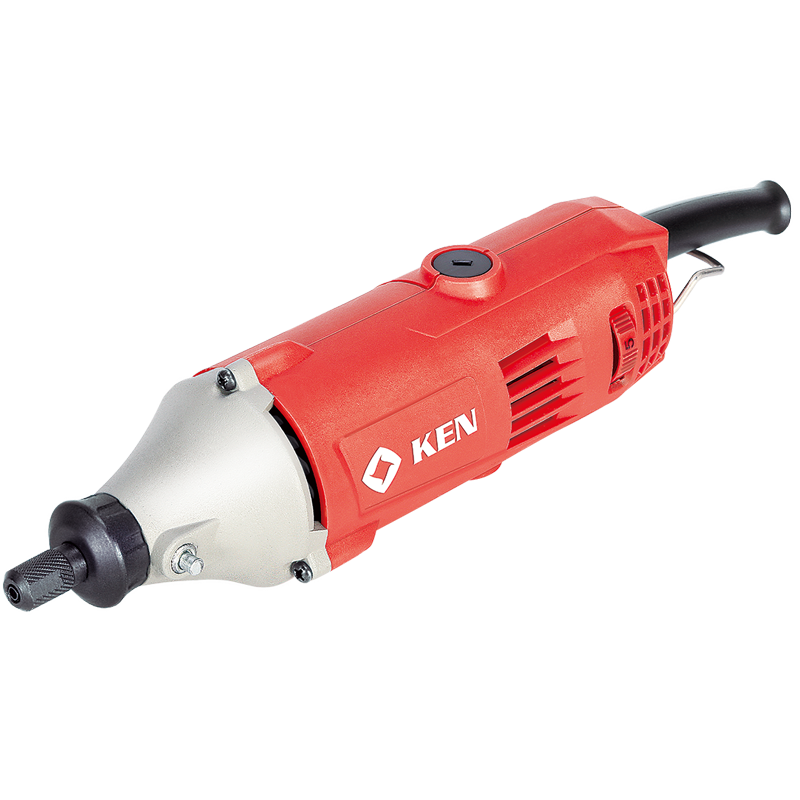

Professional Precision Die Grinder
This 120W electric die grinder is engineered for high-precision tasks including grinding, polishing, and deburring across various materials. Featuring a 100% copper motor and a 6-degree speed regulation system, it offers versatile performance ranging from 10,000 to 33,000 RPM. Its ergonomic, compact design is balanced to minimize vibration, ensuring comfortable handling and professional-grade accuracy for extended industrial use.
Technical Performance
Performance Highlights
120 W
Rated Power
33,000 RPM
Max Speed
3 mm
Collet Diameter
- No-load Speed Range
- 10,000 - 33,000 r/min
- Speed Regulation
- 6-Degree variable speed adjustment roller
- Motor Construction
- 100% Copper Motor
Design & Ergonomics
Product Dimensions
| Dimension | Value |
|---|---|
| Length | 206 mm |
| Width | 53 mm |
| Weight | 0.72 kg |
User Convenience
- External carbon brush for easy replacement
- Removable dust cover
- Integrated tail hook for storage
- Spindle self-locking mechanism
- High-precision concentric chuck
- Vibration System
- Power balancing system for low vibration and stable operation
Applications
- Primary Applications
- GrindingPolishingGroovingDescalingDrillingDeburring
Accessories
Included in Package
- Carbon Brushes
- Wrench
Compliance
Quality Standards
3C Certified
