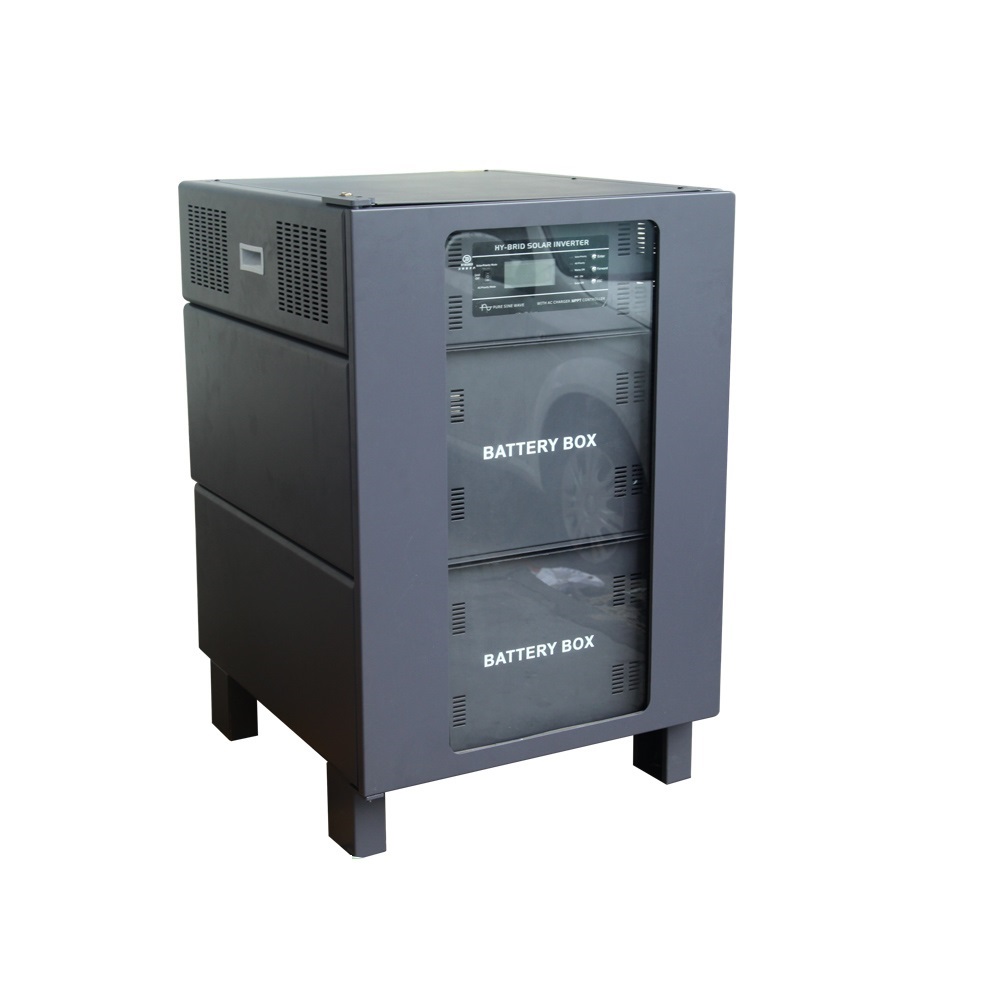

3kW Portable Solar Power Generator System
This portable solar power generator system delivers both DC and AC power. The system integrates a hybrid solar inverter with battery storage, providing a complete solution for various power needs.
Technical Specifications
System Overview
All-in-One Solar Power Solution
The 3kW Portable Solar Power Generator System provides a comprehensive, all-in-one power solution featuring an integrated inverter, AC charger, MPPT solar charger, and battery storage. Designed for reliability, it produces pure sine wave power and supports unattended operation with smart battery management. The system is compatible with both grid and generator backup sources, ensuring continuous power availability for various off-grid or emergency applications.
Technical Specifications
Performance Metrics
3 kW
Inverter Capacity
60 A
MPPT Charge Controller
48 V
System Voltage
- Battery Configuration
- 12V/200AH x 4pcs (Internal)
- Key Features
- Pure Sine WaveMPPT TechnologySmart Battery ManagementGrid Bypass CompatibleLCD Display & BuzzerHigh Efficiency Conversion
Included Components
Package Contents
| Component | Specification |
|---|---|
| Solar Panels | 280W/30V Mono x 6pcs |
| Panel Bracket | Set for 6 panels |
| PV Cabling | 6mm cables (50 meters) |
| Battery Array | 4 x 200AH Units |
