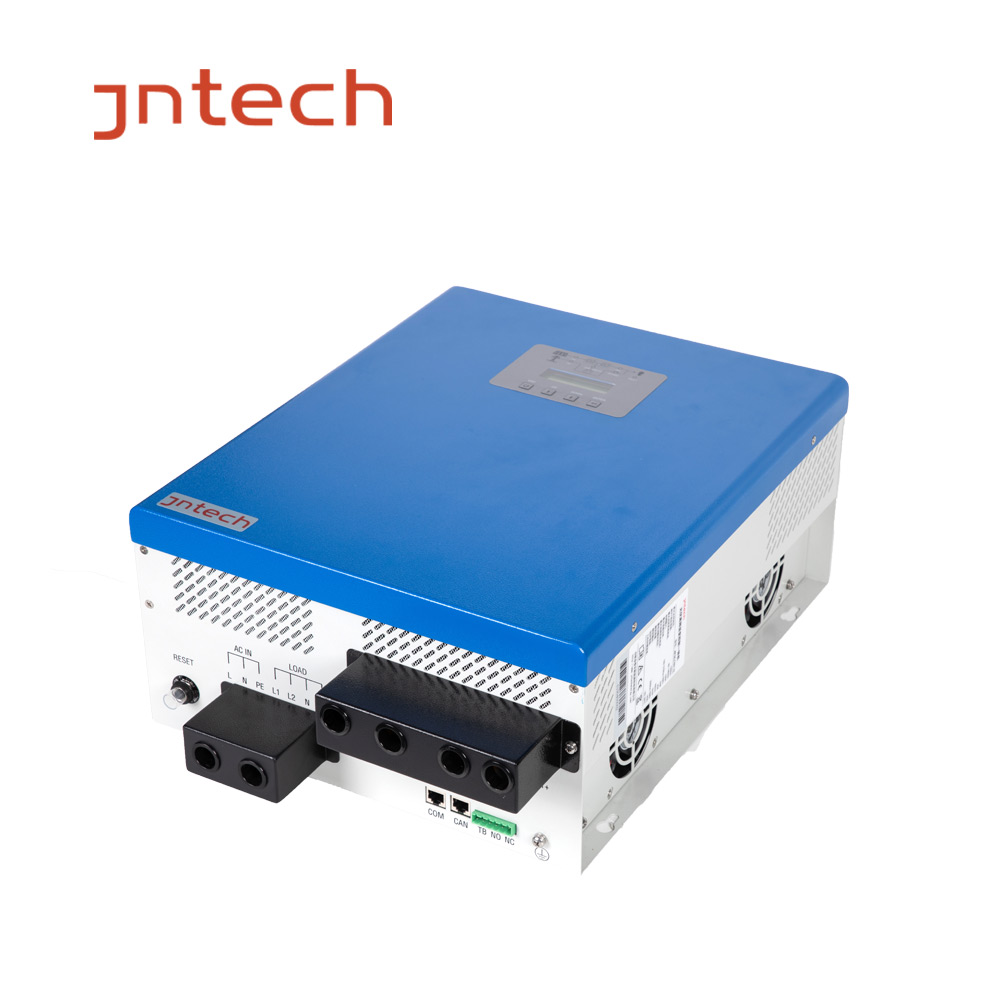

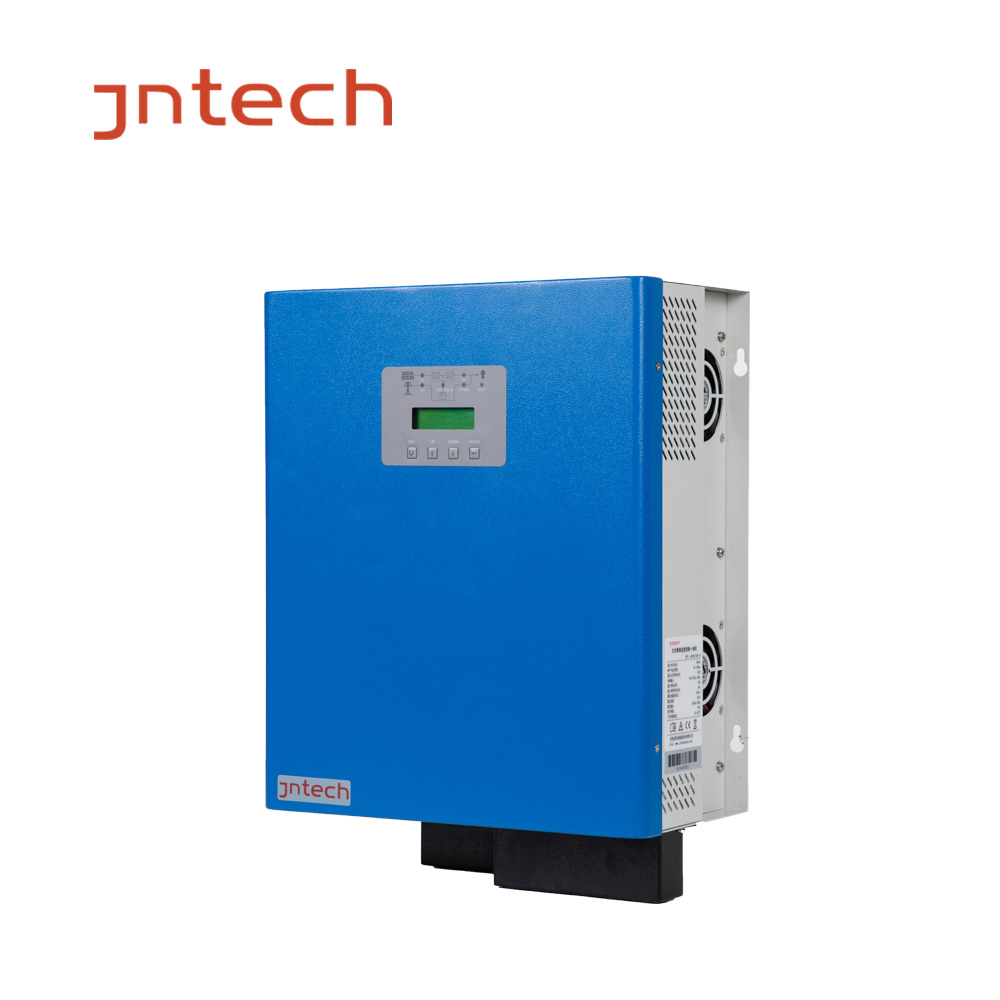

3kVA-5kVA Off-Grid Solar Inverter
This off-grid solar inverter converts DC power from solar panels or batteries into AC power. It utilizes hybrid MPPT technology to optimize energy harvesting from solar panels.
Technical Specifications
Overview
Integrated Off-Grid Energy Solution
This highly integrated system combines an inverter, AC charger, and MPPT solar charge controller into a single unit for efficient energy management. Designed for areas with limited or no grid access, it features fast 0ms switching between grid and battery power to ensure uninterrupted supply. The system optimizes electricity costs through intelligent management of solar and AC inputs, providing reliable pure sine wave power for sensitive electronics.
Key Performance Metrics
Core Performance Metrics
3,000 W
Rated Output Power
4,000 W
Max PV Input Power
93 %
Battery Mode Efficiency
60 A
Max Charging Current
AC Input & Output
AC Specifications
| Parameter | Input Details | Output Details |
|---|---|---|
| Voltage | 230VAC (170-280VAC range) | 230VAC (220-240VAC range) |
| Frequency | 50/60Hz (Auto-sensing) | 50/60Hz |
| Waveform | N/A | Pure Sine Wave |
Solar & Battery
Solar & Battery Input
- Rated DC Input Voltage: 48VDC
- MPPT Voltage Range: 60-450VDC
- Maximum DC Input Power: 4000W
- Maximum Charging Current: 60A
System Features
- Operational Features
- Hybrid MPPT Controller0ms Switching TimeECO ModeUPS ModeLCD DisplayShort Circuit Protection
Technical Protection
Protection & Reliability
- Overload Capacity: 110%-150% for 10 seconds
- Integrated Short Circuit Protection
- Pure Sine Wave Output for sensitive loads
- Intelligent Energy Management System
Physical & Environmental
Physical & Environmental
| Specification | Value |
|---|---|
| Dimensions (D*W*H) | 120 * 295 * 465 mm |
| Net Weight | 10.5 kg |
| Operating Temperature | 0 to 50°C |
| Storage Temperature | -15 to 60°C |
| Humidity | 5% to 95% (Non-condensing) |
Connectivity
Communication Options
USBRS485WIFI (Optional)CANDry Contact
