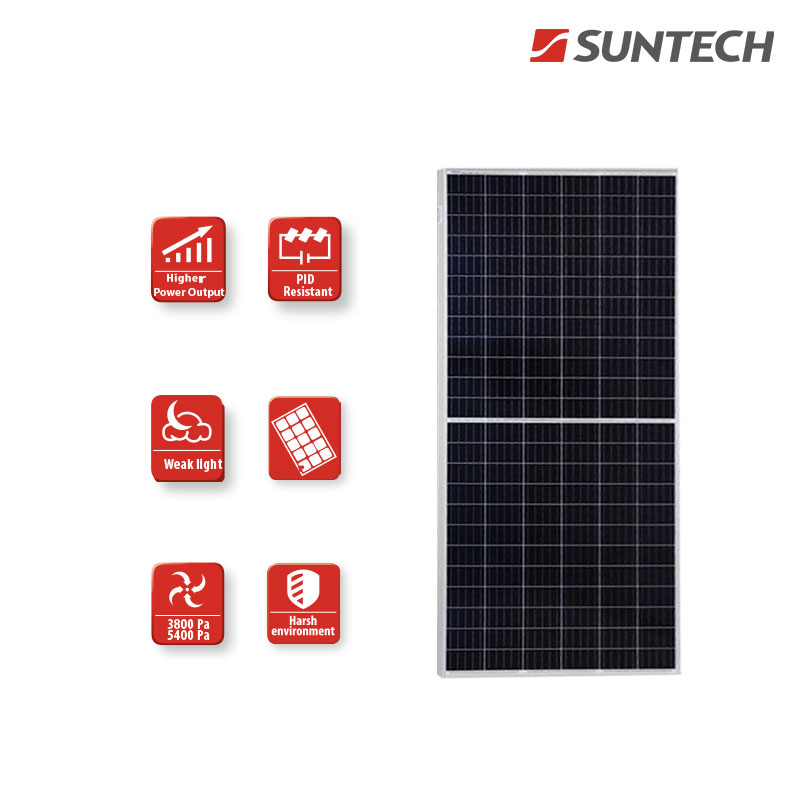

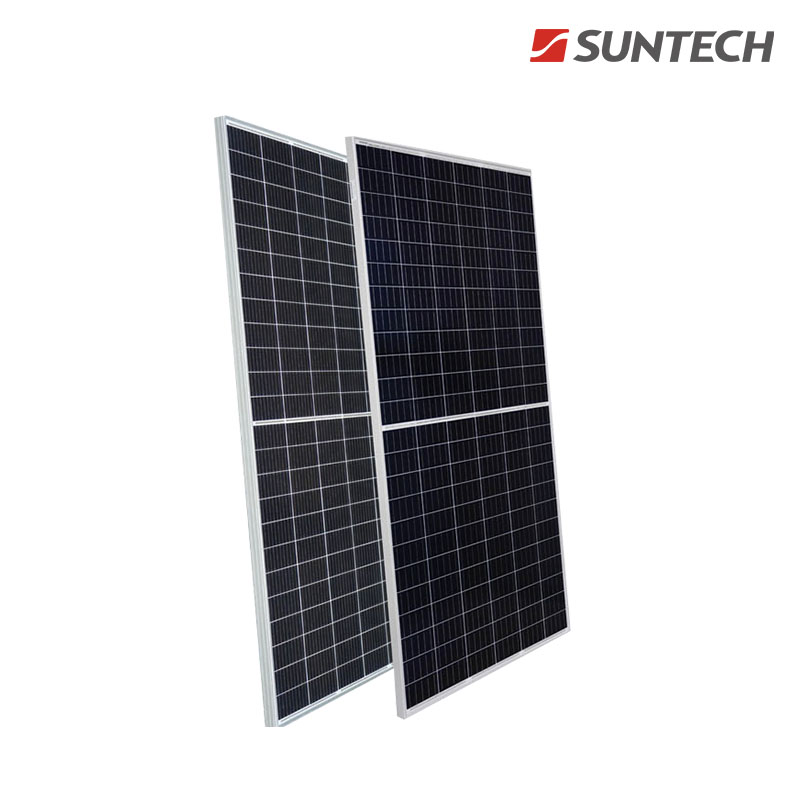

395W Monocrystalline Half-Cut Solar Panel
This monocrystalline solar panel features 144 half-cut cells and 9 busbars. It provides a 395W power output for solar system applications.
Technical Specifications
Product Overview
High-Efficiency 144-Cell Half-Cut Module
This 395W monocrystalline solar module utilizes advanced half-cut cell technology and 9-busbar design to deliver superior energy yield compared to standard modules. Engineered for resilience, the panel is PID resistant and certified to withstand significant static loads, making it an ideal choice for diverse environmental conditions including coastal and desert regions. With an industry-leading linear performance warranty, this module ensures reliable, long-term energy production for residential, commercial, and utility-scale solar projects.
Key Features
- Key Features
- Half-Cut Technology9 BusbarsPID ResistantLow Temperature CoefficientExcellent Weak Light PerformanceIP68 Junction Box
Electrical Characteristics
STC Electrical Data
| Parameter | Value | Unit |
|---|---|---|
| Optimum Operating Voltage (Vmp) | 41.6 | V |
| Optimum Operating Current (Imp) | 9.5 | A |
| Open Circuit Voltage (Voc) | 48.8 | V |
| Short Circuit Current (Isc) | 10.4 | A |
- Max Power (STC)
- 395 W
- Module Efficiency
- 19.6 %
Mechanical Specifications
- Dimensions
- 2008 x 1002 x 35 mm
- Weight
- 22.5 kg
- Frame Material
- Anodized Aluminum Alloy
Environmental Ratings
Static Load Capacity
5,400 Pa
Front Side
3,800 Pa
Rear Side
Warranty and Compliance
Warranty Terms
- 12-Year Product Warranty
- 25-Year Linear Performance Warranty
- 97.5% Power output in Year 1
- 80.7% Power output in Year 25
