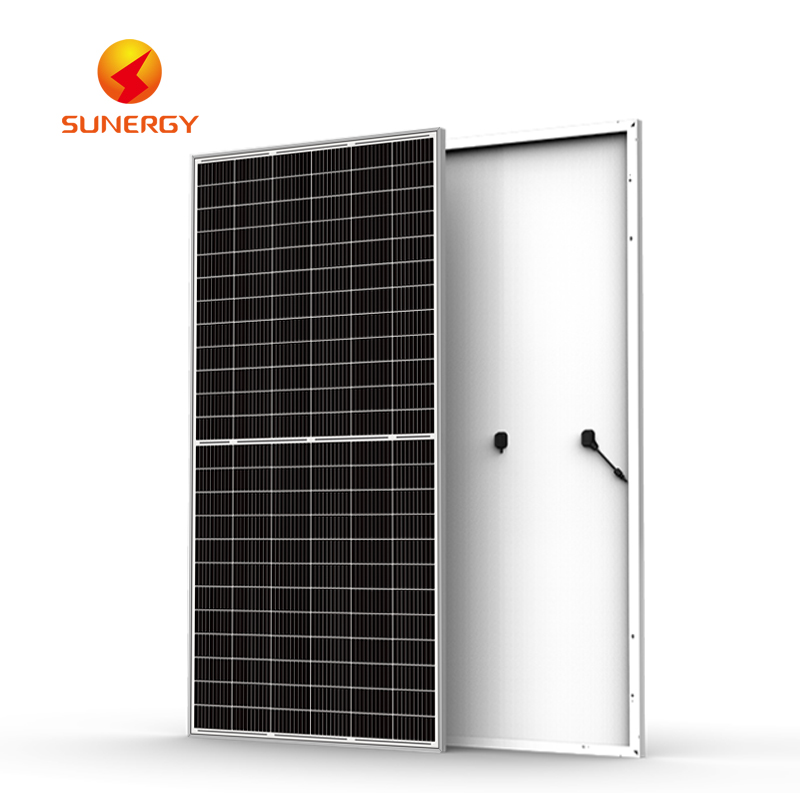

395W-420W Half-Cut 72-Cell Monocrystalline Solar Panel
This high-efficiency solar module features half-cut cell technology and multi-busbar (MBB) design. The panel incorporates 72 monocrystalline silicon cells with a 158.75mm square format and a power output of 395W-420W.
Technical Specifications
Overview
High-Efficiency Solar Power Solution
This monocrystalline solar module utilizes advanced half-cut cell technology to deliver a power output ranging from 395W to 420W. Designed with 144 PERC cells, it offers excellent low-light performance and superior temperature-dependent efficiency. The robust design minimizes the risk of hot spots, making it a reliable choice for diverse residential, commercial, and utility-scale energy projects.
Performance Metrics
Power Output Range
395 W
Minimum Power
420 W
Maximum Power
- Maximum Efficiency
- 20.67 %
- Power Output Tolerance
- 0-+3%
Technical Specifications
- Cell Technology
- Monocrystalline PERC
- Number of Cells
- 144
- Individual Cell Dimensions
- 158.75mm x 79.375mm
Physical Dimensions
- Module Dimensions
- 2024 x 1004 x 35 mm
Key Features
Key Advantages
Half-Cut TechnologyHigh Power OutputLow Hot Spot RiskExcellent Low Light PerformanceStable Temperature Performance
