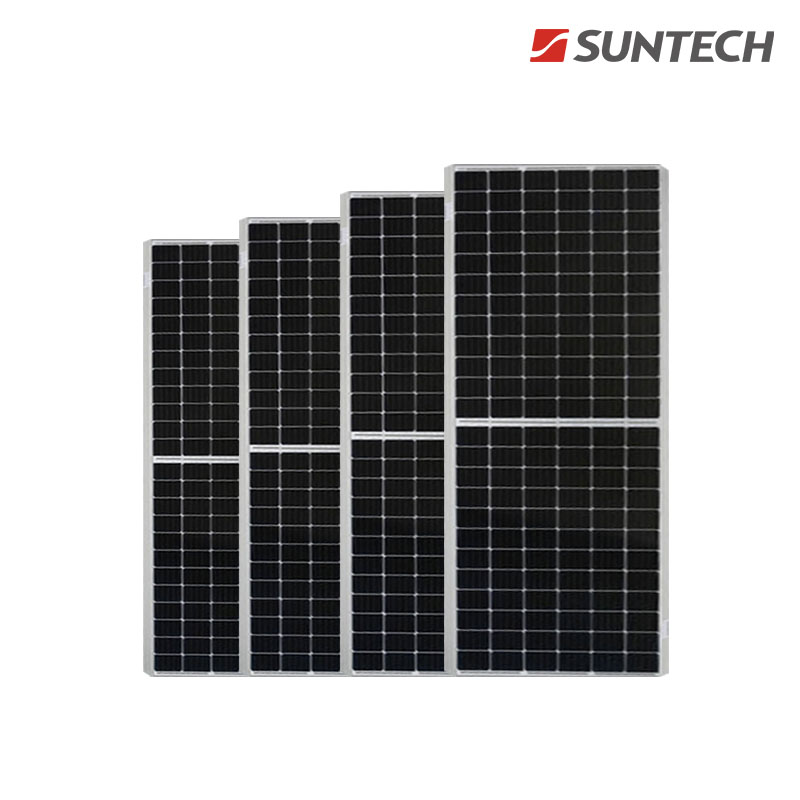

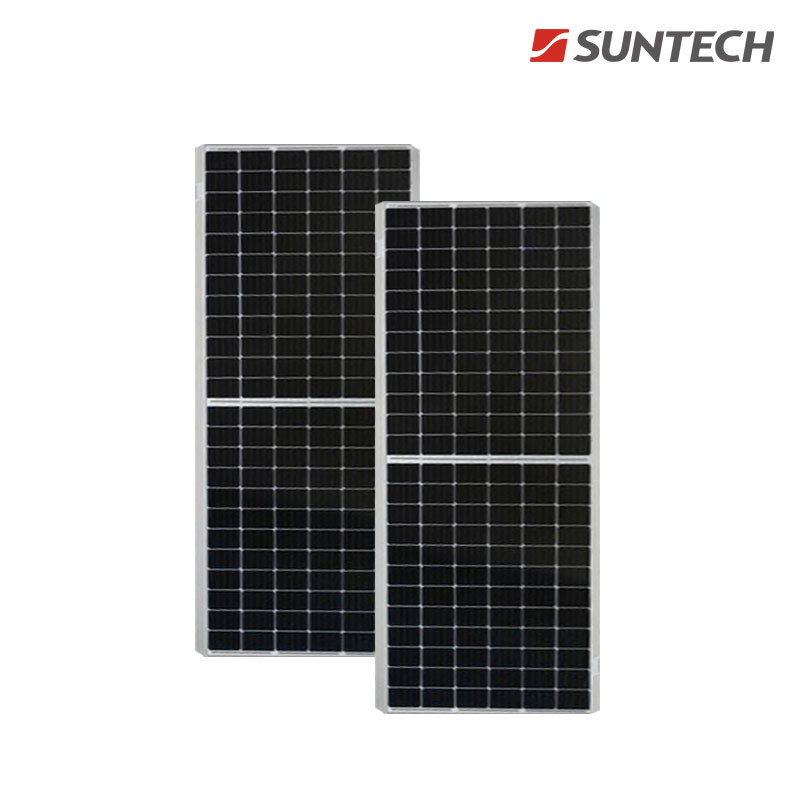

385W Monocrystalline Solar Panel for Home Systems
This 385W monocrystalline solar panel is designed for solar home systems. The solar module provides reliable power generation for residential applications.

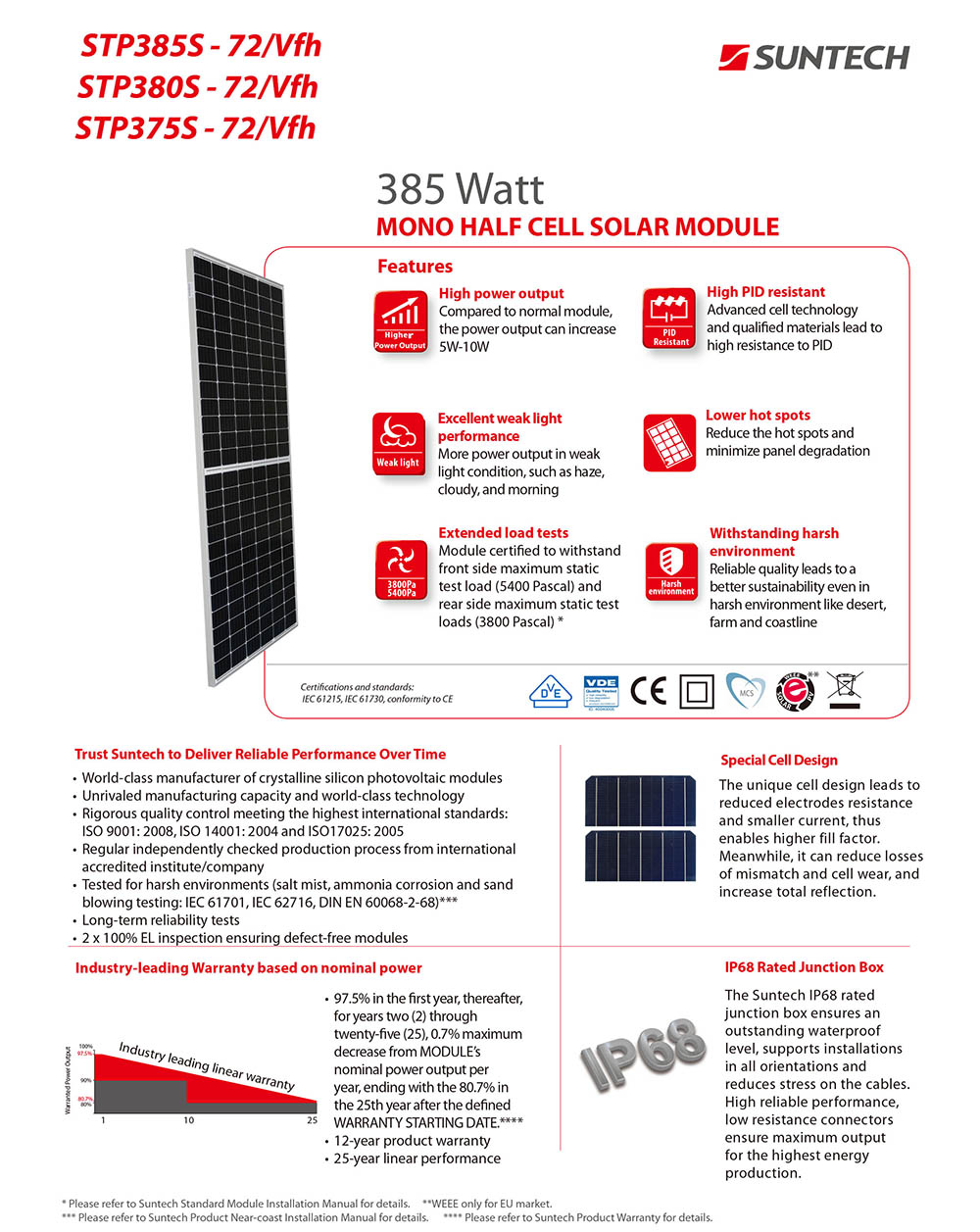

Technical Specifications
Product Overview
High-Performance Monocrystalline Module
This 385W monocrystalline solar panel is engineered for high-efficiency energy production in residential home systems. It utilizes advanced cell technology to ensure superior performance in weak light conditions and offers robust durability against harsh environmental factors such as salt mist and sand. With a focus on long-term reliability, the module features a 12-year product warranty and a 25-year linear performance warranty.
Electrical Characteristics
Key Voltage Metrics
40.3 V
Optimum Operating Voltage
48.1 V
Open Circuit Voltage
- Max Power (STC)
- 385 W
- Module Efficiency
- 19.1 %
Mechanical Specifications
- Dimensions
- 2008 x 1002 x 35 mm
- Weight
- 22.5 kg
- Static Load Capacity
- 5400 Pa Front Side3800 Pa Rear Side

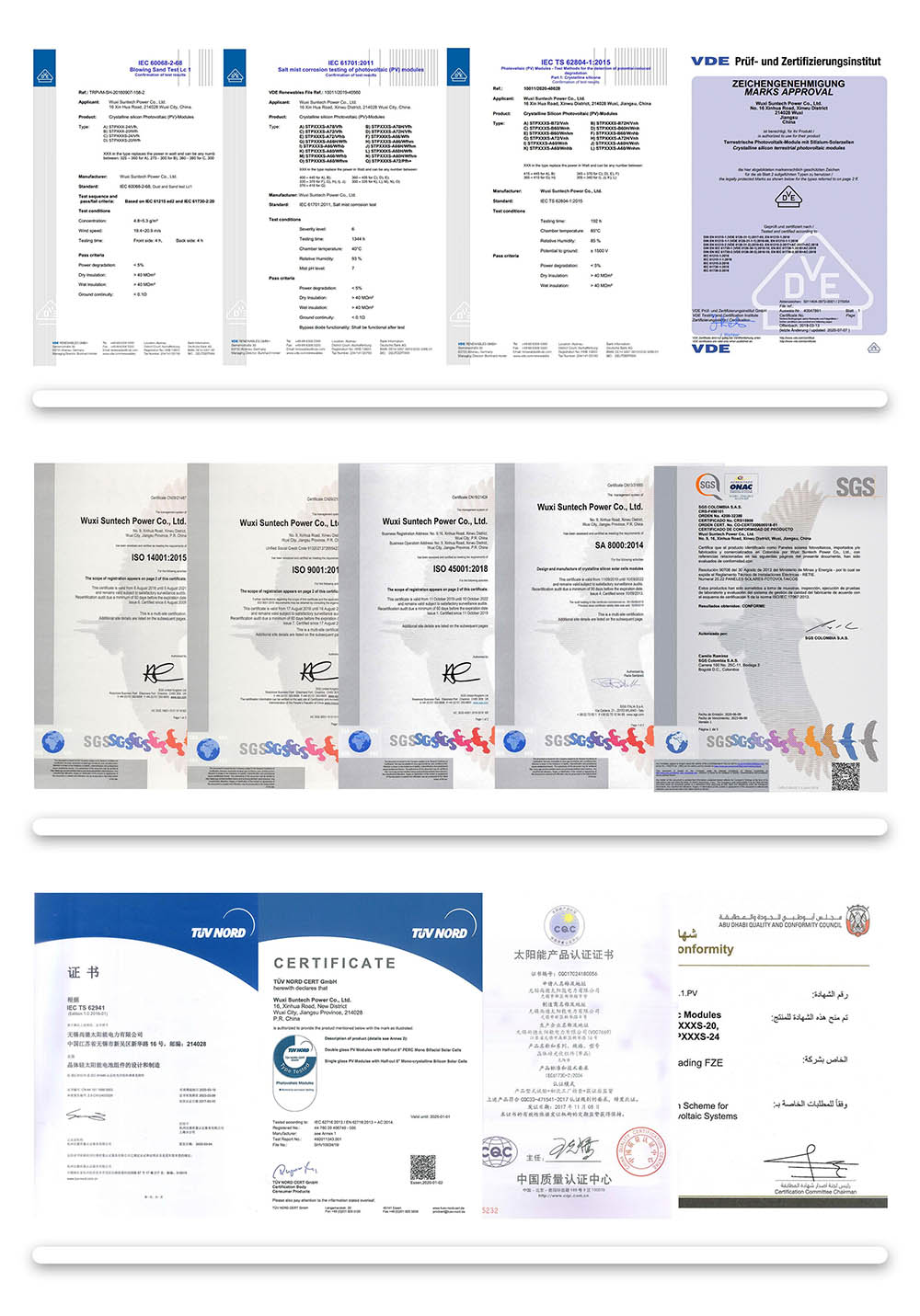

Certifications
Compliance and Standards
- IEC 61215
- IEC 61730
- IEC 61701 Salt Mist
- IEC 60068-2-68 Sand Blowing
- ISO 9001
- ISO 14001
- ISO 45001
- CE Approved
Warranty
Coverage Details
| Term | Detail |
|---|---|
| Product Warranty | 12 Years |
| Linear Performance Warranty | 25 Years |
| Year 1 Output | 97.5% |
| Year 25 Output | 80.7% |
