Technical Specifications
Product Overview

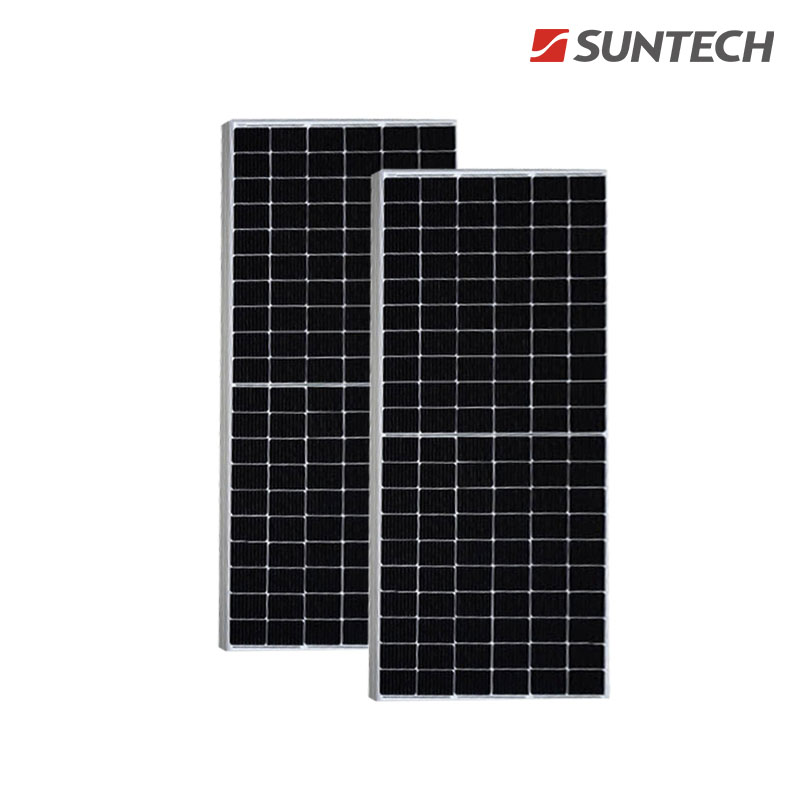

High-Efficiency Monocrystalline Module
This 370W monocrystalline solar module features 120-cell half-cut technology, optimized for high power output in diverse environmental conditions including deserts, farms, and coastlines. Designed for residential, commercial, and utility-scale systems, the module delivers superior performance in weak light conditions such as haze and cloud cover. Its robust construction supports significant static loads while providing long-term reliability through advanced PID resistance and high-quality materials.
Technical Specifications
Performance Metrics (STC)
370 W
Maximum Power
20.3 %
Efficiency
40.9 V
Open Circuit Voltage
11.49 A
Short Circuit Current
Electrical Characteristics
| Parameter | STC Value |
|---|---|
| Optimum Operating Voltage (Vmp) | 34.3 V |
| Optimum Operating Current (Imp) | 10.79 A |
| Maximum System Voltage | 1500 V |
| Maximum Series Fuse Rating | 20 A |
Mechanical Characteristics
Construction Details
- Dimensions: 1756 x 1039 x 35 mm
- Weight: 20.3 kg
- Cell Type: Monocrystalline silicon 166 mm
- Cell Configuration: 120 (6 x 20) cells
- Front Glass: 3.2 mm tempered glass
- Frame: Anodized aluminium alloy
- Junction Box: IP68 rated with 3 bypass diodes
Certifications
- Safety and Quality Standards
- IEC 61215IEC 61730CEISO 9001ISO 14001ISO 45001SA 8000
Warranty
Standard Warranty
- 12-year product warranty
- 25-year linear performance warranty
- 98% power output in the first year
- 0.55% maximum annual degradation for years 2-25
