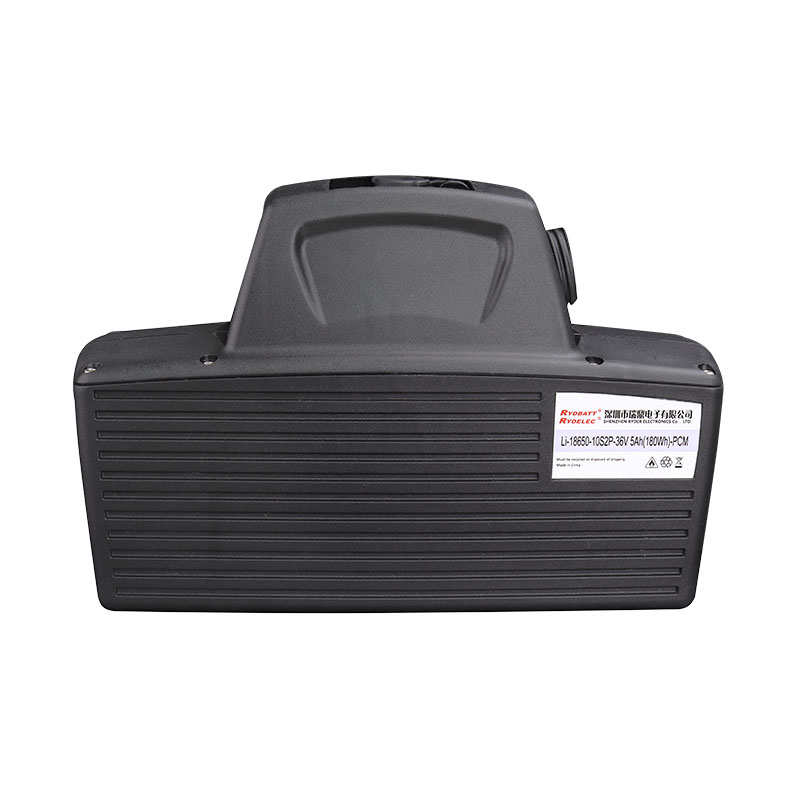

36V 5Ah Lithium-Ion Battery Pack for Electric Scissors
This lithium-ion battery pack is designed for 36V portable electric scissors. It features a 5Ah capacity, 180Wh output, and a 10S2P configuration with a protection circuit module.
Technical Specifications
Product Overview
High-Performance Power Solution
This 36V 5Ah lithium-ion battery pack is engineered specifically for electric scissors, delivering reliable power for demanding civil and professional applications. Featuring a 10S2P configuration with high-quality 18650 cells, it ensures consistent performance and extended operational time. The integrated Battery Management System (BMS) provides critical protection, enabling a continuous discharge of 20A and peak handling of 66A to support complex working conditions.
Technical Specifications
- Nominal Voltage
- 36 V
- Nominal Capacity
- 5 Ah
- Factory Voltage
- ≥40V
- Cell Configuration
- li-18650-10s2p
- Product Weight
- 1500 g
Performance Metrics
Key Performance Metrics
20 A
Continuous Discharge
66 A
BMS Protection Limit
Operating Environment
Operating Temperature
| Mode | Range |
|---|---|
| Charging | 0~45℃ |
| Discharging | -20~60℃ |
Features
Standards
GB/T 34570.2-2017
