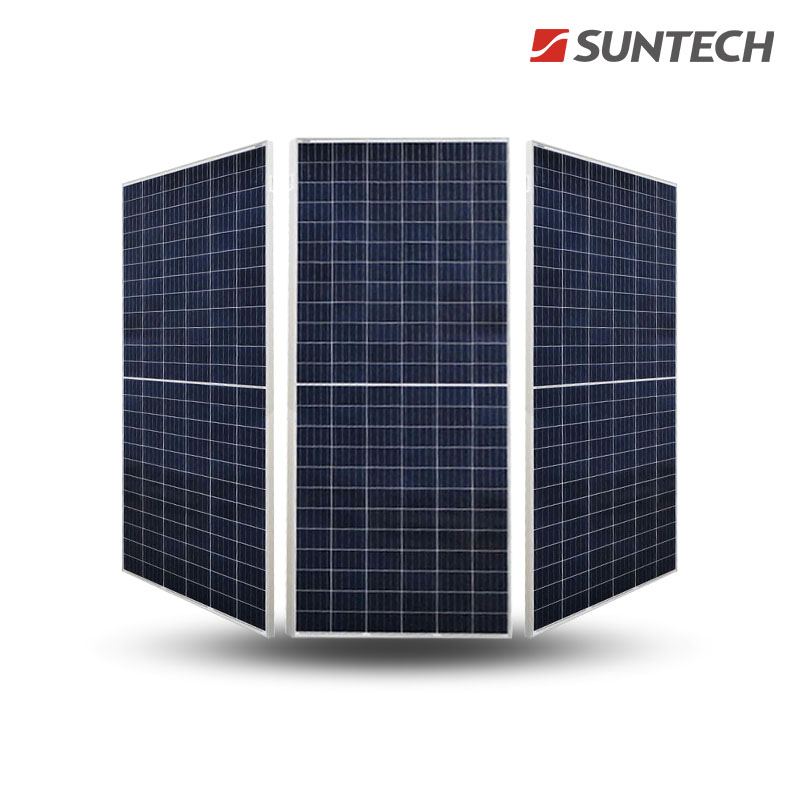

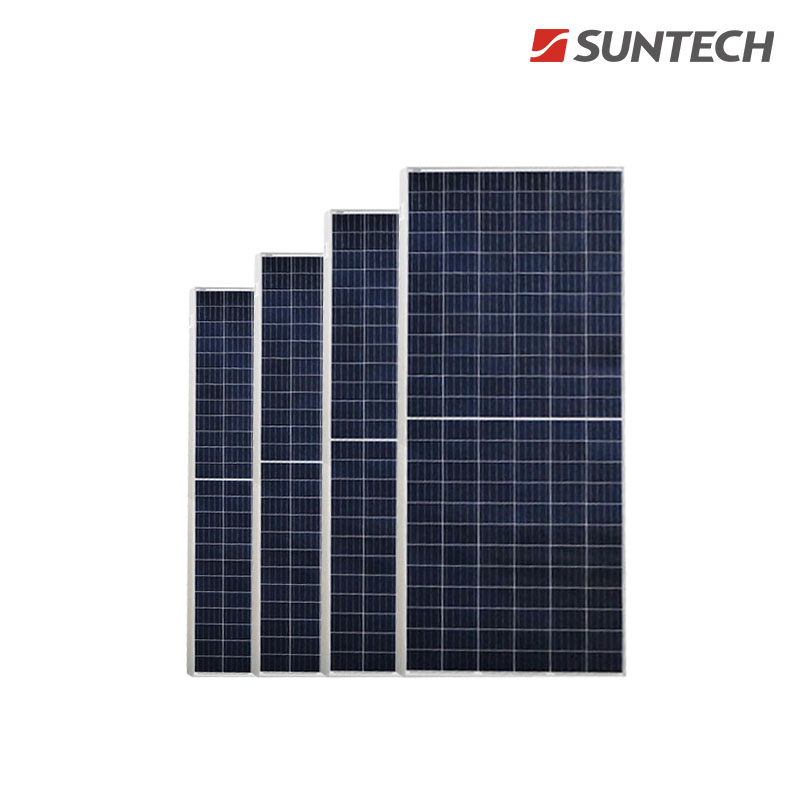

365W Polycrystalline Solar Panel
This 365W polycrystalline solar panel is designed for solar system applications. It features 5 busbar (5bb) solar cells for improved current collection and reduced resistive losses.
Technical Specifications
Product Overview
High-Efficiency 365W Polycrystalline Solution
This 365W polycrystalline solar module is designed for high-performance solar systems, featuring a 144-cell half-cut design that minimizes energy loss. Built to withstand harsh environmental conditions, it offers excellent weak light performance and high PID resistance, making it ideal for residential, commercial, and industrial installations. With a 25-year linear performance warranty and robust mechanical loading capabilities, this panel ensures reliable long-term energy production.
Key Performance Metrics
Key Performance Metrics
365 W
Max Power (Pmax)
17.9 %
Module Efficiency
5,400 Pa
Front Static Load
25 Years
Performance Warranty
Electrical Characteristics
Electrical Data (STC)
| Parameter | Value (at STC) |
|---|---|
| Maximum Power (Pmax) | 360 W |
| Optimum Operating Voltage (Vmp) | 38.3 V |
| Optimum Operating Current (Imp) | 9.40 A |
| Open Circuit Voltage (Voc) | 46.8 V |
| Short Circuit Current (Isc) | 9.80 A |
| Operating Module Temperature | -40 °C to +85 °C |
| Maximum System Voltage | 1000/1500 V DC |
Mechanical Design
Mechanical Characteristics
- Solar Cell: Polycrystalline silicon 158.75 mm
- Cell Layout: 144 (6 x 24) half-cut cells
- Front Glass: 3.2 mm tempered glass
- Frame: Anodized aluminium alloy
- Junction Box: IP68 rated with 3 bypass diodes
- Output Cables: 4.0 mm² photovoltaic technology cable
- Connectors: MC4 compatible / MC4 EVO2
Physical Dimensions
- Dimensions
- 2008 x 1002 x 35 mm
- Weight
- 22.5 kg

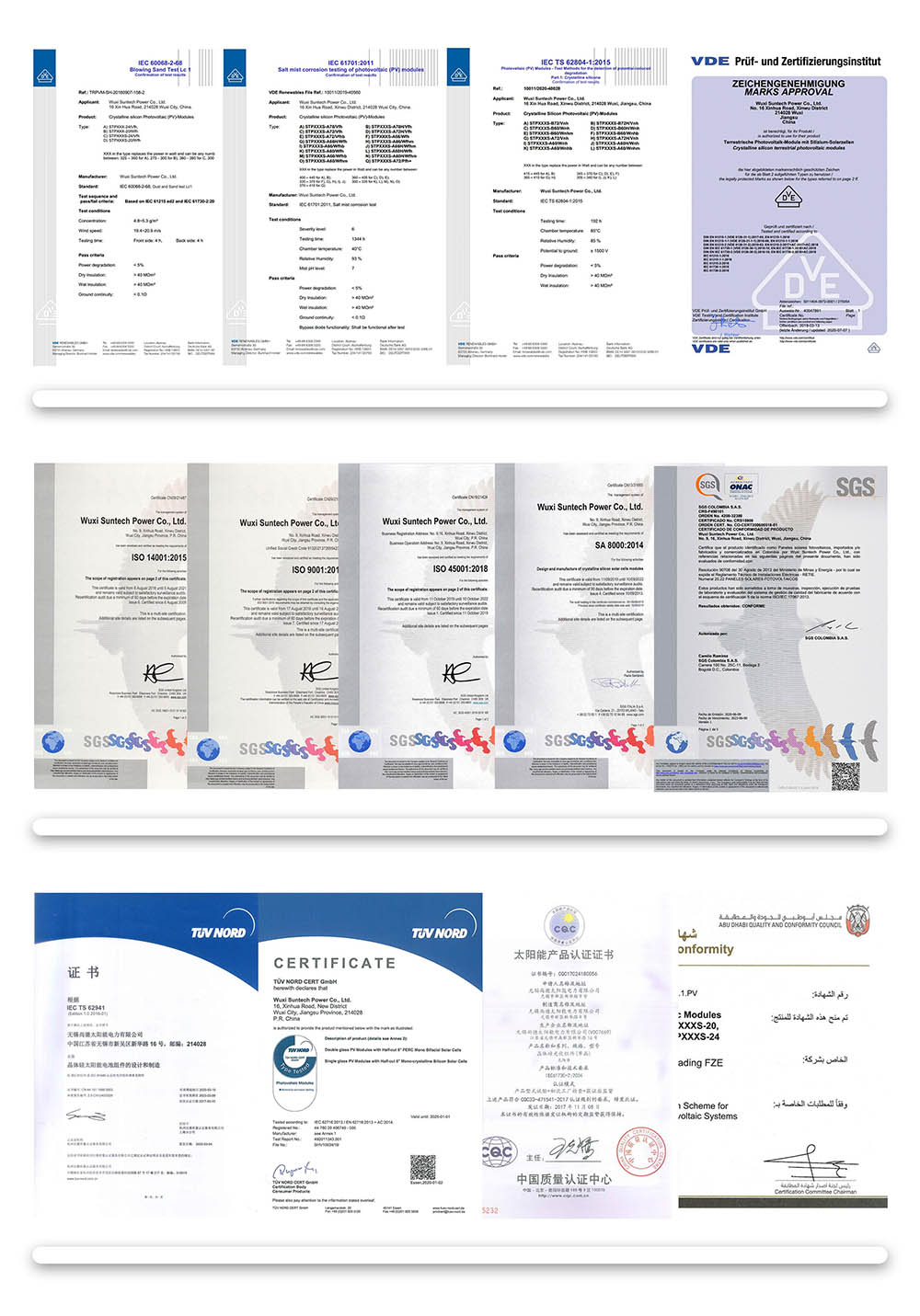

Certifications & Standards
- Compliance & Certifications
- IEC 61215IEC 61730CEISO 9001:2008ISO 14001:2004IEC 61701 (Salt Mist)IEC 62716 (Ammonia)PID Resistant

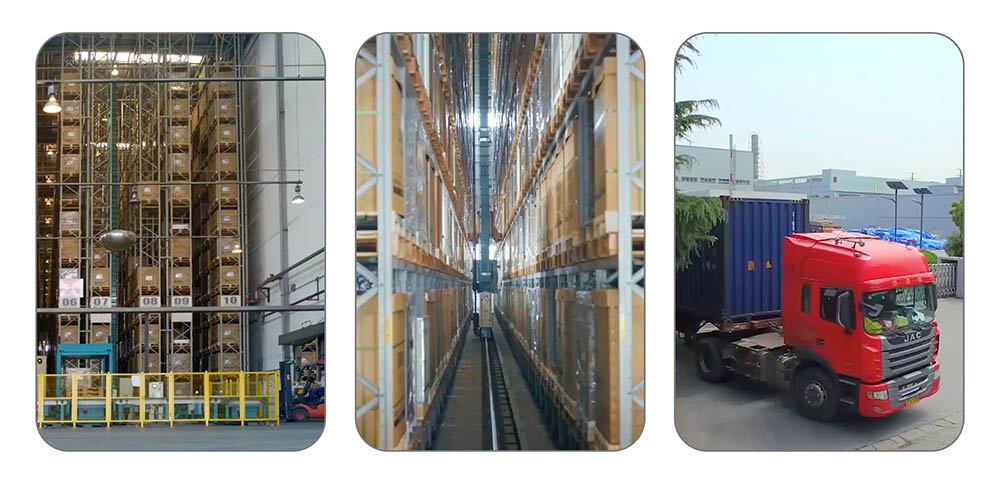

Logistics & Packaging
Packaging Configuration (40'HC)
| Unit | Quantity |
|---|---|
| Pieces per Pallet | 31 |
| Pallets per 40'HC Container | 22 |
| Total Pieces per 40'HC | 682 |
| Box Dimensions | 2038 x 1130 x 1173 mm |
| Box Weight | 745 kg |
Warranty
Warranty Terms
- 12-year product warranty
- 25-year linear performance warranty
- 97.5% power output in the first year
- Max 0.7% annual degradation from years 2 to 25
