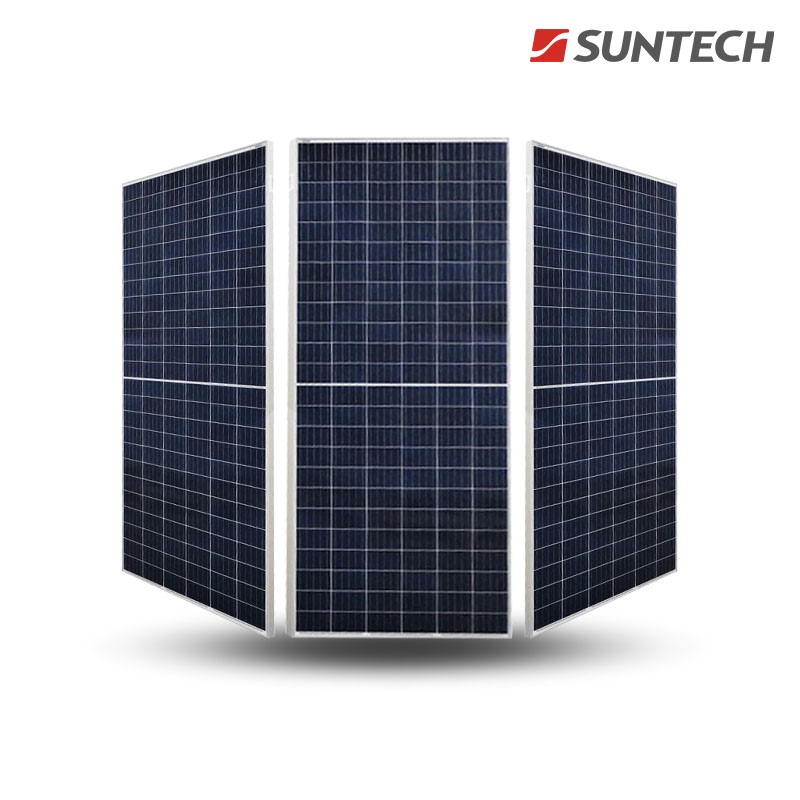

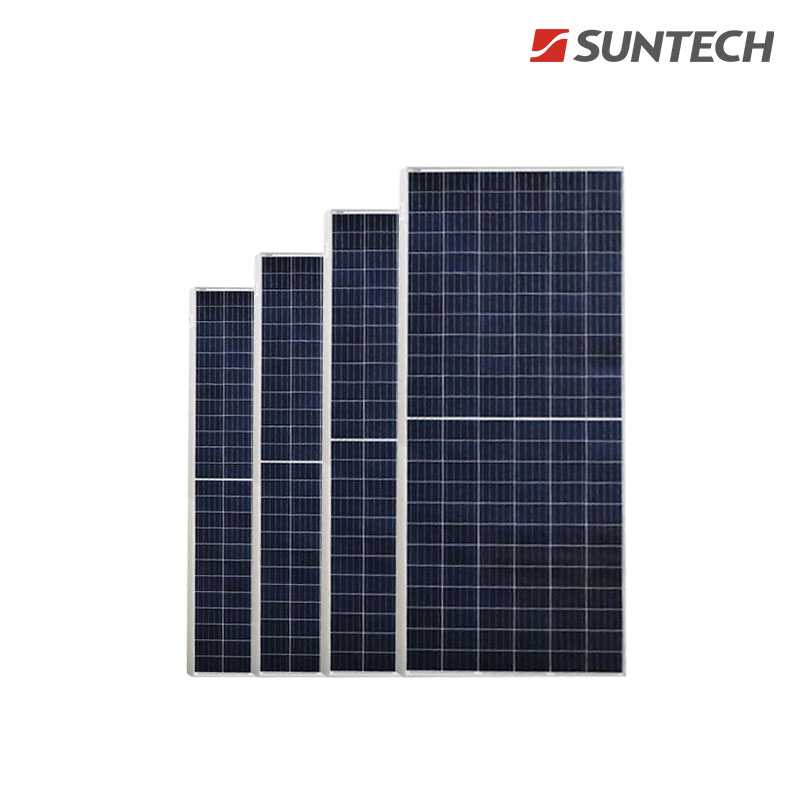

360W Polycrystalline Solar Panel for Solar Energy Systems
This 360W polycrystalline solar panel is designed for solar energy systems. It features 5 busbar (5bb) solar cells for improved current collection and enhanced performance.
Technical Specifications
Overview

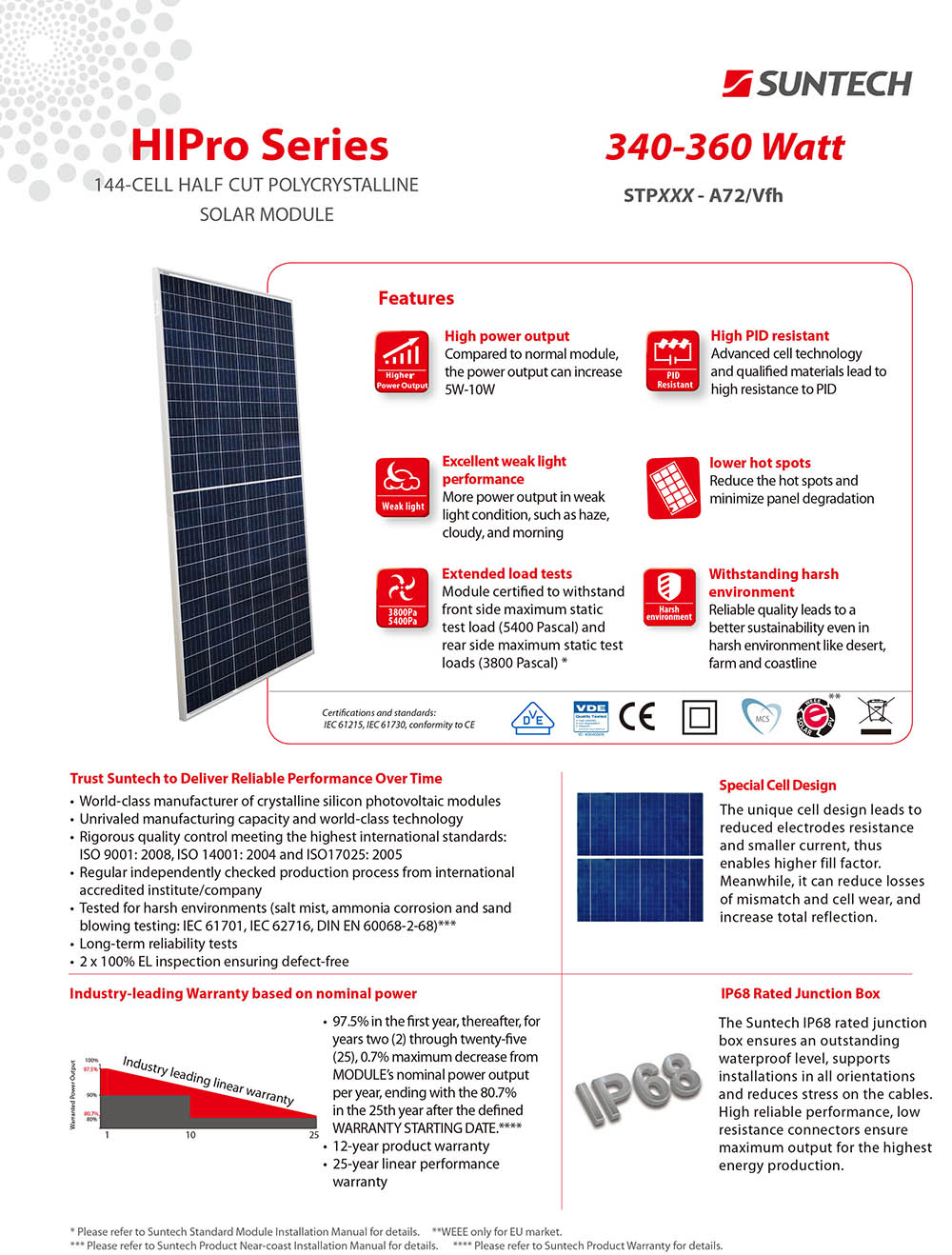

High-Efficiency Polycrystalline Solar Solution
This 360W polycrystalline solar module utilizes advanced 5-busbar (5bb) technology and a 144-cell half-cut design to maximize power output and efficiency. Engineered for durability, it offers exceptional resistance to PID and maintains high performance even in weak light conditions such as haze or early morning. With a robust build certified for high snow and wind loads, it is an ideal choice for reliable energy production in residential, commercial, and industrial solar systems.
Key Performance Metrics
Performance Highlights
360 W
Max Power (Pmax)
17.9 %
Module Efficiency
5,400 Pa
Front Static Load
3,800 Pa
Rear Static Load
Electrical Characteristics (STC)
Electrical Data at Standard Test Conditions
| Parameter | Value |
|---|---|
| Maximum Power (Pmax) | 360 W |
| Optimum Operating Voltage (Vmp) | 38.3 V |
| Optimum Operating Current (Imp) | 9.40 A |
| Open Circuit Voltage (Voc) | 46.8 V |
| Short Circuit Current (Isc) | 9.80 A |
| Power Tolerance | 0/+5 W |
Mechanical Design
Mechanical Specifications
| Component | Details |
|---|---|
| Solar Cells | Polycrystalline silicon 158.75 mm |
| Cell Arrangement | 144 (6 x 24) |
| Dimensions | 2008 x 1002 x 35 mm |
| Weight | 22.5 kg |
| Front Glass | 3.2 mm tempered glass |
| Frame | Anodized aluminium alloy |
| Junction Box | IP68 rated (3 bypass diodes) |
| Connectors | MC4 compatible |
Environmental Resistance
Environmental Durability
- High PID resistance through advanced cell technology
- Salt mist and ammonia corrosion resistant
- Blowing sand resistant (IEC 60068-2-68)
- Operating temperature range: -40 °C to +85 °C
- Optimized for deserts, farms, and coastlines
Quality & Certifications
Compliance & Standards
IEC 61215IEC 61730CEVDEISO 9001ISO 14001ISO 45001SA 8000

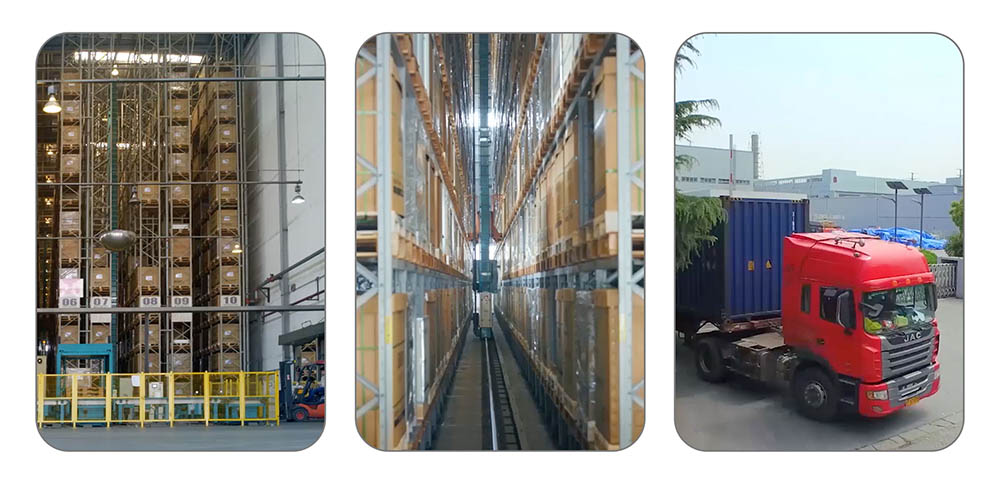

Logistics & Packaging
Shipping Configuration
| Container Type | Pieces per Pallet | Total Pieces |
|---|---|---|
| 20' GP | 31 | 155 |
| 40' HC | 31 | 682 |
Warranty
Warranty Coverage
- 12-year product warranty
- 25-year linear performance warranty
- 97.5% power output in the first year
- Maximum 0.7% annual degradation from years 2 to 25
