36 Series Brushless DC Motor
This is a brushless DC motor with a small form factor. It delivers high torque up to 100mN.m, a wide speed range, and high efficiency.
Technical Specifications
Overview
High-Efficiency 36 Series BLDC Motor
The 36 Series Brushless DC Motor is a compact and high-performance solution designed for applications requiring high torque up to 100mN.m and a wide speed range. Featuring a robust cylindrical design with a precision-engineered rotor and stator, this motor offers high efficiency and extended operational life. Its versatile mounting options and reliable power delivery make it ideal for professional-grade equipment and automated systems.
Key Performance Metrics
Key Performance Metrics
4,000 rpm
Rated Speed
24 V
Operating Voltage
0.1 Nm
Max Rated Torque
40 W
Max Rated Power
Technical Specifications
Electrical Specification by Model
| Model | Rated Power (W) | Rated Torque (Nm) | Rated Current (A) | Weight (Kg) | Length (mm) |
|---|---|---|---|---|---|
| 36DMW50-2440 | 20 | 0.05 | 1.3 | 0.2 | 50 |
| 36DMW60-2440 | 30 | 0.075 | 1.8 | 0.25 | 60 |
| 36DMW70-2440 | 40 | 0.1 | 2.3 | 0.3 | 70 |
General Specifications
Insulation Class
Class B
- Winding Type
- Star
- Hall Effect Angle
- 120 degree electrical angle
- Dielectric Strength
- 500VDC for one minute
- Shaft Run Out
- 0.025 mm
- Ambient Temperature
- -20°C to +40°C

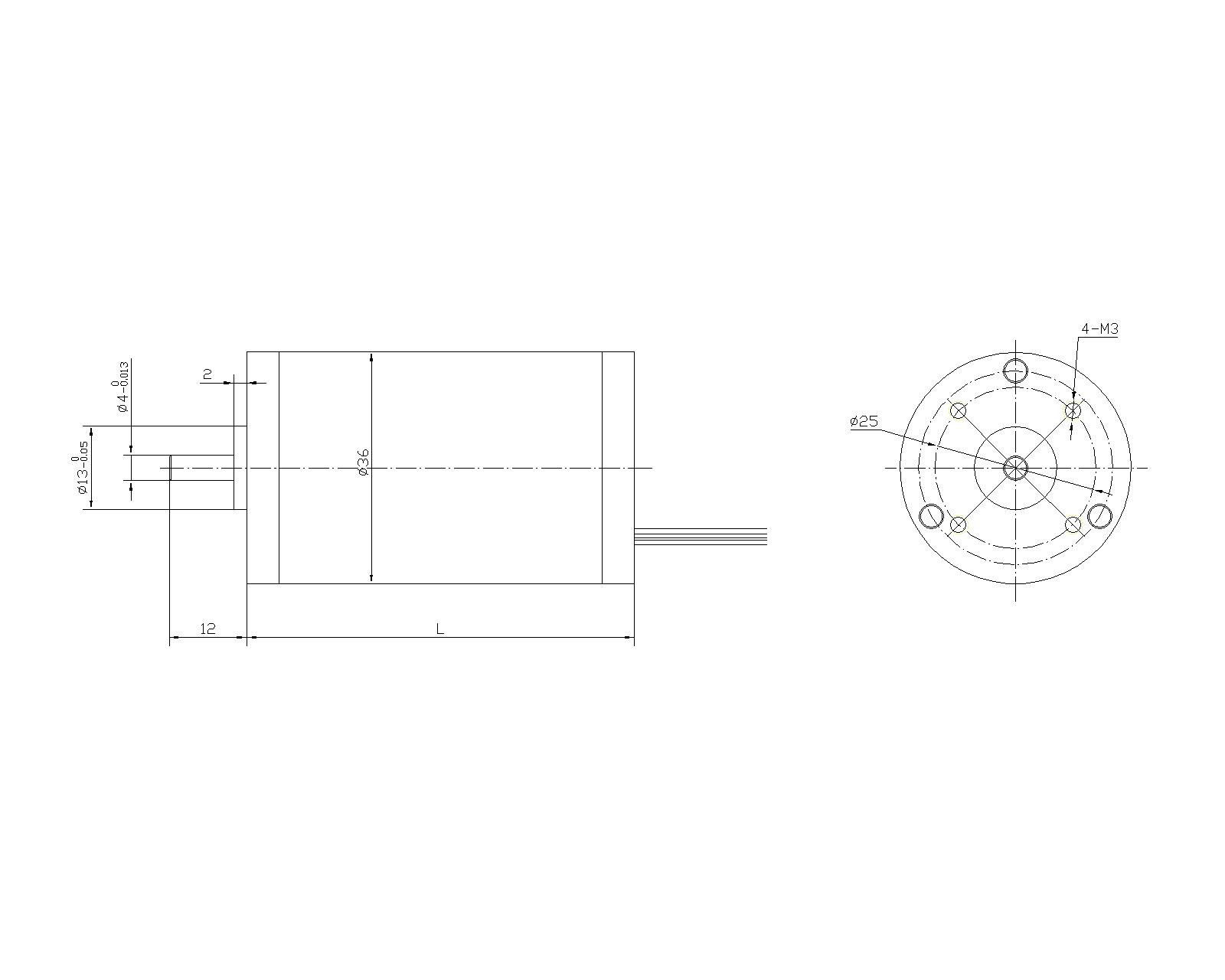

Mechanical Dimensions
- Motor Diameter
- 36 mm
- Mounting Flange
- Ø25 with 4-M3 threaded holes
Wiring Configuration
Lead Wire Functions
- Phase U (Red, 20AWG)
- Phase V (Yellow, 20AWG)
- Phase W (Black, 20AWG)
- VCC +5V (Red, 26AWG)
- Hall A (Blue, 26AWG)
- Hall B (Green, 26AWG)
- Hall C (White, 26AWG)
- GND (Black, 26AWG)
