Technical Specifications
Product Overview

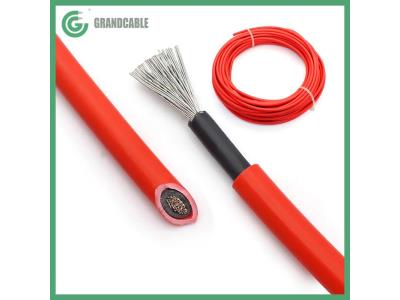

High-Performance DC Solar Cable
This H1Z2Z2-K certified DC solar cable is engineered for reliable power transmission in photovoltaic systems. Designed with a 35mm² cross-section and flexible tinned copper conductors, it offers excellent durability in both indoor and outdoor environments. The halogen-free, flame-retardant construction ensures safety and compliance with international standards, making it suitable for industrial, agricultural, and direct burial applications.
Technical Specifications
- Conductor Material
- Electrolytic tinned copper
- Conductor Class
- Class 5 (finely stranded)
- Cross-sectional Area
- 35 mm2
- Nominal Voltage
- 1.5/1.5 kV DC
- Standards Compliance
- EN 50618IEC 60228TUV Certified
Construction & Materials
Available Colors
RedBlack
- Insulation Material
- Halogen-free cross-linked compound
- Sheath Material
- Halogen-free cross-linked, flame retardant compound
Installation & Application
Suitable Environments
- Indoor and Outdoor
- Industrial fields
- Agricultural fields
- Explosion hazard areas
- Direct burial
- Protection Class
- Class II
Commercial Terms
- Minimum Order Quantity
- 1000 meters
- Sample Availability
- Yes
