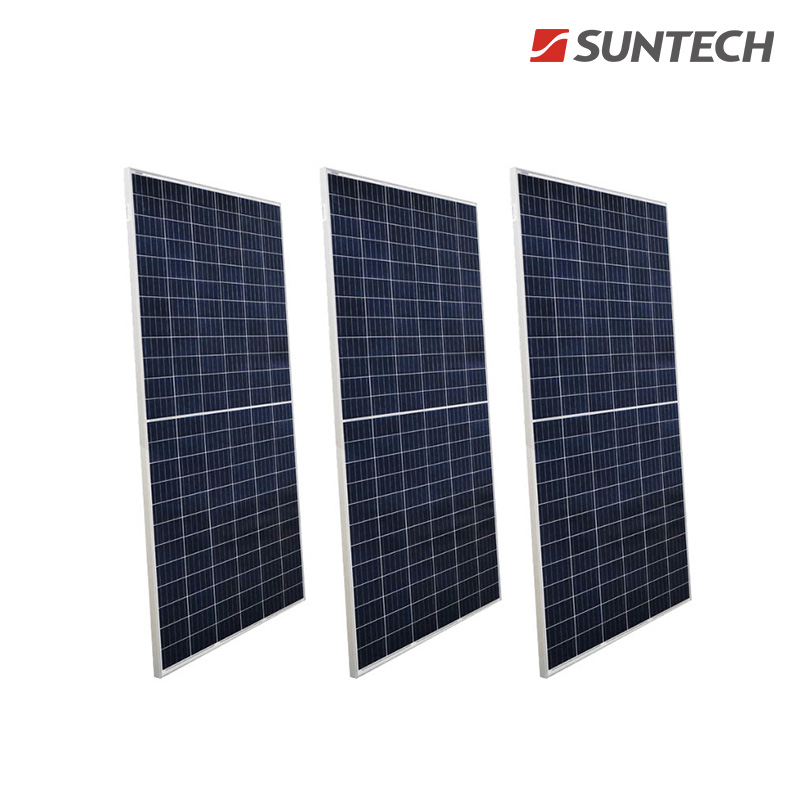

350W Poly Half-Cell Solar Panel
This 350W polycrystalline solar panel utilizes half-cell technology to improve performance and reduce shading losses. It is engineered for durability and reliable power generation in diverse conditions.
Technical Specifications
Product Overview

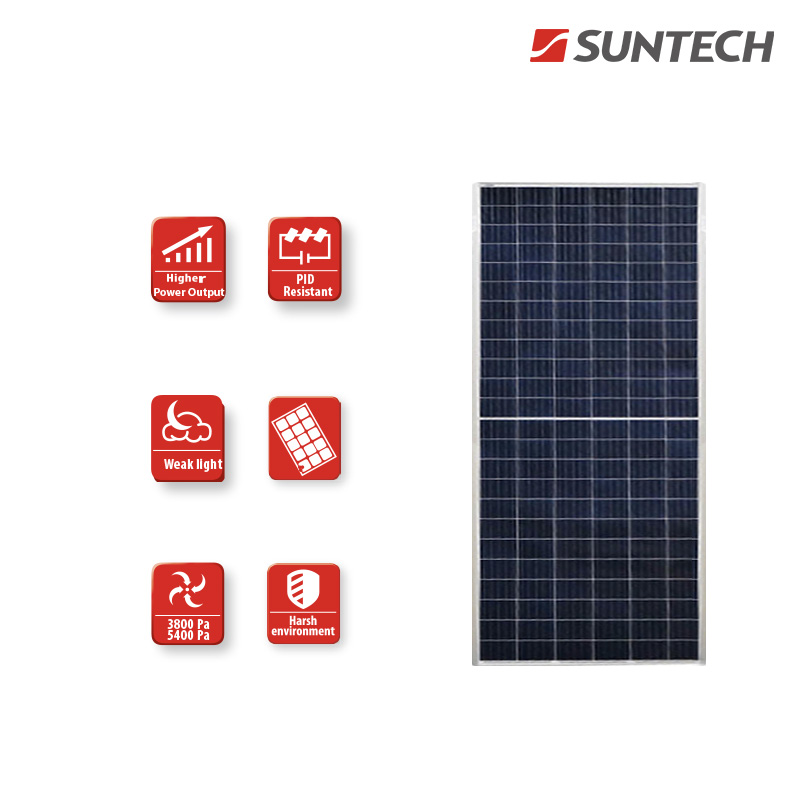

High-Efficiency Poly Half-Cell Module
This high-performance polycrystalline solar panel utilizes advanced half-cell technology to significantly improve energy output and reduce electrode resistance. Engineered for durability, it excels in harsh environments including deserts and coastal regions while maintaining high PID resistance. With a robust design capable of withstanding heavy static loads, this module provides consistent, reliable power generation for both residential and commercial solar installations.
Electrical Performance
Performance Metrics (STC)
| Model | Max Power (Pmax) | Efficiency |
|---|---|---|
| STP360-72/Vfh | 360W | 17.9% |
| STP355-72/Vfh | 355W | 17.6% |
| STP350-72/Vfh | 350W | 17.4% |
System Limits
1,500 V DC
Max System Voltage
20 A
Max Series Fuse
Mechanical Characteristics
Physical Properties
22.5 kg
Weight
144 pcs
Number of Cells
Build Details
- Dimensions: 2008 x 1002 x 35 mm
- 3.2mm Tempered Glass
- Anodized Aluminium Alloy Frame
- IP68 Rated Junction Box with 3 bypass diodes
- MC4 Compatible Connectors
Environmental Durability
Static Load Capacity
5,400 Pa
Front Side Max Load
3,800 Pa
Rear Side Max Load
Temperature Coefficients
- Pmax: -0.38%/°C
- Voc: -0.321%/°C
- Isc: 0.050%/°C
Warranty & Compliance
Warranty Coverage
- 12-year product warranty
- 25-year linear performance warranty
- 97.5% power output in first year
- 80.7% power output at 25 years
- Standards & Certifications
- IEC 61215IEC 61730IEC 61701IEC 62716CEISO 9001ISO 14001
